ANT-20/ANT-20E
1.5
C-12 mapping (2 Mbit/s in STM-1, AU-3/AU-4)
Option: BN 3035/90.01

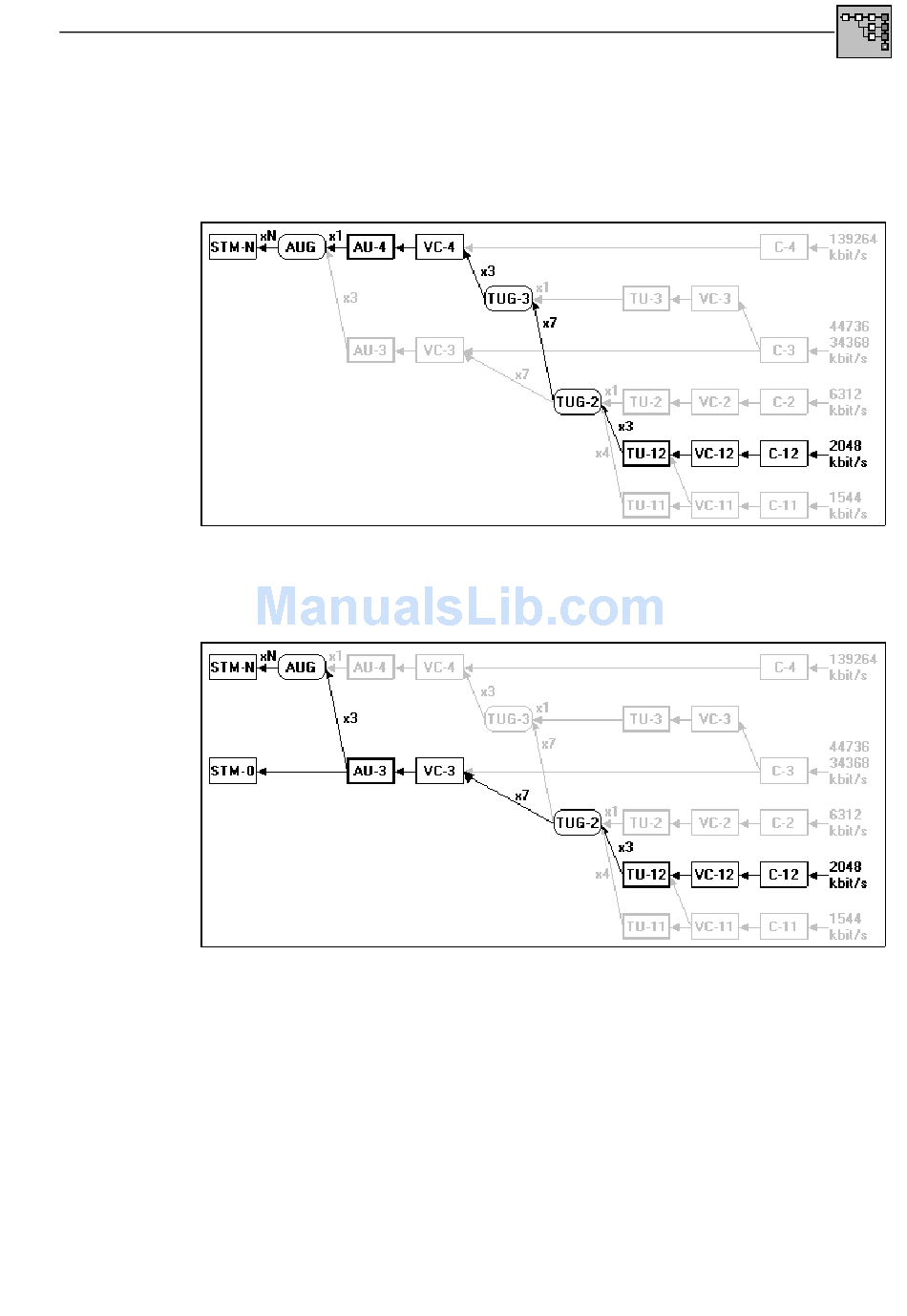

Mapping structure: AU-4
Fig. S-9
Mapping structure: AU-3
Fig. S-10
Mapping method
The following modes are available:
• Asynchronous mode
• Byte-synchronous mode (floating)
Specifications
Mapping structure: 2 Mbit/s → C-12 → AU-4 → STM-1
Mapping structure: 2 Mbit/s → C-12 → AU-3 → STM-1
Mapping structure: 2 Mbit/s → C-12 → AU-3 → STM-0; option 3035/98.13 required
STM-1 mapping
S-15
