Pointer Action Generation - Wavetek ANT-20 Operating Manual

STM-1 mapping
1.4.4

Pointer action generation

Stimulation
Pointer sequences
On all pointer levels to ITU-T G.783
T1, T4: 0.25 ms to 600 s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (2 to 4800000 frames)
T2, T3: 0.25 ms to 10 s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (2 to 80000 frames)
T5: 0 ms to 600 s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (0 to 4800000 frames)
n: 1 to 2000
Fig. S-1
n pointers
Fig. S-2
Fig. S-3
Fig. S-4
S-6

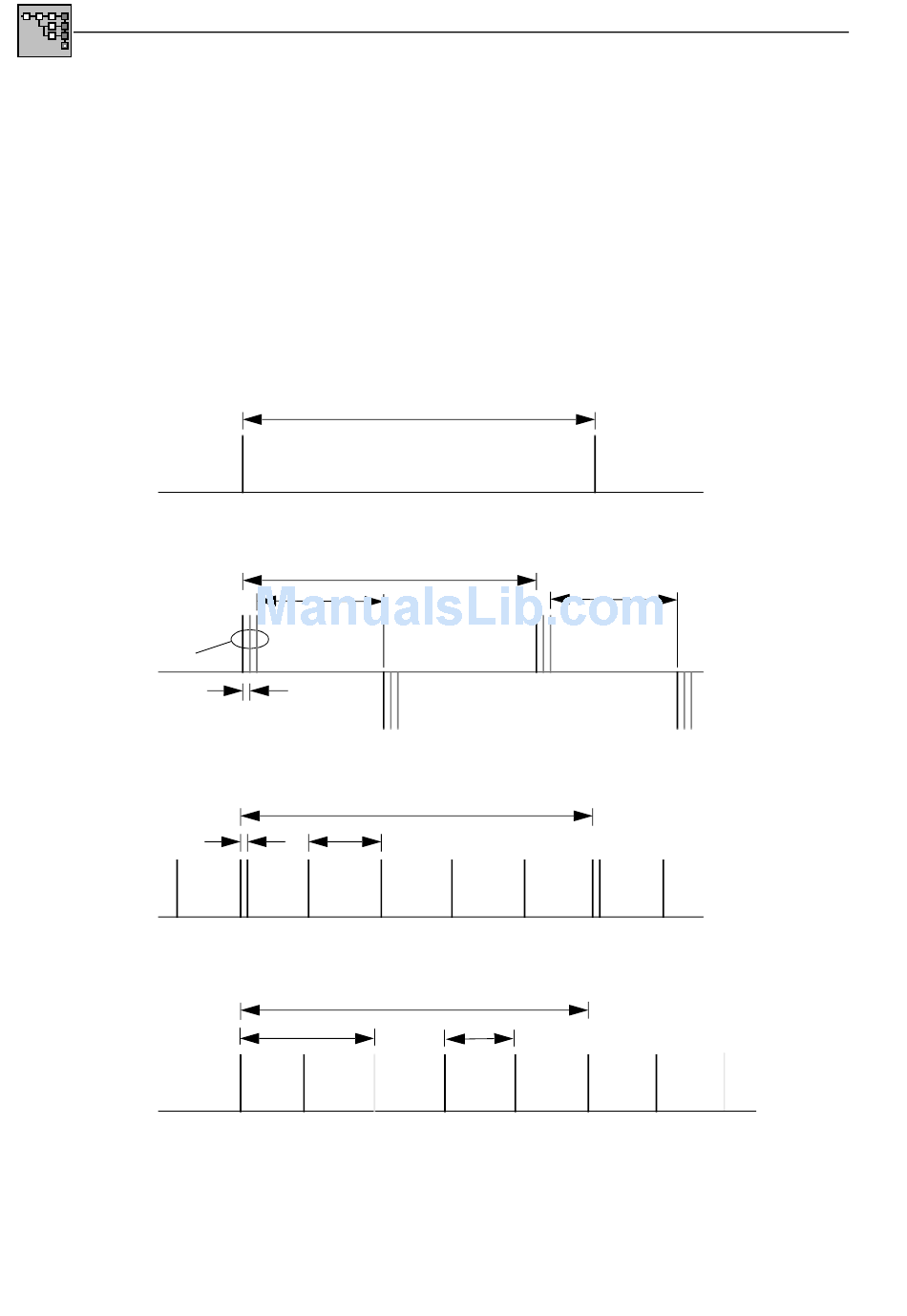

Perodic (single/multiple) pointers with identical polarity
T1
T2
Periodic (single/multiple) pointers with different polarity
T2
T3
Periodic pointers with one double pointer
T5
Periodic pointers with one missing pointer
T4
T4
T4
T4
T2
ANT-20/ANT-20E
T1
Specifications
