System Overview

Shure QLX-D™ Digital Wireless delivers stunning performance with 24-bit digital audio clarity in a refined, compact design. Combining innovative fea-
tures with simplified setup and easy operation, QLX-D offers outstanding wireless functionality for demanding live sound applications.
Digital signal processing enables QLX-D to capture finely detailed audio over an extended 20 Hz to 20 KHz frequency range with virtually flat response
and extremely wide dynamic range. Featuring all-metal construction, QLX-D systems come in a variety of options, from handheld transmitters with
choice of legendary Shure microphone capsules to bodypack systems with headset or lavalier microphones.
QLX-D is incredibly RF spectrum efficient, allowing up to 17 systems to operate simultaneously in a standard 6 MHz TV band (22 channels in 8 MHz TV
band), and employs automatic channel scanning to quickly find open frequencies. Multiple systems can be networked together over Ethernet, enabling
streamlined channel scanning across all receivers in a system and compatibility with Shure Wireless Workbench® control software for advanced fre-
quency coordination. AES 256-bit encryption can be enabled for applications requiring secure transmission.
Advanced lithium-ion rechargeablity options provide dramatic long-term cost savings and extended transmitter battery life when compared to alkaline
batteries, with built-in battery metering that reports remaining runtime in hours and minutes.
Stunning in its performance, QLX-D delivers the latest innovations in wireless technology excellence from Shure.
Features
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range
• 120 dB dynamic range
• 64 MHz tuning bandwidth (region dependent)
• 60 available channels per frequency band (region dependent)
• Up to 17 compatible systems per 6MHz TV band; 22 systems per
8 MHz band
• Easy pairing of transmitters and receivers over IR scan and sync
• Automatic channel scan

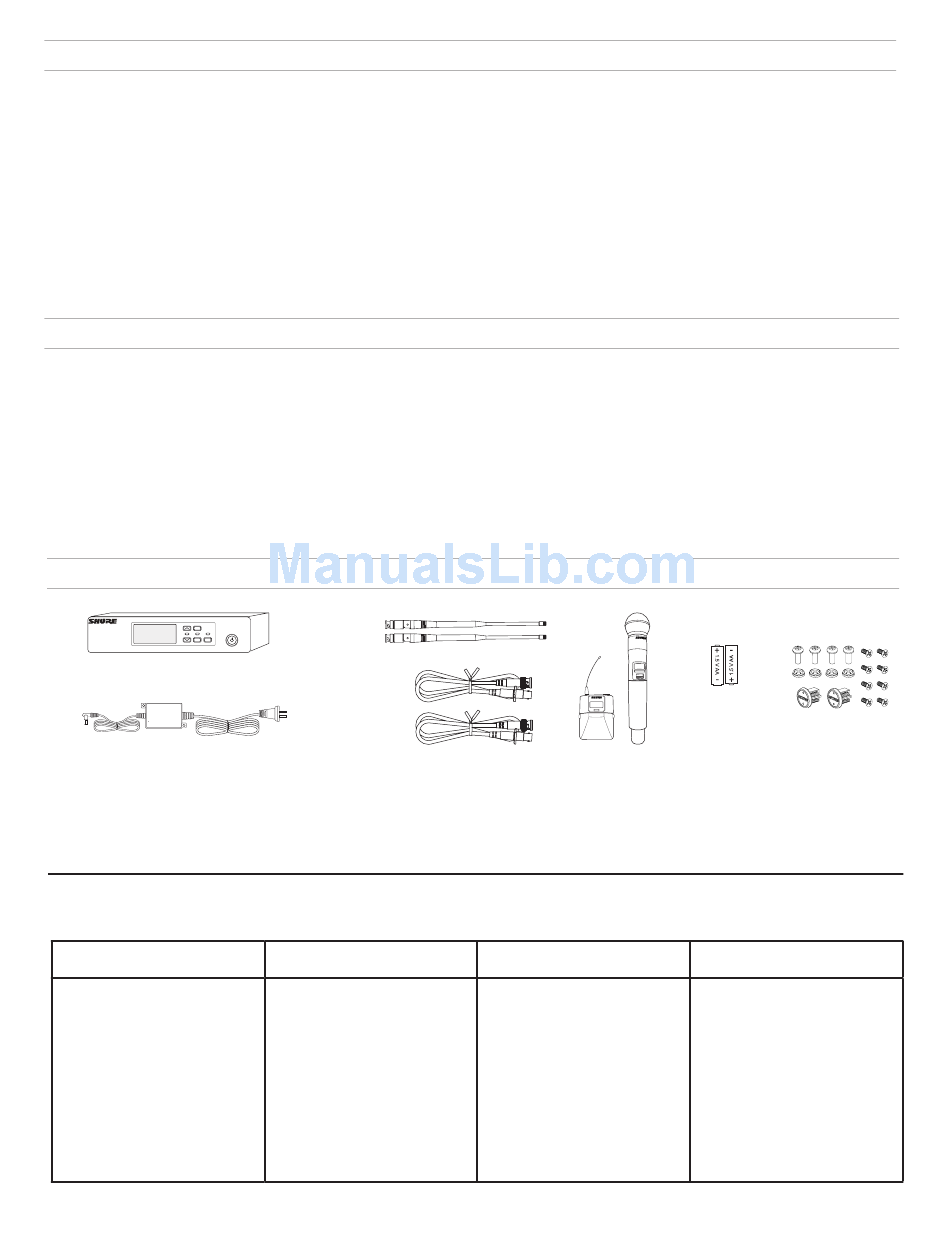

System Components

①
menu
enter sync
②
① QLXD4 Receiver
② PS23 Power Supply

Model Variations

Additional components are added to the basic system components listed above to create systems designed to meet specific performance needs.
QLXD2 Handheld Transmitter
Includes QLXD2 Handheld, avail-
able with any of the following mi-
crophone cartridges:
• SM58
• Beta 58A
• SM86
• Beta 87A
• SM87A
• Beta 87C
• KSM9
• KSM9HS (black)
Microphone Clip
Zipper Bag
4
③
④
③ 1/2 Wave Antennas (2)
④ 2 ft. BNC Cables (2)
QLXD1 Bodypack Guitar System
Includes QLXD1 bodypack
transmitter
Premium instrument cable
Zipper Bag
Do Not Duplicate or Redistribute
• Ethernet networking for multiple receiver systems
• Network channel scanning configures open frequencies for networked
receivers
• Compatible with Shure Wireless Workbench 6 control software
• 256-bit AES encryption for secure transmission
• Simple and easy-to-use interface
• Compatible with external control systems such as AMX or Crestron
• Professional-grade all-metal construction
• Compatible with AA batteries or Shure SB900 rechargeable Lithium-ion
battery
⑤
ULXD2
on
⑤ Choice of QLXD1 Bodypack Transmitter or QLXD2
Handheld Transmitter
⑥ AA Alkaline Batteries (not included in Argentina)
⑦ Rackmount Hardware
QLXD1 Bodypack Headworn or
Lavalier
Includes QLXD1 bodypack, avail-
able with any of the following mi-
crophone cartridges:
• Beta 98H/C
• WL93
• WL183
• WL184
• WL185
• MX150 (omni)
• MX150 (cardioid)
• MX153 (black or tan)
• SM35
Zipper Bag
⑥
⑦
Bodypack and Handheld Combo
System
• QLXD1 bodypack transmitter with
WL185 Microflex cardioid lavalier
microphone
• QLXD2 handheld transmitter with
Shure SM58 microphone cartridge
• Zipper Bag (2)
