VectorStar
MN469xC Series
Multiport Test Set
VectorStar MN4694C, K Connectors, for the MS4642A/B or MS4644A/B VNA
VectorStar MN4697C, V Connectors, for the MS4645A/B or MS4647A/B VNA
Anritsu Company
Part Number: 10410-00738
490 Jarvis Drive
Revision: C
Morgan Hill, CA 95037-2809
Published: June 2017
USA
Copyright 2017 Anritsu Company
http://www.anritsu.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Anritsu VectorStar MN469xC Series
Summary of Contents for Anritsu VectorStar MN469xC Series

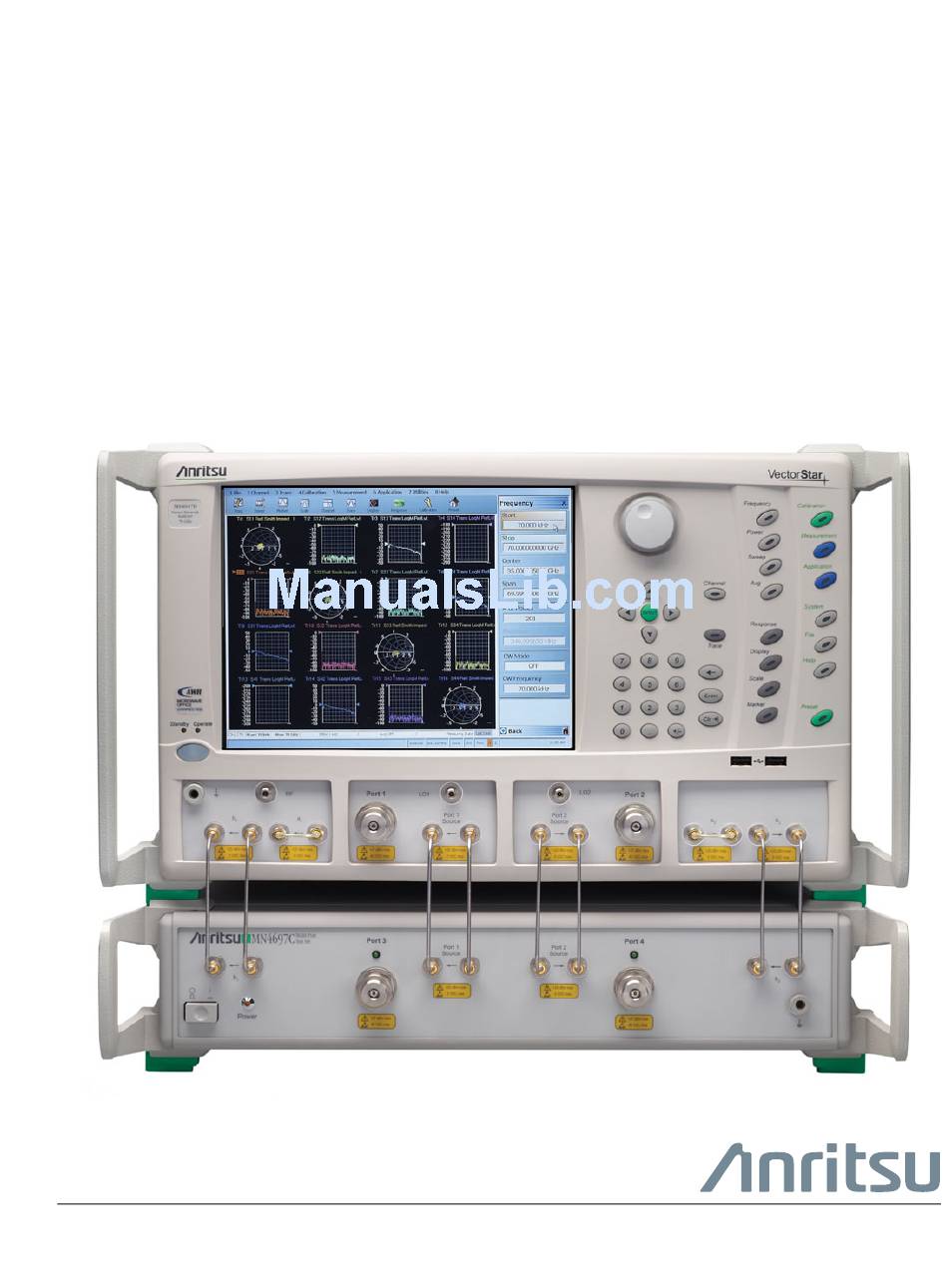

- Page 1 VectorStar MN4694C, K Connectors, for the MS4642A/B or MS4644A/B VNA VectorStar MN4697C, V Connectors, for the MS4645A/B or MS4647A/B VNA Anritsu Company Part Number: 10410-00738 490 Jarvis Drive Revision: C Morgan Hill, CA 95037-2809 Published: June 2017 Copyright 2017 Anritsu Company http://www.anritsu.com...
- Page 2 VectorStar™ MN469xC Series Multiport VNA Test Set Installation Guide, PN: 10410-00728, found on the CD-ROM or at the Anritsu web site (www.anritsu.com). Preparation Caution An MS464xA/B VNA unit is heavy.
-
Page 3: System Connections
2. System Connections System Connections The figure below shows the front panel connections between the Test Set and VNA. Make the semi-rigid cable connections as shown in Figure Figure 2, and in Table Before installing the test set in its operating environment, ensure that the airflow hole pattern at the Note right side of the instrument is clear. -
Page 4: Rear Panel Connections
2. System Connections Rear Panel Connections 1. Connect the GPIB cable between the VNA Rear Panel Dedicated GPIB connector and the Test Set IEEE 488.2 GPIB connector as shown in Figure 2. On the VNA rear panel, remove and set aside the eight SMA (m-m) loops. 3. - Page 5 2. System Connections Table 1. MN469xC Multiport Semi-Rigid Cable Interconnect Part Numbers and Locations (1 of 2) Index Part Numbers Description/Torque Connection From Connection To Front Panel Connections VNA port labeled: MN469xC port labeled: b1 (In) b1 (In) VNA port labeled: MN469xC port labeled: b1 (Out) b1 (Out)
- Page 6 2. System Connections Table 1. MN469xC Multiport Semi-Rigid Cable Interconnect Part Numbers and Locations (2 of 2) Index Part Numbers Description/Torque Connection From Connection To SMA male-male semi-rigid MN469xC port labeled: MS464xB port labeled: Tighten using an 8 mm (5/16 in) 3-62112-81 TO VNA Port 1 Src torque end wrench set to 0.9 N·m...
-
Page 7: Rear Panel Dip Switch Gpib Address Setting
3. Rear Panel DIP Switch GPIB Address Setting Rear Panel DIP Switch GPIB Address Setting The MN469xC Series Test Set GPIB address must match the GPIB address set on the VNA and is set on the Test Set by rear panel DIP switches. The factory default GPIB address is 16 (where Switch 1 = ON or up and all other switches OFF or down). - Page 8 Anritsu Company 490 Jarvis Drive Anritsu utilizes recycled paper and environmentally conscious inks and toner. Morgan Hill, CA 95037-2809 http://www.anritsu.com...
