Quick Start Guide
VectorStar™ MN4690B Series
Multiport VNA Test Set
VectorStar MN4694B, K Connectors for the MS4642A or MS4644A VNA
VectorStar MN4697B, V Connectors for the MS4645A or MS4647A VNA
This quick start guide provides a brief overview of the MN4690B Multiport VNA System assembly. Refer to the
VectorStar™ MN4690B Series Multiport VNA Test Set Installation Guide, PN: 10410-00290, found on the
CD-ROM, for important safety and compliance information and for more details about the assembly,
configuration, setup, and initial equipment test.
1.
Installing the Instruments

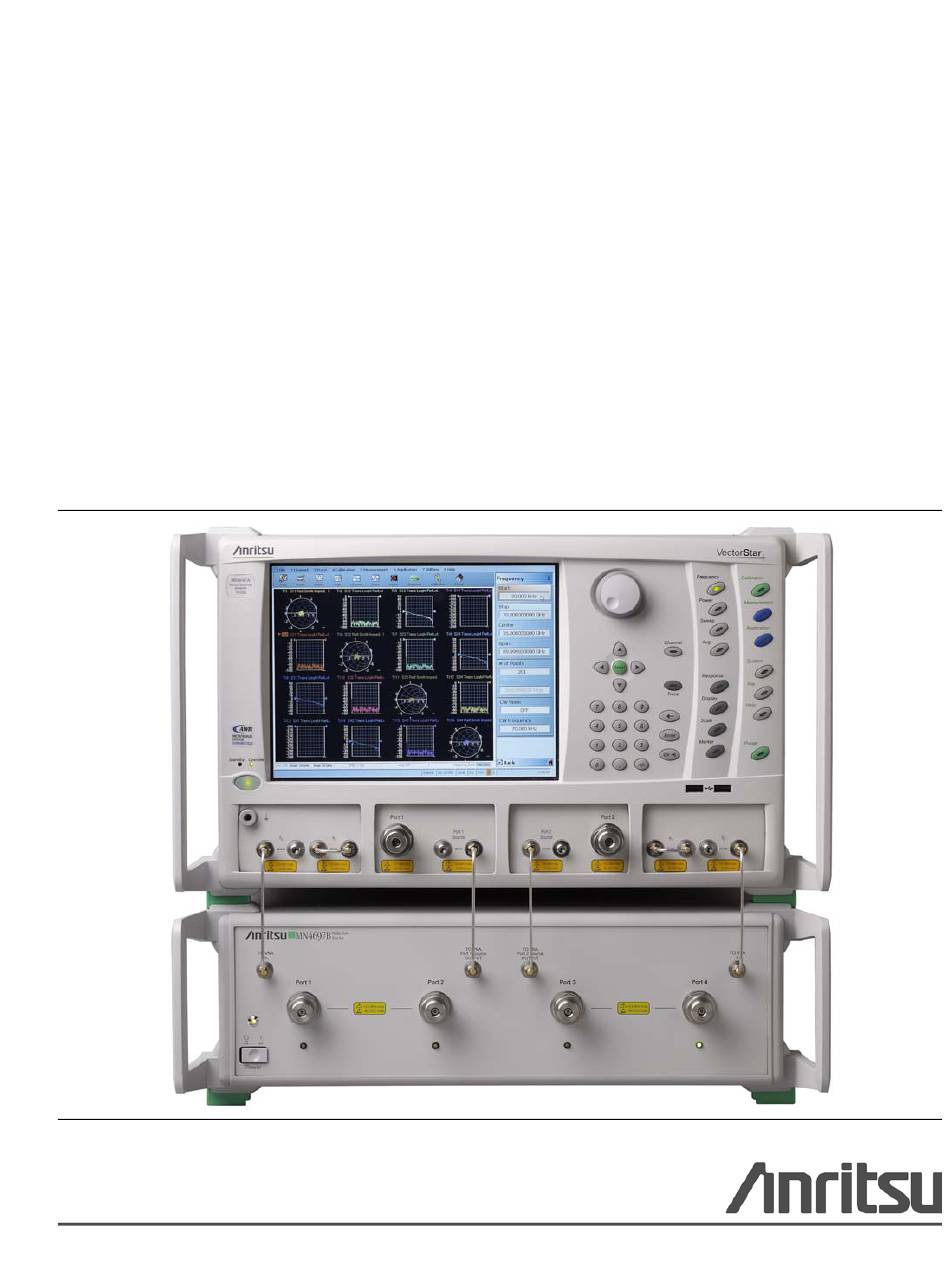

Figure 1.

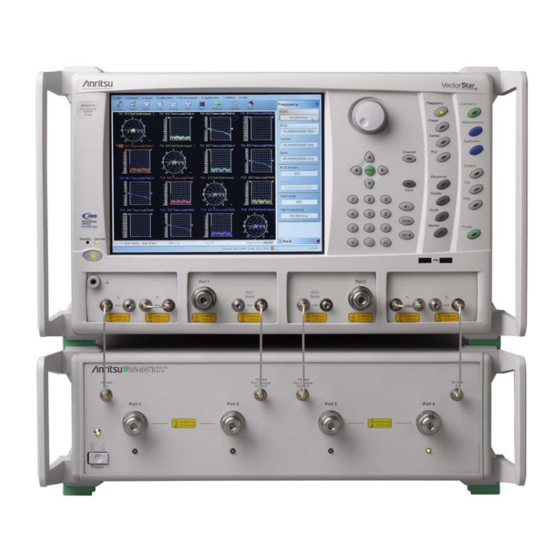

MS4647A VNA and MN4697B Test Set System Overview
Anritsu Company
Part Number: 10410-00290
490 Jarvis Drive
Revision: A
Morgan Hill, CA 95037-2809
Published: October 2009
USA
Copyright 2007-2009 Anritsu Company
Advertisement
Table of Contents
Related Manuals for Anritsu VectorStar MN4690B Series
Summary of Contents for Anritsu VectorStar MN4690B Series
- Page 1 Installing the Instruments Figure 1. MS4647A VNA and MN4697B Test Set System Overview Anritsu Company Part Number: 10410-00290 490 Jarvis Drive Revision: A Morgan Hill, CA 95037-2809 Published: October 2009 Copyright 2007-2009 Anritsu Company...
- Page 2 Connecting the Front Panel Cabling The illustration below shows the front panel connections between the Test Set and VNA. Frequency Calibration Power Measurement Sweep Application Channel System Response File Trace Display Help Scale Marker Preset Standby Operate ALL PORTS: CAUTION +27 dBm MAX AVOID STATIC DISCHARGE To VNA...
- Page 3 Figure 3. Rear Panel Cabling 1. Connect a standard one meter GPIB cable — Anritsu PN: 2100-1 shipped with the test set — using the VNA rear panel Dedicated GPIB connector to the Test Set GPIB connector as shown above.
- Page 4 GPIB Address Settings The MN4690B Series Test Set GPIB address must match the GPIB address set on the VNA and is set on the Test Set by rear panel Dual Inline Package (DIP) switches. The factory default GPIB address is 16 (where Switch 1 = ON or up and all other switches OFF or down).
