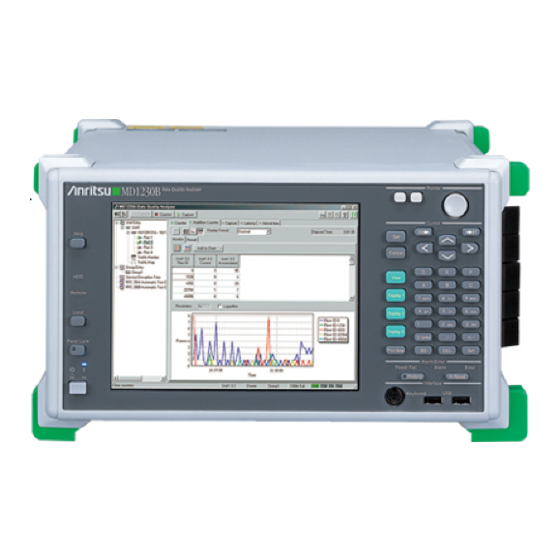

MD1230B-26
PPPoE
Operation Manual
Second Edition
• For safety and warning information, please read this
manual before attempting to use the equipment.
• Additional safety and warning information is provided
within the MD1230B Data Quality Analyzer Operation
Manual. Please also refer to this document before
using the equipment.
• Keep this manual with the equipment.
ANRITSU CORPORATION
Document No.: M-W2906AE-2.0
