4.3.1 V
IEW
In this section the test selected is displayed.

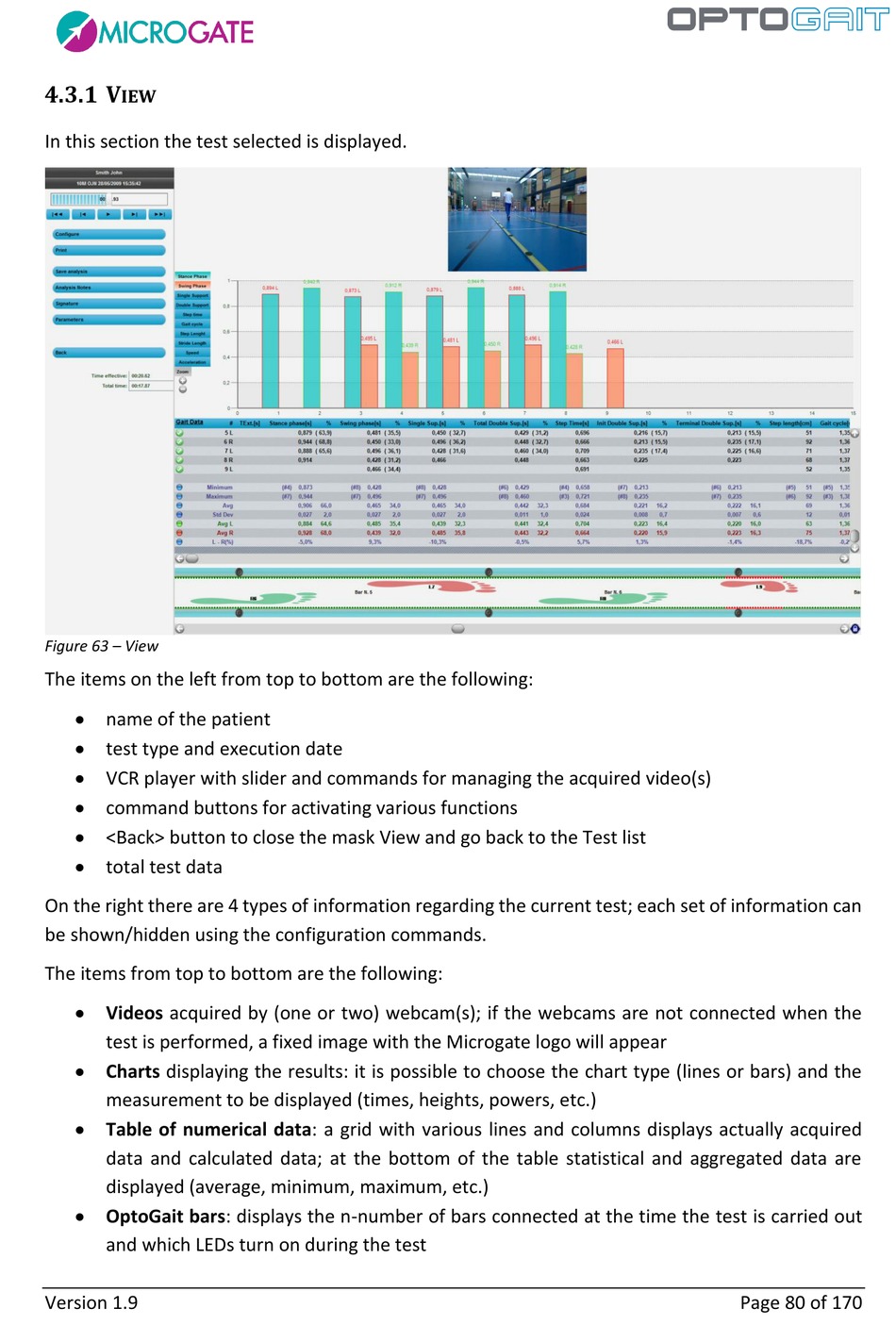

Figure 63 – View
The items on the left from top to bottom are the following:
 name of the patient
 test type and execution date
 VCR player with slider and commands for managing the acquired video(s)
 command buttons for activating various functions
 <Back> button to close the mask View and go back to the Test list
 total test data
On the right there are 4 types of information regarding the current test; each set of information can
be shown/hidden using the configuration commands.
The items from top to bottom are the following:
 Videos acquired by (one or two) webcam(s); if the webcams are not connected when the
test is performed, a fixed image with the Microgate logo will appear
 Charts displaying the results: it is possible to choose the chart type (lines or bars) and the
measurement to be displayed (times, heights, powers, etc.)
 Table of numerical data: a grid with various lines and columns displays actually acquired
data and calculated data; at the bottom of the table statistical and aggregated data are
displayed (average, minimum, maximum, etc.)
 OptoGait bars: displays the n-number of bars connected at the time the test is carried out
and which LEDs turn on during the test
Version 1.9 Page 80 of 170
