A range to be analysed has been set and the two tests will be synchronized on the point of the
yellow marker (i.e., when the two patients begin the test).
Another use of the <Synchro> button is to synchronize the two tests on a precise instant (e.g. 10
seconds after the beginning of the test). Set the yellow marker at 10 seconds for both tests; set the
start (with <Set Start>) of the Red Test at 6 seconds and of the Blue Test at 8 seconds. Pressing the
play button will play the Red Test only until the 8 seconds are over. At that moment the Blue Test
will start and the two tests will play in synchronization until the end (or possibly until the point
chosen with <Set Stop>).
NB: when you press <Synchro>, <Set Start> or <Set Stop>, make sure you have correctly positioned
the two tests at the time chosen, as these actions are applied simultaneously to the two tests.

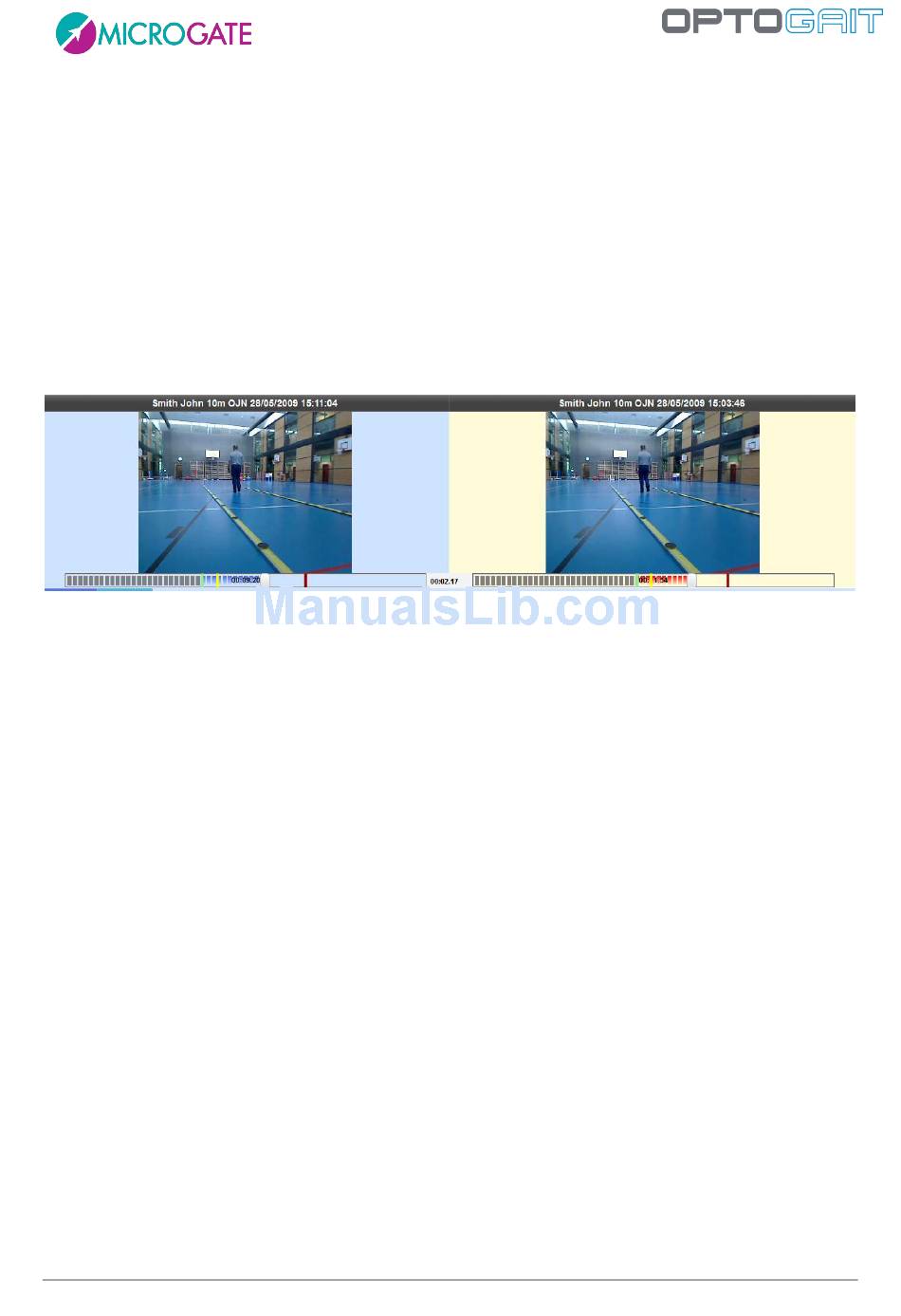

Figure 89 –Synchro, Start, and Stop Settings
Test data viewing can be configured by the user. These settings are similar to those explained in the
previous section, except for:
Chart
o View: data can be viewed horizontally (as in Figure Figure 88) or vertically. In this
case the numerical values are scrolled horizontally.
o Bars: synchronization of the bars means that if, for example, the Blue Test time
slider is moved, the red bar for the Red Test time is automatically moved, too. If 'No
Synchro' is chosen, the two scroll bars are disconnected and can be moved
independently from each other.
Video
o Video choice: if two movie clips have been acquired (i.e., two webcams are
connected) for each test it is possible to choose which movie clip to view, 'Video#1'
or 'Video#2'. It is not possible to view the Video taken by Webcam#1 for the Blue
Test and the video taken by Webcam#2 for the Red Test (or vice versa).
4.3.2.1 P , A
RINT NALYSIS
The options are mainly the same as those in the 'View' section. Printed data is obviously from the
comparison between the two tests. Therefore the name of the test, the values, and charts referred
to are always displayed at the top.
