Below is the step-by-step procedure for bar installation:
Switch off the OptoGait device

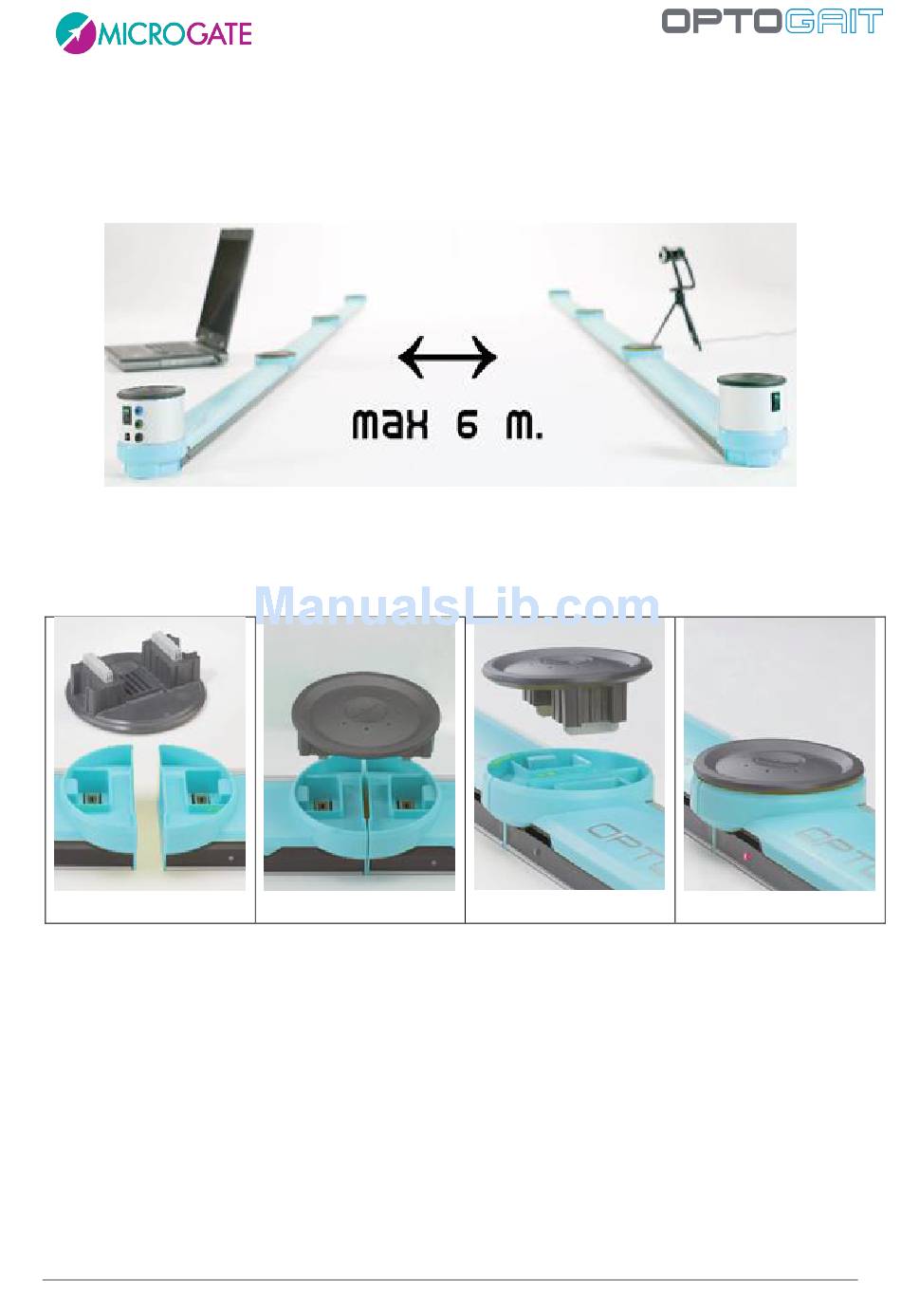

Place the two OptoGait Rx and Tx bars facing each other at a minimum distance of one
meter (maximum 6 meters)
If a number of bars connected together are used, pay attention to the insertion of the caps
(see figures below). Check that the caps are firmly inserted. If insertion is incorrect, the
software may not function correctly.
Figure 11
Version 1.9
Figure 10 – Maximum distance
Figure 12
Figure 13 Figure 14
