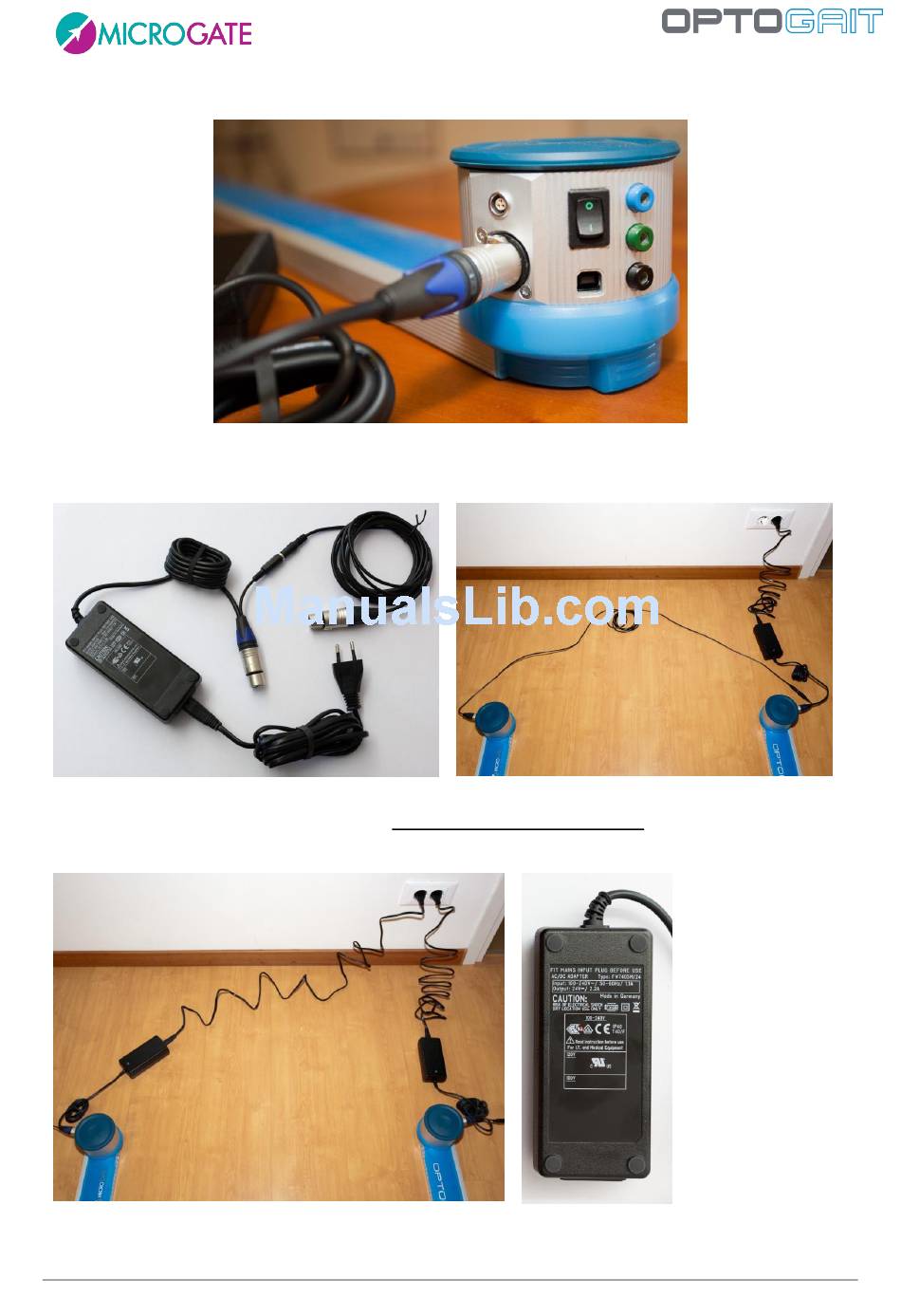

To recharge the battery, connect the adaptor plug to the dedicated socket on the drum.
Use only one power supply and the cable connecting the supply adapter with the second bar to
recharge the Single Meter (TX bar and RX with interface)
Figure 24- Adapter and cable for second bar
For the current supply and for recharging multiple meter linear systems, use two power supplies:
one for the TX bar and one for the RX bar. The power supply is certified for medical use
Figure 25- Two power supplies for multiple-meter systems
The supplied power plug is specific for the customer's country (EU, USA, UK, Japan)
