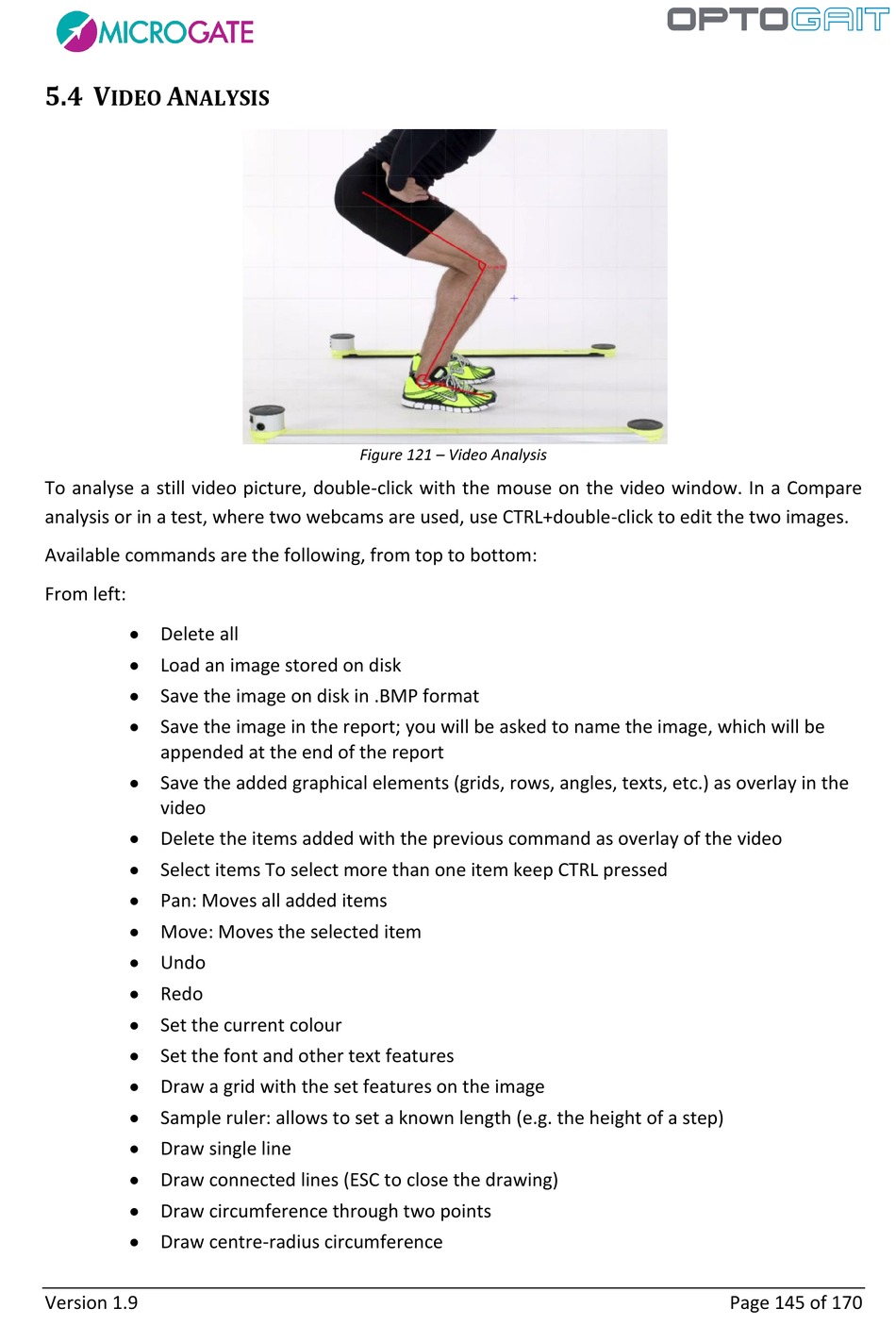

5.4 V A
IDEO NALYSIS
To analyse a still video picture, double-click with the mouse on the video window. In a Compare
analysis or in a test, where two webcams are used, use CTRL+double-click to edit the two images.
Available commands are the following, from top to bottom:
From left:
 Delete all
 Load an image stored on disk
 Save the image on disk in .BMP format
 Save the image in the report; you will be asked to name the image, which will be
appended at the end of the report
 Save the added graphical elements (grids, rows, angles, texts, etc.) as overlay in the
video
 Delete the items added with the previous command as overlay of the video
 Select items To select more than one item keep CTRL pressed
 Pan: Moves all added items
 Move: Moves the selected item
 Undo
 Redo
 Set the current colour
 Set the font and other text features
 Draw a grid with the set features on the image
 Sample ruler: allows to set a known length (e.g. the height of a step)
 Draw single line
 Draw connected lines (ESC to close the drawing)
 Draw circumference through two points
 Draw centre-radius circumference
Version 1.9
Figure 121 – Video Analysis
