The maximum length of the 2D course can be increased up to 13 meters purchasing one or more
special Y TX bars called '2D-Boosted'. This kind of bar is equipped with stronger transmission LEDs
compared to the others and has a front aluminium cover instead of the transparent lenses, in order
to direct the narrow infrared LED beam. To help the Y bar alignment at great distances (especially
with not perfectly smooth ground), the 2D-Boosted bar is equipped with mechanical trimming
devices for applying micrometric elevation and inclination changes.
Y
X
RX bars
TX bars

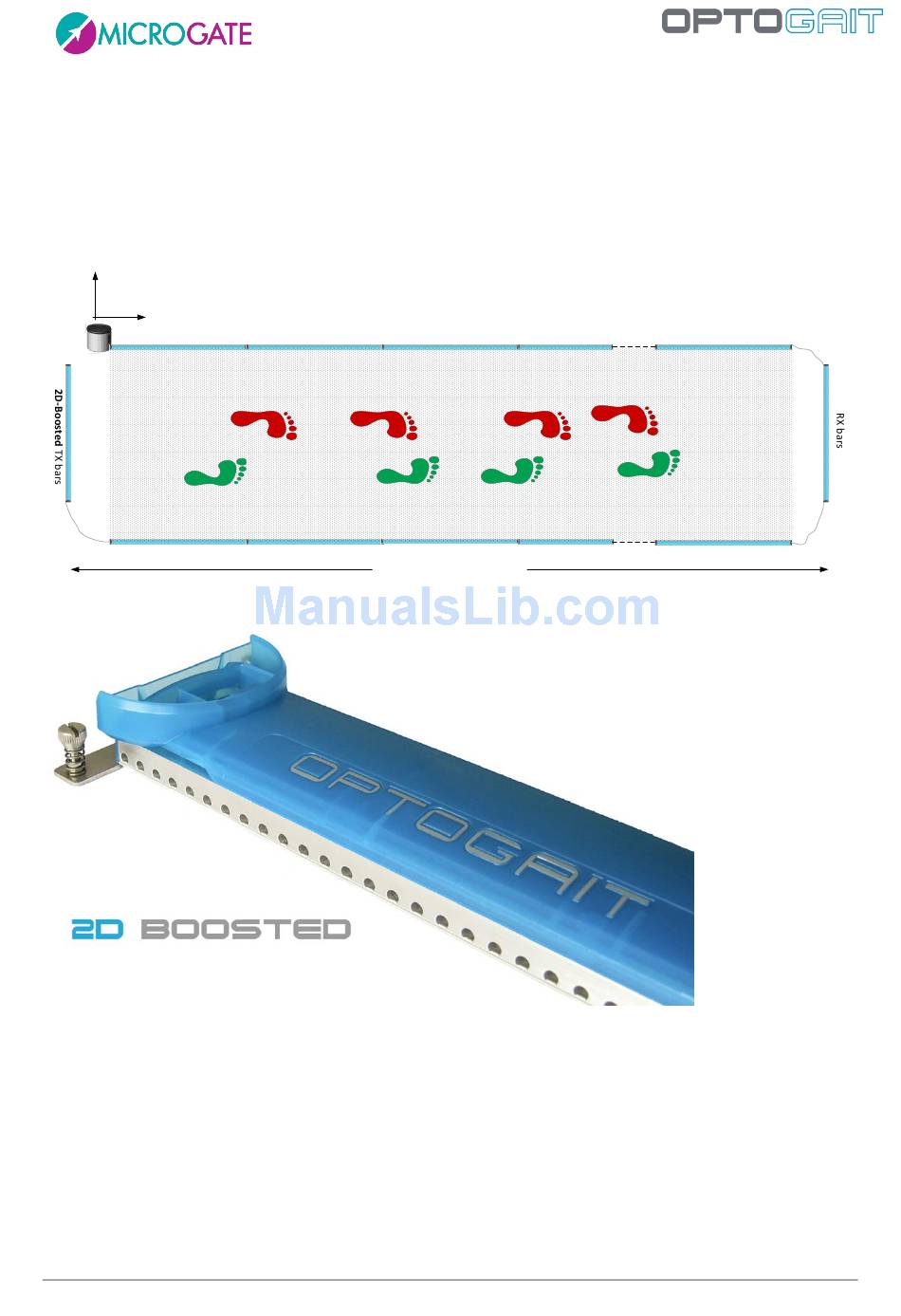

MAX 13 mt. (eg. 11mt bars + 1mt x 2)
