Probes

Connecting the Probes

The input connectors for the probes are inside the pouch over the
battery compartment, on the right side of the oscilloscope as you face
the screen. You must unzip or remove the pouch to access the con
nectors.

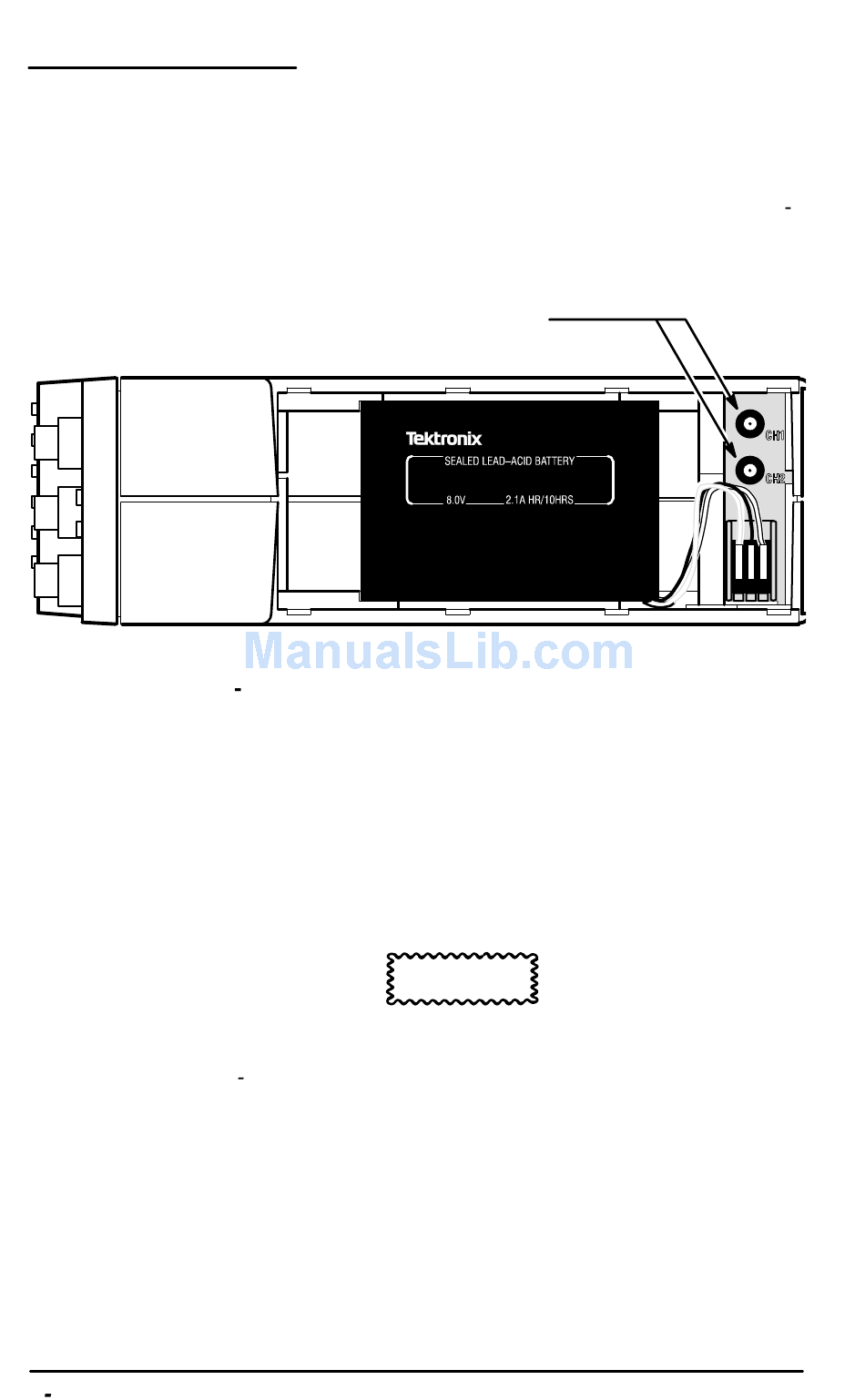

Figure 3 18: Side View Showing Probe Connectors
To connect a probe, place its jack end into a channel input connector.
Press until you feel the probe is firmly seated.
You do not need to disconnect the probes before storing them in the
pouch.
The exposed probe tips are sharp for probing through
solder resin and oxide layers. When placing the probes in
the side pouch, store them with the retractable hook tip
attached to prevent unnecessary damage to the pouch.
3 44
Probe Connectors
(Pouch Removed)
CAUTION
In Detail
