Configuring The Probes; Figure 3 19: The Auxiliary Functions Menu - Tektronix 222PS Operator's Manual

Configuring the Probes

To ensure that the 222PS is operating with the correct settings, confi
gure the instrument to match the probes you are using.
To set the probe configuration, follow these steps.
Step 1: Press the AUX FUNCT button on the top panel to display
the auxiliary functions menu, as shown in Figure 3 19.

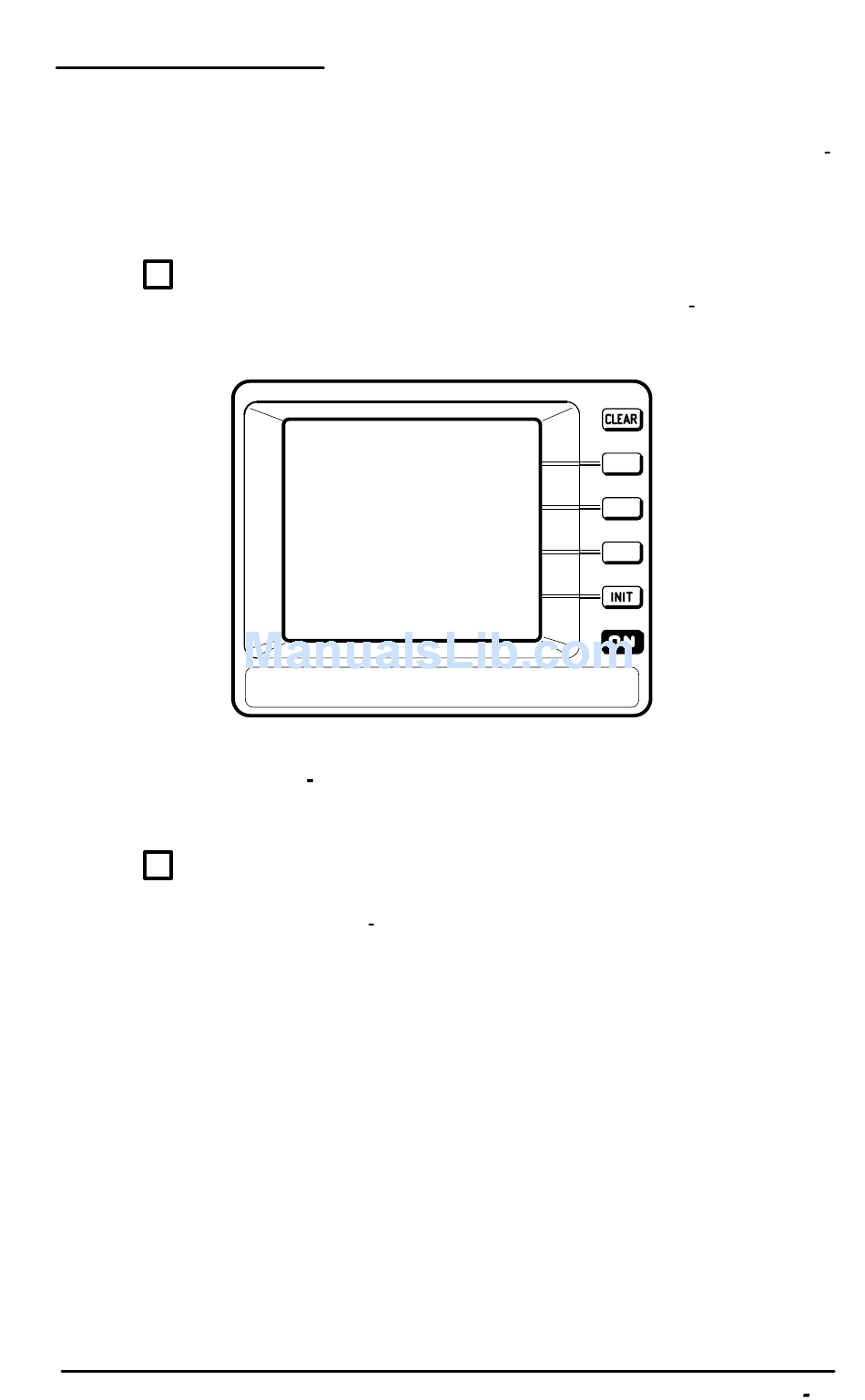

Figure 3 19: The Auxiliary Functions Menu

Step 2: Press the menu button next to the CONFIG menu item to
access the configuration menu. The display now appears as
shown in Figure 3 20.
222PS Operator Manual
AUX:
SELF CAL
CONFIG
MOTOR TRIG
ALIGN
Probes
3 45
