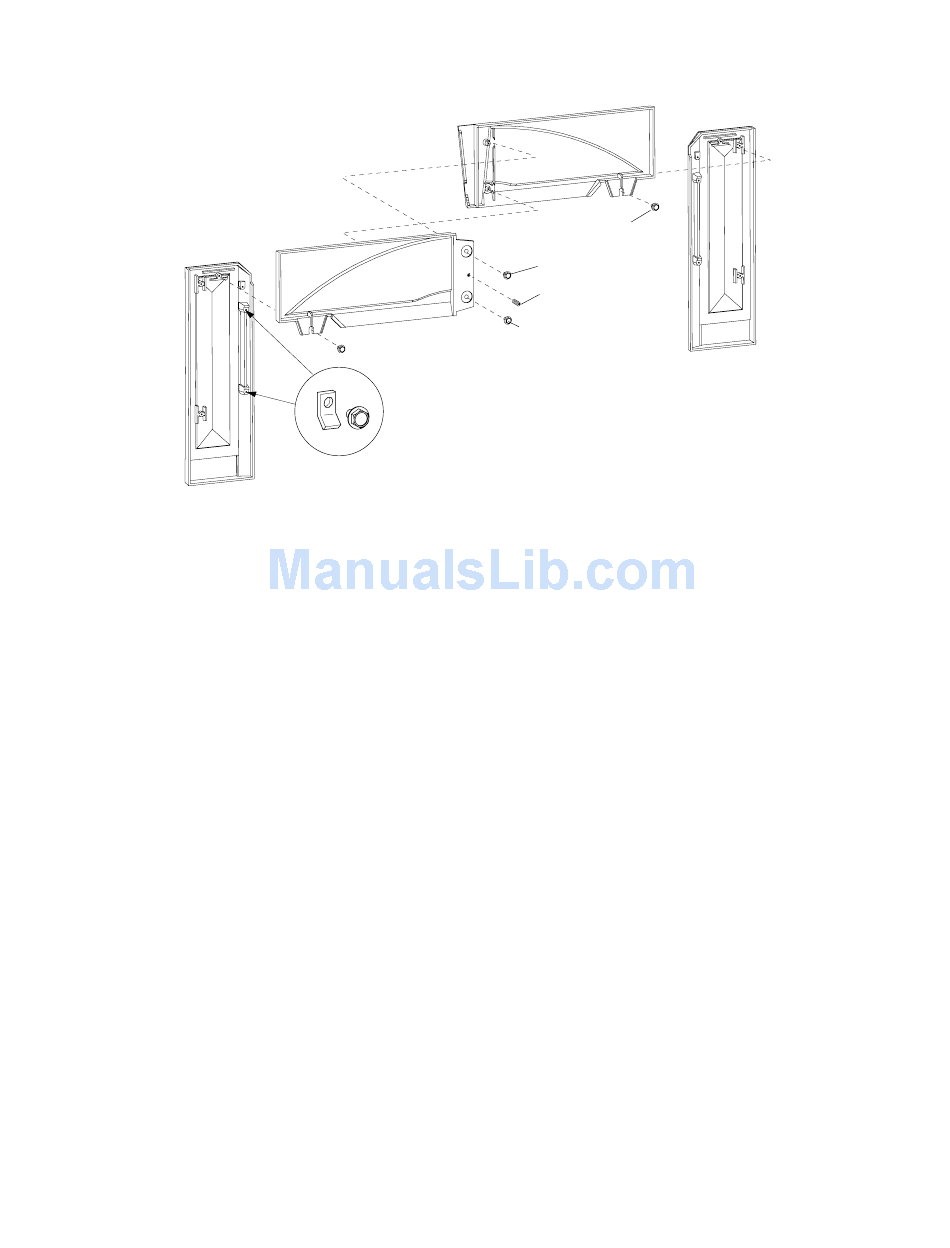

Figure 12. Kennebec Classic Surround Panel Assembly
Tools Required:
• 10 mm socket or wrench
Right Breastplate
Right Leg
Kennebec Surround Assembly
All fasteners have already been installed in the appro-
priate locations at the factory. You will need to remove
them, attach the parts together as described below and
re-install the fasteners at those locations.
1. Layout the parts. Place the castings face down on a
protective surface such as carpeting, blankets or a
sheet of cardboard. See fig. 12.
2. Attach the Breastplates to each other.
Use a 10 mm socket or wrench with two M6 x 10 hex
head flange bolts.
3. Attach the Leg plates. The Legs must be oriented
with the Hang Tabs on the inside edges as shown
in fig. 12. Use the two remaining M6 x 12 hex head
flange bolts to attach the Legs to the Breastplate as-
sembly.
4. Optional: If you will be installing the a Mantel Heat
Shield, use the instructions included with that kit.
Left Breastplate
M6 x 10 Flange Bolt
M6 x 12 Flange Bolt
Hang Tabs should point straight down
and angle away from the leg.
5. Attach the Assembly to the Firebox. Lift the entire
assembly upright and position it in front of the
insert firebox. The four Hang Tabs on the surround
legs must engage with the adjacent holes in the two
brackets on either side of the firebox opening. The
surround will easily engage with these brackets if the
firebox is slightly proud of the fireplace opening.
Hang the surround assembly on the firebox and push
the entire unit into position so that the surround is
flush against the fireplace face.
Final leg panel alignment can be adjusted by slightly
loosening or tightening those attachment bolts as
necessary.
Optional Surround Panels and Mantel
Heat Shields
Follow the installation instructions supplied with these
kits:
Steel Wide Surround / 47 3/4" x 34"
Trimable Surround / 40" x 30"
Mantel Heat Shield / for Standard Cast Surround #155346
Mantel Heat Shield / for Steel Wide Surround #157361
139684_Rev_7 / C 450 Kennebec 7 / 17
M6 x 12 Flange Bolt
M6 x 10 Flange Bolt
Set Screw
Left Leg
#157213
#157325
