2
25 1/4”
641 mm
Firebox
Sleeve
2 1/2”
64 mm
to Door Opening
Figure 1. Maximum Sleeve Adjustment
Firebox
Surround
Sleeve
Panel
to Door
6 1/2”
Opening
165 mm
Figure 2. Minimum Sleeve Adjustment
Glass Area
219 sq.in.
1016 mm
Figure 3. Overall Surround Dimensions are the same for
both Kennebec Lattice and Clean Face versions.
29”
7
737 mm
25 1/2”
635 mm
Firebox
9 1/4”
235 mm
1 1/2”
38 mm
5 1/4”
158 mm
Firebox
40”

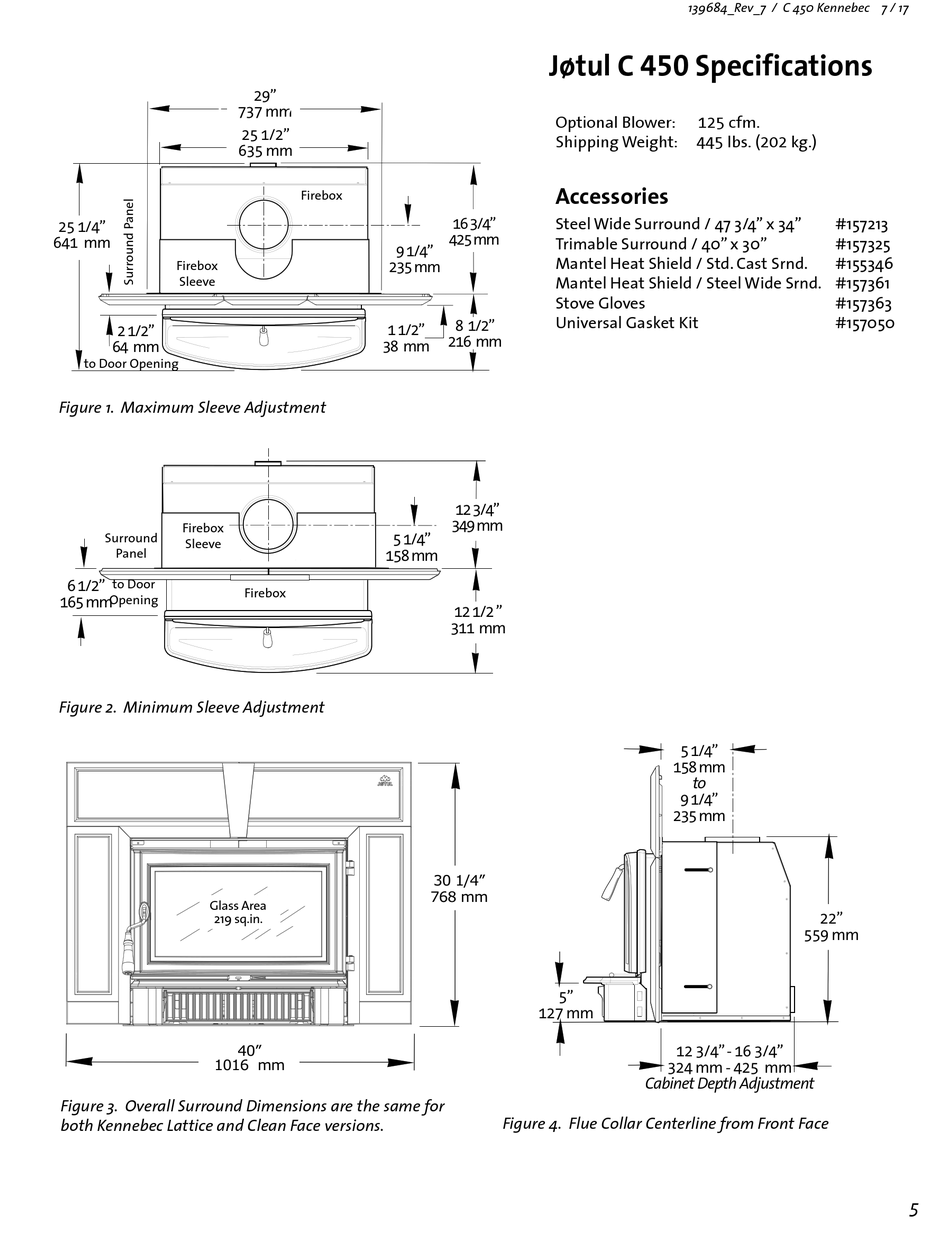

Jøtul C 450 Specifications
Optional Blower:
Shipping Weight:

Accessories

Steel Wide Surround / 47 3/4" x 34"
16 3/4”
425 mm
Trimable Surround / 40" x 30"
Mantel Heat Shield / Std. Cast Srnd.
Mantel Heat Shield / Steel Wide Srnd. #157361
Stove Gloves
Universal Gasket Kit
8 1/2”
216 mm
12 3/4”
349 mm
12 1/2 ”
311 mm
30 1/4”
768 mm
5”
127 mm
Figure 4. Flue Collar Centerline from Front Face
139684_Rev_7 / C 450 Kennebec 7 / 17
125 cfm.
445 lbs. (202 kg.)
5 1/4”
158 mm
to
9 1/4”
235 mm
22”
559 mm
12 3/4” - 16 3/4”
324 mm - 425 mm
Cabinet Depth Adjustment
#157213
#157325
#155346
#157363
#157050
5
