Summary of Contents for Unitron iCube

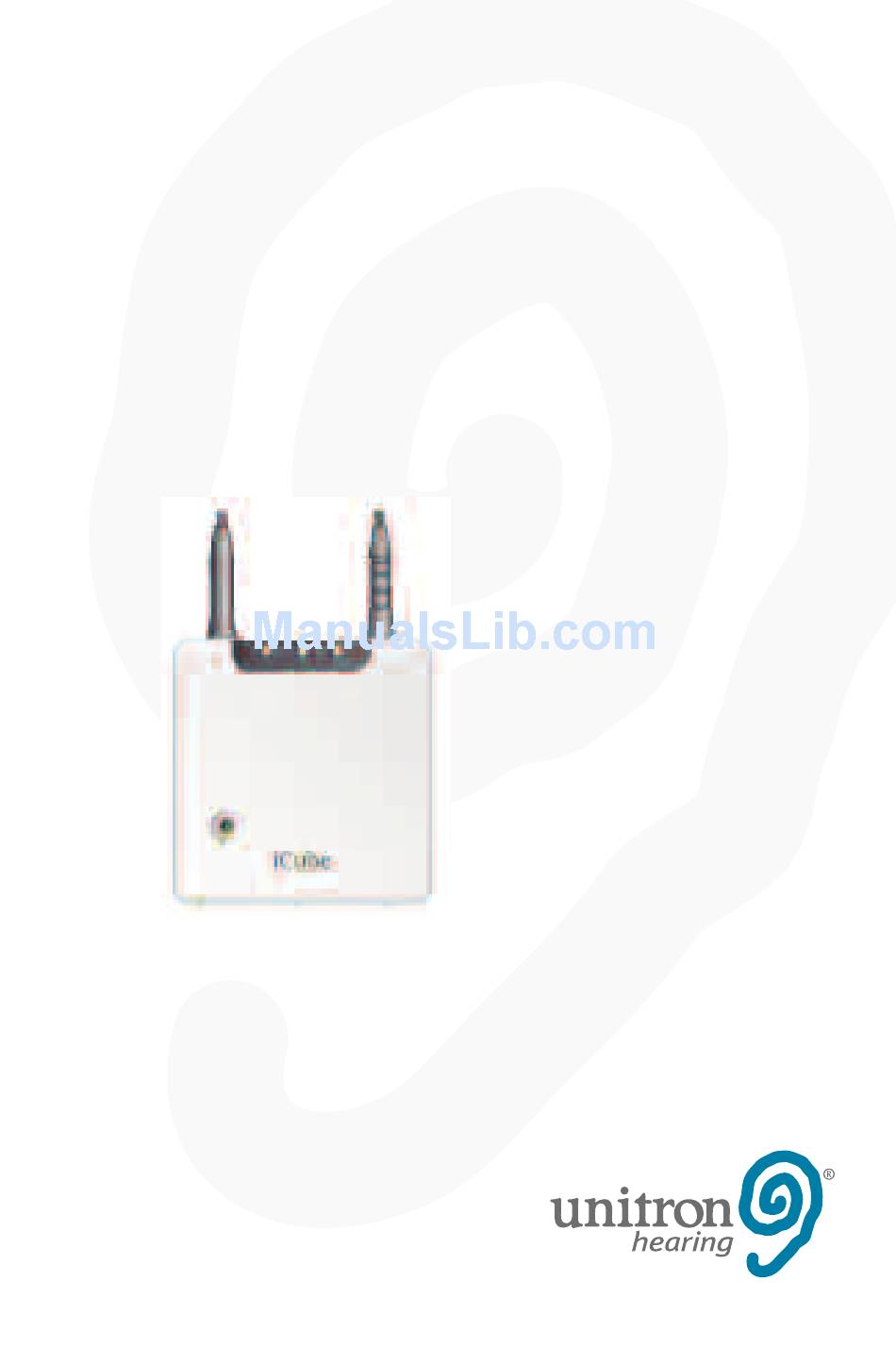

- Page 1 Instruction Guide...
-
Page 2: Table Of Contents
Table of Contents Your iCube ..............1 Practical Solutions to Everyday Problems ......2 Using the iCube Guide ............3 Getting started..............4 Using iCube ..............13 Indicators ..............13 Important information...........15 Troubleshooting Guide..........18 Declaration of Conformity ..........19 Notices ................19... -
Page 3: Your Icube
Your iCube Hearing Healthcare Professional: _______________________ ___________________________________________________ Telephone:__________________________________________ Model: _____________________________________________ Serial Number of iCube: _______________________________ Replacement Batteries: One AAA (1.5 Volt), Standard or Rechargeable Warranty:___________________________________________ Date of Purchase: ____________________________________... -
Page 4: Using The Icube Guide
Using the iCube Instruction Guide iCube enables the wireless transfer of fitting data from your PC directly to your client’s hearing instruments. Based on Bluetooth technology the fitting process is fast, smooth and stable, and most importantly, cable-free. Please read this manual carefully to benefit from all the features of your iCube. -
Page 5: Getting Started
90 minutes. It is safe to leave the charger connected overnight — the battery cannot be overcharged. When charging your iCube for the first time, leave it to charge for at least three hours (even if the battery... - Page 6 Unitron representative. Operating time Fully charged, your iCube will operate for up to four hours in normal use. Battery consumption and the operating time of the iCube greatly depend on the usage of the device.
- Page 7 CableFree Fitting via Bluetooth connection. However, there are locations where Bluetooth connections are not allowed, so iCube can alternatively be used with a USB connection. In either case, before you can start using your iCube it needs to be connected with your computer.
- Page 8 With Bluetooth functionality turned ON, you can now initiate the connecting process via the U:fit™ fitting software. If this is the first time using iCube, pressing the iCube button on the detection screen will start the “ConnectionWizard for iCube”. 3. Pairing iCube with your computer Select “Use iCube via Bluetooth”...
- Page 9 Bluetooth indicator is blue and flashing fast. iCube is now in pairing mode for two minutes or until pairing is completed. Follow the instructions to complete pairing and finish the connection process for iCube. Upon successful completion, the “CableFree Fitting Status” will inform...
- Page 10 10 seconds until the Bluetooth indicator is lit solid blue. Connecting via USB cable If you wish to connect your iCube via USB cable instead of Bluetooth, start the “iCube configuration ” in the U:fit fitting application and choose to use iCube via USB cable.
- Page 11 U:fit System Configuration options The “Pairing Wizard for iCube” can also be accessed by selecting “Options”, and then “iCube”, in the menu bar of the fitting application. In the same menu you can also select or deselect iCube.
- Page 12 (Re)connecting the neckloop will activate the built-in antenna and enable iCube to operate correctly. Batteries need to be inserted into the hearing aids and hearing aids need to be turned on prior to detection. Detecting and programming hearing instruments In wireless fitting, where there are no left and right fitting cables, the assignment of left/right is done via U:fit.
-
Page 13: Using Icube
If, for some reason, iCube becomes unresponsive, remove the cover by sliding it upwards. Press the reset button. The Bluetooth pairing will not be lost. If all three indicators on your iCube are lit solid, this may indicate a software problem. Refer to Troubleshooting section. -
Page 14: Indicators
Battery empty Yellow - Lit solid Battery charging Fitting Status Indicator Red - Right fitting status indicator flashing fast. iCube is programming the right hearing instrument. Blue - Left fitting status indicator flashing fast. iCube is programming the left hearing instrument. - Page 15 Software Indicator iCube is built such that it can be upgraded whenever new functionalities are available. Follow the instructions provided together with the new software version. Red/yellow/blue - All three indicators flash fast. iCube is being upgraded. Red/yellow/blue - All three indicators lit solid.
-
Page 16: Important Information
• Protect iCube from excessive moisture and heat. • Protect it from excessive shock and vibration. • When iCube is not in use, turn it OFF and store it in the iCube charger so it will be sufficiently charged and ready for the next fitting session. - Page 17 • Do not unplug the neckloop when iCube is saving data to the hearing instruments. Keep the neckloop closed when iCube is not in use or stored on the iCube charger. • If you use several iCubes in the same building, be aware that their inductive field can disturb one another if within a range of 2 meters (6 feet).
-
Page 18: Troubleshooting Guide
Bluetooth pairings and press the reset button again. If the problem still persists, contact your local Phonak representative. A second or different iCube cannot be connected to my computer • Start the “Pairing Wizard for iCube” which • Only one iCube can be... -
Page 19: Declaration Of Conformity
Declaration of Conformity Unitron Hearing declares under its sole responsibility that the iCube is in conformity with the following standards or other standardizing documents: Radio: EN 300-330 EN 300 328 EMC: EN 60601-1-2 Safety: EN/IEC 60601-1 Implementing the provisions of the MDD 93/42/EEC (Medical Device Directive), R&TTE Directive 1999/5/EC... - Page 20 Changes or modifications made to this equipment not expressly approved by Unitron Hearing may void the FCC authorization to operate this equipment. Notice 2 This Class B digital apparatus complies with Canadian ICES-003. Notice 3 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 21 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help. Operating conditions This product has been designed for trouble-free operation without restrictions when used as intended, unless otherwise stated in this user guide.
- Page 23 U n i t ro n H e a r i n g D i st r i b u to r s C o r p o r at e O f f i c e / I n t e r n at i o n a l 20 Beasley Drive, P.O.
- Page 24 www.unitronhearing.com 029 5733 02...
