Summary of Contents for Unitron iCube

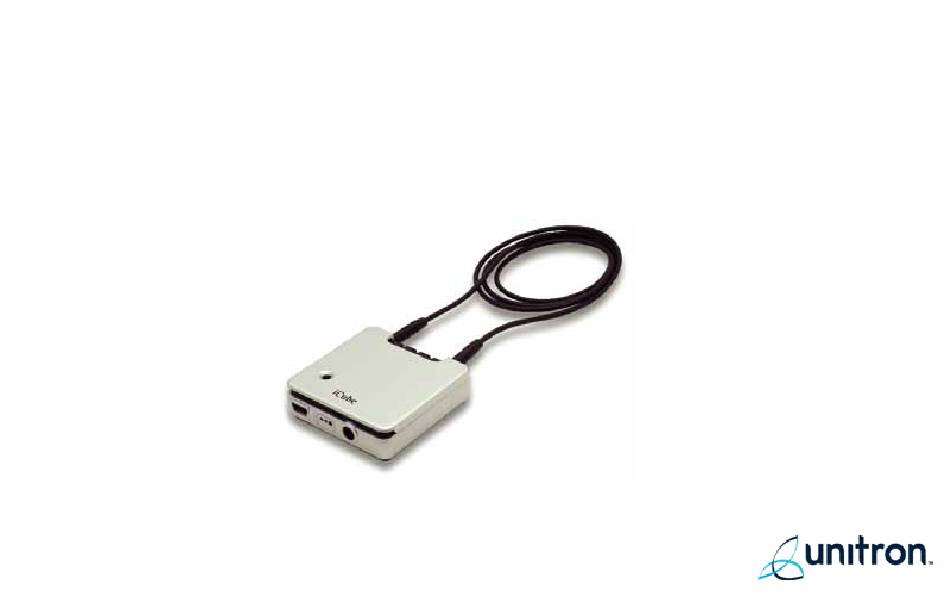

- Page 1 Complete guide to iCube Wireless programming...
-
Page 2: Table Of Contents
Table of contents Overview iCube enables the wireless transfer of fitting data from your Overview ......................2 computer directly to your client’s hearing instruments. First time setup ................... 3 For further information, please visit the Unitron website: Connecting iCube to your computer ............3 www.unitron.com... -
Page 3: First Time Setup
Connect the iCube charger by plugging the power supply flash slowly. into a power outlet and the mini USB plug into the iCube as shown below. Alternatively you can charge your iCube with To turn OFF your iCube, press and hold the ON/OFF button the USB cable using the USB port on your computer system. - Page 4 Detect or: 3. To end the process, click on close. • In TrueFit, select Options > iCube Configuration • In U:fit, select Options > iCube and then click on Add iCube to start the iCube pairing wizard.
-
Page 5: Icube System Configuration Options
3. To allow the fitting software to use the connected iCube: If you wish to delete the Bluetooth pairing • In TrueFit, select Check in the iCube connected via USB from your iCube, press and hold the Bluetooth pairing button for about 10 seconds until the Bluetooth indicator is lit •... -
Page 6: Battery Status
Battery status Operating time While turned ON, your iCube indicates the battery status on Fully charged, your iCube will operate for up to four hours in the battery indicator LED as follows: normal use. • Yellow, slow flash – Battery level is high. -
Page 7: Quick Reference Page
Quick reference page The following insert can be removed from this booklet for use as a quick reference guide. -
Page 8: Indicator Lights
Indicator lights Fitting status indicator Battery indicator Red - Right fitting status indicator flashing fast Yellow - Slow flash Programming the right hearing instrument Battery full Blue - Left fitting status indicator flashing fast Yellow - Fast flash Programming the left hearing instrument Battery empty Yellow - Lit solid Battery charging... - Page 9 Software indicator iCube can be upgraded whenever new functionalities are available. Follow the instructions provided together with the new software version. Indicators Red/yellow/blue - All three indicators flash fast iCube is being upgraded Red/yellow/blue - All three indicators lit solid...
-
Page 11: Using Icube Without A Client
Assign (or reassign) each hearing instrument to the desired side (left or right). You can play a beep identification to • When iCube is not in use, turn it OFF and recharge it so it will be sufficiently charged and ready for the next fitting confirm that left and right have been selected properly. - Page 12 • Do not make any changes or modifications to this device. installations and metallic structures may impair and • Do not unplug the neckloop when iCube is saving data to significantly reduce the operating range. the hearing instruments. Keep the neckloop closed when •...
-
Page 13: Troubleshooting Guide
Unitron Hearing declares under its sole responsibility Cause Possible remedy that the iCube is in conformity with the following iCube is no longer recognized by the computer to which it was standards or other standardizing documents: previously paired Radio: EN 300-330... -
Page 14: Notices
• Connect the equipment into an outlet on a circuit different This Class B digital apparatus complies with from that to which the receiver is connected Canadian ICES-003. • Consult the dealer or an experienced radio/TV technician for help. The CE symbol is confirmation by Unitron that this Unitron... - Page 15 product meets the requirements of directive 93/42/EEC on medical devices and the R&TTE Directive 1999/5/EC on Radio and Telecommunication Terminal Equipment. The symbol with the crossed out disposal bin indicates that this product shall not be treated as household waste. Please hand over your old or unused product to the applicable This instrument is certified under: collection point for the recycling of electrical and electronic...
- Page 16 Contact us International - +1 519 895 0100 European Representative & Germany - +49 711 658538 0 Canada - 1 800 265 8255 U.S. - 1 800 888 8882 U.K. - 01925 247810 France - 0821 02 9000 Netherlands - +31 88 600 88 10 China - 512 6258 2258 New Zealand - 0800 864 8766 Australia - 1800 212 313...
