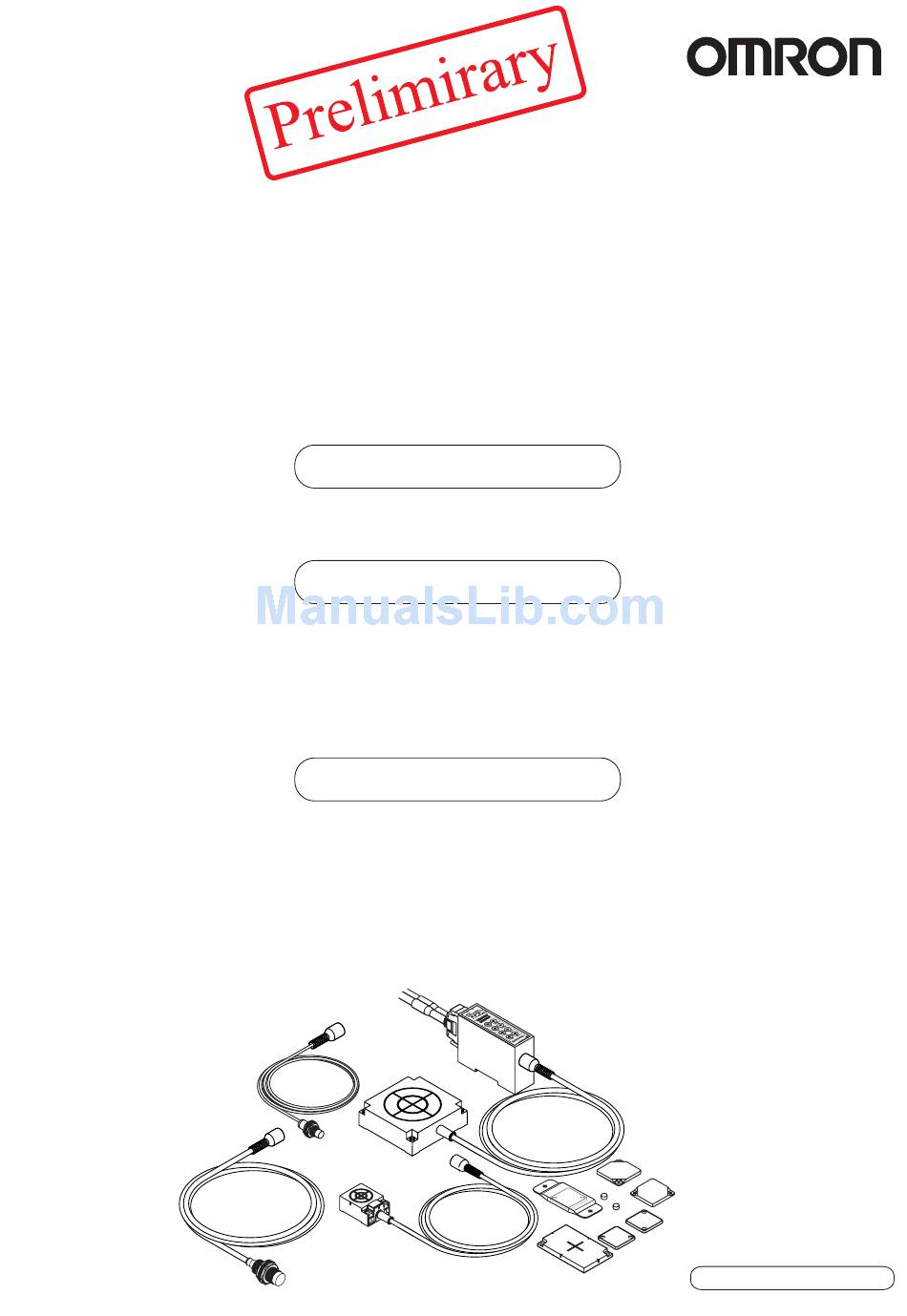

  • Page 1 RFID System V680 Series ID Sensor User’s Manual ID Sensor V680-HAM91 V680-HAM81 Antenna V680-HS51 V680-HS52 V680-HS63 V680-HS65 ID Tags V680-D1KP52MT V680-D1KP66T/-D1KP66MT V680-D1KP66T-SP V680-D2KF52M V680-D2KF67/-D2KF67M V680-D8KF68/-D32KF68 Cat.No.:Z279-E1-01...
  • Page 2 Introduction Thank you for purchasing a V680-series RFID System. This manual describes the functions, performance, and application methods needed for optimum use of the V680-series RFID System. Please observe the following items when using the RFID System. • Allow the RFID System to be installed and operated only by qualified specialist with a sufficient knowledge of electrical systems.
  • Page 3 Part Names and Functions Section 2 Function Section 3 Installation Section 4 I/O interface control Section 5 Troubleshooting ection 6 Chemical Resistance ection 7 RFID System V680-HAM91 ID Sensor V680-HAM81 ID Sensor V680-HS51 Antenna V680-HS52 Antenna V680-HS63 Antenna V680-HS65 Antenna V680-D1KP52MT...
  • Page 4 Please read and understand this document before using the products. Please consult your OMRON representative if you have any questions or comments. WARRANTY OMRON’s exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by OMRON.
  • Page 5 The following symbols are used in this manual to indicate precautions that must be observed to ensure safe use of the V680-HAM91/-HAM81, V680 Series Antennas, and V680 Series ID Tags. The precautions provided here contain important safety information. Be sure to observe these precautions.
  • Page 6 Introduction Regulations and Standards The Products conform to the following overseas regulations and standards. 1. The United States Antenna This product complies with Part 15 Subpart C of the FCC Rules. V680-HS51 FCC ID: E4E6CYSIDV6800208 V680-HS52 V680-HS63 V680-HS65 FCC NOTICE This device complies with part 15 of the FCC Rules.
  • Page 7 Italian Serie sono conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Por medio de la presente Omron declara que el RFID Sistema, V680-HS51 Serie, V680-HS52 Serie, V680-HS63 Serie, V680-HS65 Serie, V680-HAM42- Spanish DRT Serie esta conforme a los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

  • Page 8: Precautions For Safe Use

    10. If you suspect that anything is wrong with the product at any time, stop using it immediately, turn OFF the power supply, and consult with your OMRON representative. 11 When disposing of the product, dispose of it as industrial waste.

  • Page 9: Precautions For Correct Use

    Introduction Precautions for Correct Use Always observe the following precautions to prevent operation failures, malfunctions, and adverse effects on performance and equipment. 1. Installation Location Do not install and storage the product in the follwing locations: • Locations subject to corrosive gases, dust, dirt, metal powder, or salt. •...

  • Page 10: Meanings Of Symbols

    Introduction Meanings of Symbols Indicates particularly important points related to a function, including precautions and application advice. Indicates page numbers containing relevant information. RFID System User's Manual...

  • Page 11: Table Of Contents

    Introduction Table of Contents Safety Precautions Regulations and Standards Precautions for Safe Use Precautions for Correct Use Meanings of Symbols Table of Contents Section 1 Product Overview Features Product Configuration Section 2 Specifications and Performance Antennas with Separate Amplifier Amplifier Tags Section 3 Communications Specifications Communications Distances...
  • Page 12 Introduction MEMO RFID System User's Manual...

  • Page 13: Section 1 Product Overview

    Section 1 Product Overview Features Product Configuration RFID System User's Manual...

  • Page 14: Features

    Simple Operation with I/O Control as Simple as Using a Regular Sensor The V680-HAM91 and V680-HAM81 can be used right away to create an RFID System with operation as easy as with regular Sensors. Start operation simply by setting the mode switch on the ID Sensor to output the read results to the I/O interface.

  • Page 15: Product Configuration

    PLC, I/ORelay Terminal, B7A, DeviceNet Device, etc. Terminal block wiring Interface Cable Connector pins :26 pins :24 VDC power supply :2m, 5m, or 10m Cable length Connector connection ID Sensor V680-HAM81 V680-HAM91 Connector connection Antenna V680-HS51 V680-HS52-R V680-HS63-R V680-HS65-R V680-HS65-W V680-HS52-W V680-HS63-W Wireless Communications...
  • Page 16 Section 1 Product Overview MEMO RFID System User's Manual...
  • Page 17 Section 2 Part Names and Functions ID Sensor Antenna ID Tag RFID System User's Manual...
  • Page 18 Section 2 Part Names and Functions ID Sensor Connected connector:CN2 Connected connector:CN1 Display LED Access mode setting switch Access mode setting Output mode setting Read mode setting Write mode setting Access address setting switch Antenna connection connector Display LED Name Color Description Green...
  • Page 19 Connected connector:CN1 A high-ranking equipment of PLC is connected. Triangular mark Connected connector:CN2 Connected connector:CN1 Viewed from the connecting side Military Standard(MIL-C-83503) conforming connector(use connector: Type XG4A-2639-A and made in OMRON) Pin No Signal name Lead wire color Description Shield...
  • Page 20 Connected connector:CN2 A high-ranking equipment of PLC is connected. Triangular mark Connected connector:CN2 Connected connector:CN1 Viewed from the connecting side Military Standard(MIL-C-83503) conforming connector(use connector: Type XG4A-2639-A and made in OMRON) Pin No Signal name Lead wire color Description Shield...
  • Page 21 Section 2 Mode Setting Switch •Access Mode Setting Set the opeation mode for communications with the ID Tag. The position of the arrow in the figure is the direction in which the setting is made. Name Description SYNC_MODE Operates as Trigger Mode 1. Communications with the ID Tag will start with input.
  • Page 22 Section 2 •Output Mode Setting Set the output mode and output time width. The position of the arrow in the figure is the direction in which the setting is made. Setting Description Combination with access mode 10msec OFFDELAY 10-ms ON-delay Auto Mode 1, Auto Mode 3, or Trigger Mode 3 Note: A mode setting error will occur if the access mode setting is not 50msec OFFDELAY...
  • Page 23 Section 2 •Read Mode Setting Set the operation mode for reading data. The position of the arrow in the figure is the direction in which the setting is made. DATA READ1 Outputs read data. DATA READ2 Outputs read data as the wire-saving mode. For details, refer to Mode 2 in Section 5 I/O Interface Control.
  • Page 24 Section 2 •Write Mode Setting Set the operation mode for writing data. The position of the arrow in the figure is the direction in which the setting is made. Name Description 2bytes WRITE Write the 2 bytes (16 bits) of data input to the external data input (ID 0 to ID15) to the ID Tag. BIT SET When external data input (ID0 to ID15) is received, only the bit turned ON will be set (i.e., turned ON).
  • Page 25 Section 2 Access Address Setting Switch Set the operation mode for reading data. Item Description Setting Specify the memory address of the ID Tag in 4-digit hexadecimal. method To specify an ID Tag memory address of 01A3 hex: Setting 0000 hex to FFFF hex (See note.) range Default setting: 0000 hex The position of the arrow in the figure is...
  • Page 26 Section 2 Part Names and Functions Antenna (2) Antenna (3) Ferrite core (4) Connector (2) Antenna (1) Operation indicator (3) Ferrite core (4) Connector (2) Antenna (3) Ferrite core (4) Connector (1) Operation indicator (2) Antenna (3) Ferrite core (1) Operation indicator (4) Connector Name...
  • Page 27 Section 2 Part Names and Functions ID Tag RFID System User's Manual...
  • Page 28 Section 2 Part Names and Functions MEMO RFID System User's Manual...

  • Page 29: Section 4 Installation

    Section 4 Installation ID Sensor Installing Antennas Installing Tags RFID System User's Manual...
  • Page 30 Section 4 Installation ID Sensor Installation To ensure full functionality of the V680-HAM91/-HAM81 ID Sensor, follow the instructions provided in this section for installation. Installation Site Do not install the ID Controller in the following locations. Locations exposed to ambient temperatures that are not between -10 and 55 C or where there are...
  • Page 31 DIN Track, pull the End Plate downwards and tighten the screw. Recommended tightening torque: 1.2 N m. Mounting lnterval The V680-HAM91/-HAM81 ID Sensor Units will generate heat if they are mounted side-by-side. Leave space between Units of at least 10 mm. 10 mm min. 10 mm min. End Plate...
  • Page 32 Section 4 Connection and Wiring Interface Cable Detaching with ID Sensor Mounting Procedure Line up the direction of the triangle mark on the connectors of the ID Sensor and the interface cable, and then press in the connector of the interface cable The lock will engage when the interface cable is pressed into the connector on the ID Sensor.
  • Page 33 Section 4 Installation Antenna Connector Mounting the Antenna Hold the connector part of the Antenna and insert it into the Antenna port while matching the key on the Unit with the groove on the connector. Antenna connector Turn the connector clockwise to lock it in place. Removing the Antenna Turn the connector in counterclockwise to release the lock.

  • Page 34: Installing Antennas

    Section 4 Installation Installing Antennas V680-HS51 Install the Antenna using the nuts and toothed washers that are provided on both sides of the mounting material, as shown in the diagram below. Material Mounting Hole Dimensions Nuts Antenna +0.5 dia. Toothed washer Securely tighten the screws to a maximum torque of 6 N m.
  • Page 35 Section 4 Installation V680-HS63 Installation from the Front Coil center Two, M4 holes Installation from the Back Insert the nuts that come with the Antenna into sections A. Two, 4.5 dia. holes Coil center Securely tighten screws to a maximum torque of 1.2 N m. RFID System User's Manual...
  • Page 36 Section 4 Installation V680-HS65 Use M4 screws and spring washers (in four places) for Four, M4 mounting holes Antenna installation. Tighten the screws to a torque of 0.7 to 1.2 N m. There are no restrictions on the mounting direction or the direction of access to the Tag, but if the Antenna is to be installed near a device such as a conveyance belt, make sure there is no danger of the Antenna being...

  • Page 37: Installing Tags

    Section 4 Installation Installing Tags V680-D1KP52MT Tag Installation Direction Mount Tags as shown in the diagram on the right. R0.2 max. The epoxy adhesives listed in the following table are recom- mended for the given temperature ranges. +0.1 dia. Ambient operat- Product name Manufacturer ing temperature...
  • Page 38 Section 4 Installation V680-D1KP66T Secure the Tag with M3 screws. Tighten the screws to Mounting Hole Dimensions two, M3 holes a torque of 0.6 N·m or less. M3 countersunk screw Marked side The V680-D1KP66T communications distance is M3 countersunk screw Mounting Hole Dimensions reduced if there is any metal material behind the Tag.
  • Page 39 Section 4 Installation V680-D1KP66MT Secure the Tag with M3 screws. Tighten the screws to Mounting Hole Dimensions two, M3 holes a torque of 0.6 N·m or less. M3 countersunk screw Marked side V680-D1KP66T-SP Mount the ID Tags with M5 screws and washers.Tightening torque: 1.2 N·m. There are no restrictions to the mounting direction of the ID Tags or the direction of movement for Antennas.
  • Page 40 Section 4 Installation V680-D2KF52M Tag Installation Direction Mount Tags as shown in the diagram on the right. The epoxy adhesives listed in the following table are recom- R0.2 max. mended for the given temperature ranges. Ambient operat- +0.1 Product name Manufacturer dia.
  • Page 41 Section 4 Installation V680-D2KF67/-D2KF67M Tag Installation Direction Secure the Tag with M3 screws. Tighten the screws Mounting Hole Dimensions two, M3 holes to a torque of 0.6 N·m or less. M3 screw Marked side V680-D8KF68/-D32KF68 Tag Installation Direction Secure the Tag with M4 screws. Tighten the screws to a torque of 0.7 to 1.2 N·m. two, M4 holes M4 screw Spring washer...

  • Page 42: Rfid System

    Section 4 Installation MEMO RFID System User's Manual...
