Omron V600 Manual

Omron V600 Manual

Electromagnetic rfid system
Hide thumbs Also See for V600:

Advertisement

Quick Links

Download this manual

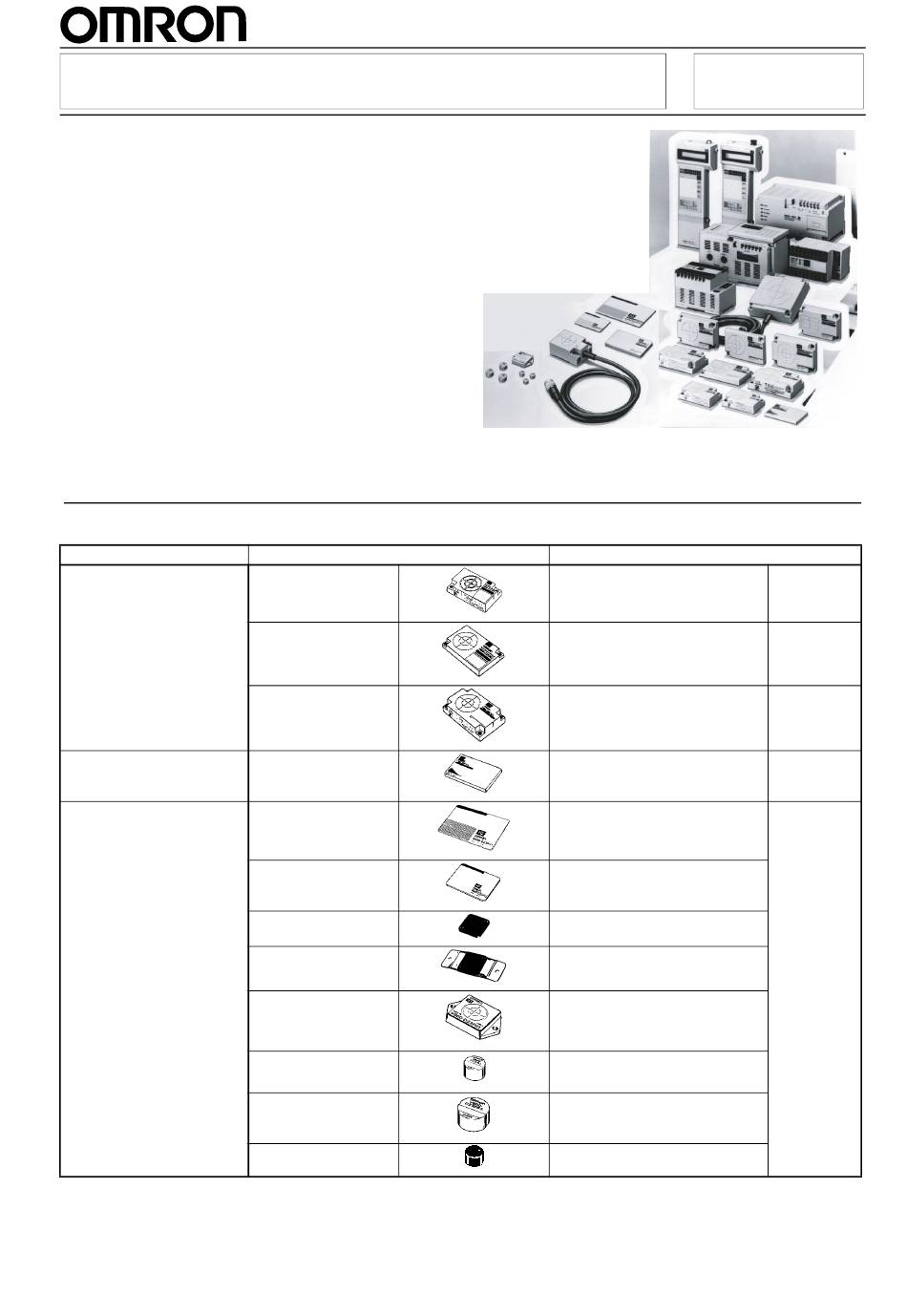

Electromagnetic RFID System
Non-contact Data Communications
System
I
Superior environmental resistance.
I
High memory capacity of 8K bytes for Built-in-bat-
tery Data Carriers and 254 bytes for Battery-less
Data Carriers.
I
Built-in-battery Data Carriers have a battery life
detecting function.
I
Data of battery-less Data Carriers can be over-
written 300,000 times.
I
Thin, compact, and low-cost Data Carriers are
available.
I
Transmission distance of 100 mm max.
Ordering Information
Data Carriers
I
Item
Built-in-battery DCs
Replaceable-battery DCs
Battery-less DCs
Model
V600-D8KR12
V600-D8KR13
V600-D8KR04
V600-D2KR16
V600-D23P71
V600-D23P72
V600-D23P66N
V600-D23P66SP
V600-D23P61
V600-D23P53
V600-D23P54
V600-D23P55
Specifications/Design
Compact
™
™
65
40
15 mm
Thin
™
™
86
54
10.3 mm
Intermediate-range
™
™
86
54
20 mm
Compact
™
™
65
40
5 mm
Card-type
™
™
86
54
1.5 mm
Half-size card-type
™
™
50
34
1.5 mm
Rectangular
™
™
34
34
3.5 mm
Rectangular package with PFA
™
™
95
36.5
6.5 mm
Compact
™
™
32
24
6 mm
Round super-compact
™
8 dia.
5 mm
Round compact
™
12 dia.
6 mm
Round super-compact
™
8 dia.
6 mm
V600
8k bytes
8k bytes
8k bytes
2k bytes
254 bytes
1

Advertisement

loading

Related Manuals for Omron V600

Summary of Contents for Omron V600

  • Page 1 Electromagnetic RFID System V600 Non-contact Data Communications System Superior environmental resistance. High memory capacity of 8K bytes for Built-in-bat- tery Data Carriers and 254 bytes for Battery-less Data Carriers. Built-in-battery Data Carriers have a battery life detecting function. Data of battery-less Data Carriers can be over- written 300,000 times.
  • Page 2 V600 V600 R/W Heads Item Model Specifications/Design ™ ™ Rectangular V600-H07 (0.5 m) Dimensions: 100 30 mm 0.5-m cable V600-H07 (2 m) 2-m cable V600-H07 (5 m) 5-m cable V600-H07 (10 m) 10-m cable ™ ™ V600-H11 (0.5 m) Dimensions: 53 23 mm 0.5-m cable...
  • Page 3 V600 V600 ID Controllers Item Model Specifications/Design AC Power Supply V600-CA1A-V2 100 to 240 VAC, 50/60 Hz RS-232C host interface Two R/W Head connectors V600-CA2A-V2 RS-422 host interface ™ ™ 100 mm V600–CA8A-V2 Parallel PNP host interface V600-CA9A-V2 Parallel NPN host interface...
  • Page 4 Non-water-resistant connectors 5-m cable V600-A50 10-m cable V600-A51 20-m cable V600-A52 30-m cable Data Carrier Mount- V600-A81 For the V600-D2KR16 ing Brackets V600-A84 For the V600-D23P71/D23P72 Attachments V600-A86 For the V600-D23P66N Data Carrier Battery V600-A82 (5 in For the V600-D2KR16...
  • Page 5 Rectangular Round Super- Round Round Super- Card-type Compact resistant Compact compact Compact compact Model V600-D23P71 V600-D23P72 V600-D23P66N V600-D23P66SP V600-D23P61 V600-D23P53 V600-D23P54 V600-D23P55 Memory Capaci- 254 bytes Memory type EEPROM (non-volatile memory) Transmission Refer to page 10, Transmission Distance Specifications for Battery-less DCs...
  • Page 6 Approx. 650 g (with 10-m cable) Note: 1. Extension cables are also available. The maximum cable length is 30.5 m for the V600-H07 and 50.5 m for the V600-H11/H51/H52. 2. The connectors are not water-resistant. R/W Heads (with Separate Amplifier)
  • Page 7 V600 V600 Note: 1. Extension cables are also available. The maximum cable length is 50 m for the V600-HA51. Extension cables are not available for the V600-HS51/HS61. 2. The connectors are not water-resistant. ID Controllers Item V600 Series (Electromagnetic RFID System)
  • Page 8 Ni-Cd Battery Pack Accessory (built-in to ID Controller) V600-A13 Carrying Belt Accessory Note The V600-CB-US-S1 is not provided with the V600-A14. The specifications conform to those of the ID Controller, except • • the operating temperature range is 0 C to 40...
  • Page 9 V600 V600 IDSC Series Item IDSC Series IDSC-CIDR-A IDSC-CIDT-A Host interface RS-232C Possible number of R/W Heads Power supply voltage 100 to 240 VAC, 50/60 Hz Acceptable power supply voltage 85 to 264 VAC Power consumption 60 VA max. Insulation resistance 20 M min.
  • Page 10 V600 V600 Transmission Distance Specifications for Battery-less DCs Recommended combinations Installation Controller Transmission Condition for DC and R/W head mode distance Installation Data Carrier R/W Head Stationary Read/ Irrelevant 10 to 70 mm (max. axial V600-D23P71 V600-H07 These Data Carriers are for Write offset ±10 mm)
  • Page 11 Transmission Condition for DC and R/W head mode distance Installation Data Carrier R/W Head Stationary Read Transmis- 5 to 40 mm (max. axial V600-D23P66SP V600-H07 V600-H07/11/51 V600-D23P71/D23P72 R/W Head Data Carrier distance sion dis- offset ±10 mm) tance priority Transmis- 5 to 30 mm (max.
  • Page 12 V600 V600 Recommended combinations Installation Controller Transmission Condition for DC and R/W head mode distance Installation Data Carrier R/W Head Stationary Read Transmis- 2 to 19 mm (max. axial V600-D23P61 V600-H11/H11-R These Data Carriers can be distance sion dis- offset ±10 mm) installed on all surfaces.
  • Page 13 V600 V600 Recommended combinations Installation Controller Transmission Condition for DC and R/W head mode distance Installation Data Carrier R/W Head Stationary Read Transmis- 0.5 to 4.0 0.5 to 4.5 V600-D23P53 V600-HS51 These Data Carriers are for distance sion dis- mm (max.
  • Page 14 V600 V600 Recommended combinations Installation Controller Transmission Condition for DC and R/W head mode distance Installation Data Carrier R/W Head Stationary Read Transmis- 0.5 to 6.0 0.5 to 6.5 V600-D23P54 V600-HS51 These Data Carriers are for distance sion dis- mm (max.
  • Page 15 2. With Data Carriers that can be installed on metal surfaces (V600-D23P61/D23P53/D23P54), the transmission distance will vary depending on the metal used. The figures given in the table above are valid for iron (SC, SS). Refer to the section on installation in the Data Carrier or R/W Head Operation Manual or Supplement for more details.
  • Page 16 V600 V600 Transmission Distance Specifications for Built-in-battery DCs Recommended combinations Installation Controller Transmission Condition for DC and R/W head mode distance Installation Data Carrier R/W Head Stationary Flush- Irrelevant 10 to 50 mm (max. R/W head V600-D8KR12 V600-H07 mounted in axial offset ±10 mm)
  • Page 17 Flush-mounted on the influence of metal. in metal 20 mm max. All metal Combined with V600-H07 Combined with V600-H11 (Axis deviation: ±0 mm) (Axis deviation: ±0 mm) R/W Head Data Carrier R/W Head Data Carrier Above 100...
  • Page 18 Battery-less Compact DCs The values shown in the following graphs are in millimeters. Refer to pages 10 to 17 for details on Data Carrier and R/W Head mounting conditions. V600-D23P71 & V600-H07 V600-D23P71 & V600-H11 Read range (in transmission distance priority mode)
  • Page 19 V600 V600 V600-D23P53 & V600-HS51 V600-D23P53 & V600-HS61 V600-D23P53 & V600-H52 V600-D23P54 & V600-HS51 V600-D23P54 & V600-HS61 V600-D23P54 & V600-H52 V600-D23P55 & V600-H52 V600-D23P55 & V600-HS61 V600-D23P55 & V600-HS51 ー15 ー10 ー5 ー15 ー10 ー5 ー15 ー10 ー5 Read range (in transmission...
  • Page 20 V600 V600 Built-in-battery DCs V600-D8KR12 & V600-H07 V600-D8KR12 & V600-H11 V600-D8KR13 & V600-H07 V600-D8KR13 & V600-H11 V600-D8KR04 & V600-H07 V600-D8KR04 & V600-H11 V600-D8KR04 & V600-H11 Battery-replaceable DCs V600-D2KR16 & V600-H11 Note: Changing the direction of the DC will change the transmission range.
  • Page 21 These settings are valid only with Battery-less DCs. The lower-level communications mode setting is made on a DIP Switch on the Serial- interface Controller (V600-CA1A/CA2A/CF1A, or V600-CD1D-V2) or ID Sensor Unit. (Refer to the Controller’s Operation Manual for more details on this setting.) With Parallel-interface Controllers (V600-CA8A/CA9A) the mode is fixed to transmission distance priority.
  • Page 22 V600 V600 Temperature and Battery Life V600-D2KR16 • The battery life is two years at 25 C regardless of the relationship between the number of bytes read/written and the number of transmis- sions. Examples Showing Relationship between Battery Life and Temperature The following table shows the standard values.
  • Page 23 V600 V600 V600-H51 V600-H52 V600-HS51 Facing: 120 mm min. Facing: 80 mm min. Facing: 80 mm min. V600-HS61 V600-HS61 80 mm min. 120 mm min. 80 mm min. Side-by-side: 100 mm min. Side-by-side: 80 mm min. Side-by-side: 80 mm min.
  • Page 24 Mutual Interference between Proximity Sensors The V600-series Units use electromagnetic coupling (frequency: 530 kHz). When a V600 Unit is wired close to R/W Heads, Proximity Switches, and Sensors that have an oscillating frequency between 400 and 600 kHz, the Proximity Sensor may malfunction, so be sure to install the Units according to the distance restrictions specified in the following diagrams.
  • Page 25 When more than one Data Carrier is used, mutual interference between the DCs can be avoided by making sure that they are mounted apart at the distances specified below. V600-D23P53 V600-D23P54 R/W Head: V600-H52/HS51/HS61 R/W Head: V600-H52/HS51/HS61 40 mm min. 45 mm min.
  • Page 26 V600 V600 V600-D23P71 R/W Head: V600-H07 290 mm min. 210 mm min. V600-D8KR11 R/W Head: V600-H07 R/W Head: V600-H11/H12 200 mm min. 160 mm min. 200 mm min. 160 mm min. V600-D8KR12 R/W Head: V600-H07 R/W Head: V600-H11/H12 160 mm min.
  • Page 27 V600 V600 R/W Head: V600-H07 V600-D8KR13 R/W Head: V600-H11/H12 160 mm min. 180 mm min. 160 mm min. 180 mm min. R/W Head: V600-H07 V600-D8KR04 R/W Head: V600-H11 180 mm min. 220 mm min. 180 mm min. V600-D2KR16 R/W Head: V600-H11 150 mm min.

  • Page 28: Data Carriers

    V600 V600 Dimensions Note All units are in millimeters unless otherwise indicated. Data Carriers Built-in-battery DCs V600-D8KR12 V600-D8KR13 Two, 4.5-dia. Two, 4.5-dia. mounting holes mounting holes Case: ABS plastic Case: ABS plastic Filler: Epoxy plastic Filler: Epoxy plastic V600-D8KR04 Four, 4.5-dia.
  • Page 29 V600 V600 V600-D23P66SP V600-D23P66N Four, R6 Mounting Hole Dimensions Two, 5.5-dia. Mounting Hole Dimensions mounting holes Four, R4 Four, R3 Two, M5 Two, M3 Two, 3.5 dia. Two, 6 dia. Coating: PFA plastic 2.5 max. Case: PPS plastic V600-D23P71 V600-D23P72...
  • Page 30 Case: Brass Case: Brass Transmission window: ABS plastic Transmission window: ABS plastic Filler: Epoxy plastic Filler: Epoxy plastic Cable: PVC (oil-resistant) Cable: PVC (oil-resistant) V600-HA51 (Amplifier Section) Operating indicator (orange) Power indicator (green) 22.6 12.8 dia. 51.7 61.8 (10,000) Connector 13.7 dia.
  • Page 31 V600 V600 ID Controllers V600-P01 Monitor Unit V600-CA (Multipurpose) (For use with V600-CA and V620-CA A Controllers) Four, 4.3 dia. mounting holes V600-CD1D-V3 (Compact) V600-CB-US Hand-held ID Controller Two, 4.5 dia. V600-CM1D (Board-mounted) Four, 3.5 dia. R/W Head connector IDSC-C1D...
  • Page 32 V600 V600 ID Sensor Units and Adapters C500-IDS01-V2 Rack Dimensions (Reference) C500-IDS02-V1 C500-IDA02 Rack 34.5 C200H-IDS01-V1 Rack Dimensions (Reference) Rack 100.5 Approx. 200 Accessories Data Carrier Mounting Brackets Attachment V600-A81 V600-A86 Eight, R0.5 Material: PPS plastic (Four, 3.5 dia.) (Four, 5.5 dia.) Four, R5.5...
  • Page 33 V600 V600...
  • Page 34 V600 V600...
  • Page 35 V600 V600...
  • Page 36 V600 V600 ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. Q124-E1-1 In the interest of product improvement, specifications are subject to change without notice.
