P F
II. HYSICAL EATURES
6
5
4
3
2
1

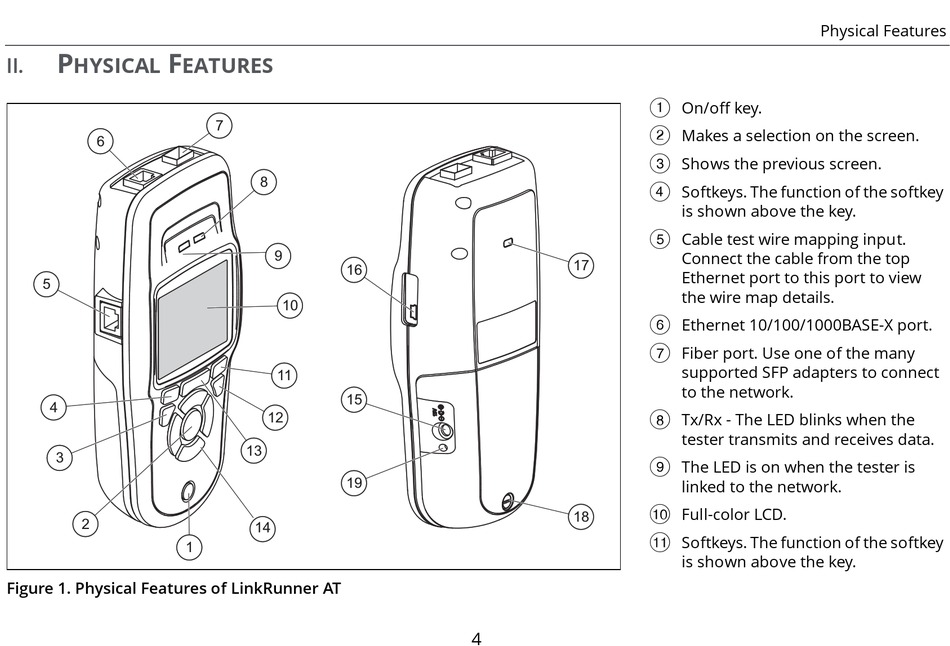

Figure 1. Physical Features of LinkRunner AT
7
8
9
16
10
11
15
12
13
19
14





17





18

4

Physical Features

On/off key.
Makes a selection on the screen.
Shows the previous screen.
Softkeys. The function of the softkey
is shown above the key.
Cable test wire mapping input.
Connect the cable from the top
Ethernet port to this port to view
the wire map details.
Ethernet 10/100/1000BASE-X port.
Fiber port. Use one of the many
supported SFP adapters to connect
to the network.
Tx/Rx - The LED blinks when the
tester transmits and receives data.
The LED is on when the tester is
linked to the network.
Full-color LCD.
Softkeys. The function of the softkey
is shown above the key.
