VLAN/MAC/Proxy Configuration

Select Tools > VLAN/MAC/Proxy Configuration.

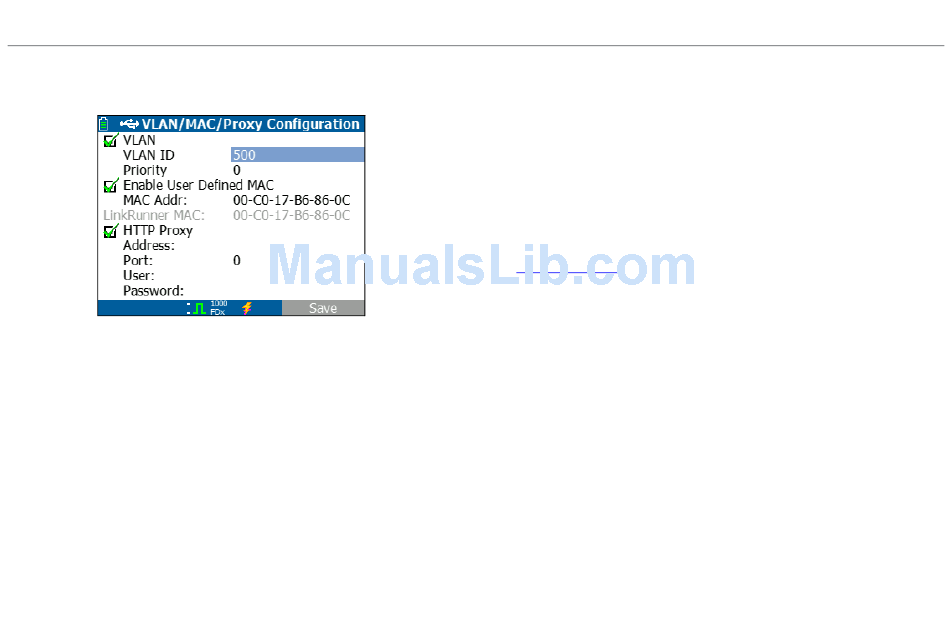

Figure 6. VLAN/MAC/Proxy Configuration Screen
This screen allows you to enable and enter the VLAN ID and
its Priority level. Un-check the VLAN check box to disable the
VLAN capability.
You can also enable and enter a user defined MAC address.
Un-check the Enable User Defined MAC check box to revert
the LinkRunner AT back to the factory default MAC address.
This screen also contains Proxy settings.
NOTE: To access the Proxy Configuration, your
LinkRunner AT must have firmware version 2.5.3 or later,
which also requires you to download and update
LinkRunner Manager software to version 1.0.9.1112.
To configure with your network's Proxy settings:
1 Select Address, enter your proxy server address, and
save (F2).
2 Select Port, enter your proxy server port number, and
save (F2).
3 If required, select User, enter your User ID, and save (F2).
4 If required, select Password, enter your proxy password,
and save (F2).
LinkRunner AT can now be claimed and then send test results
to Link-Live.com via the configured proxy server.
