Anest Iwata FG-6 Instruction Manual

ANEST IWATA Europe S.r.l.
46, Corso Vigevano 10155, Torino Italy
Direct Tel. +39 011 - 24 80 868
Fax +39 011 - 22 74 406
info@anest-iwataeu.com
www.anest-iwataeu.com
ANEST IWATA Italia S.r.l.
46, Corso Vigevano 10155, Torino (Italy)
Tel. diretto +39 011 - 24 80 868 - Fax +39 011 - 85 19 44
info@anest-iwataeu.com www.anest-iwata.it
ANEST IWATA Europe S.r.l.
SUCURSAL ESPAÑA Y PORTUGAL
Avda.del Maresme, 44-46 Planta 2 OF. 25 / 08918 - Badalona
(Barcelona)
Tel.:+34 933 20 59 93 - Fax.:+34 933 20 55 64 - info@anest-iwata.es
ANEST IWATA Deutschland
Mommsenstrasse 5
04329 Leipzig
Telefon: +49 (0)341 241 44 30 - Fax: +49 (0)341 252 55 95
f.e.anest-iwata@t-online.de www.anest-iwata.de
European Sales Branches:
ANEST IWATA Scandinavia AB.
Ögärdesvägen 6C, 433 30 PARTILLE
Tel. +46 (0)31 - 340 28 60 - Fax +46 (0)31 - 340 28 69
info@anest-iwata.se www.anest-iwata.se
ANEST IWATA France S.A.
25 rue de Madrid - BP 7405 38074 St Quentin Fallavier
Tél. +33 (0)4 - 74 94 59 69 - Fax +33 (0)4 - 74 94 34 39
info@anest-iwata.fr www.anest-iwata.fr
ANEST IWATA U.K. Ltd.
Unit 10 Little End Road - Eaton Socon
St. Neots - CAMBRIDGESHIRE
PE19 8JH
Tel.: +44 (0) 1480 405419 Fax: +44 (0) 1480 217610
enquiries@anest-iwata.co.uk www.anest-iwata.co.uk

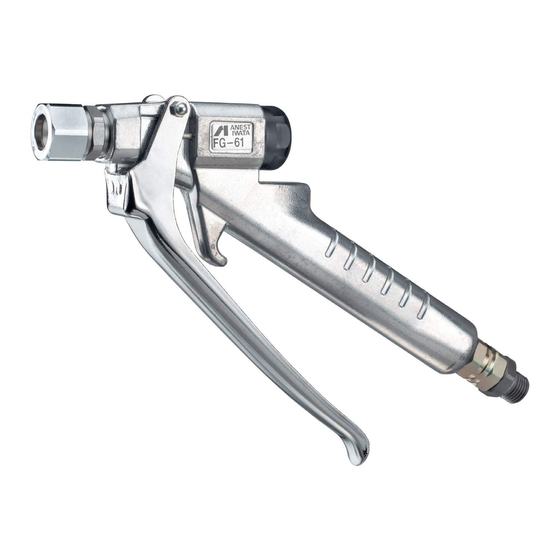

FG-6 / FG-61 / FG-62
FLOW GUN
Before use, adjustment or maintenance, it is important to read this instruction manual very
GB
carefully. This manual must be stored in a safe place for any future reference that may be necessary.
This ANEST IWATA flow guns kit complies to ATEX regulations 94/9/EC.
Protection level: II 2 G X Suitable for using Zones 1 and 2.
X marking: Any static electricity discharge from the flow gun is to be diverted to the ground via the conductive air hose as stipulated.
IMPORTANT
This flow gun should be operated only by an adequately trained operator, for safe use and maintenance of the equipment. Any
misuse or handling other than those indicated in this Instruction Manual is not covered by guarantee. ANEST IWATA disclaims all
responsibility for any accident or damage caused by failure to observe the operational and safety procedures as from this man-
ual. In the interest of user friendliness, this manual contains information in a brief and concise form.
For any additional information you may require regarding flow guns operations, or if any missing parts or any damage during
transportation is found, please contact your nearest ANEST IWATA Company (see last cover page).
Be sure to observe warnings and cautions in this instruction manual.
If not, it can cause paint ejection and serious bodily injury by drawing organic solvent.
Be sure to observe following marked items which are especially important.
WARNING Indicates a potentially hazardous situation which, if not avoided, may result in serious injury or loss of life.
CAUTION Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or pro-
perty damage.
IMPORTANT Indicates notes which we ask you to observe. The safety precautions in this instruction manual are the mini-
mum necessary conditions. Follow national and local regulations regarding fire prevention, electricity and
safety as well as your own company regulations.
IMPORTANT SPECIFICATIONS
Max. Pressure: 250 bar (3600 PSI)

TECHNICAL SPECIFICATIONS

Max. Operating Use
Model pressure Nozzle Orifice
bar (PSI)
FG-6
Sealants &
FG-61 250 (3600)
Adhesives
(High Viscosity)
FG-62
Manufactured by:
ANEST IWATA Corporation 3176,Shinyoshida-cho, Kohoku-ku, Yokohama, 223-8501 Japan
Instruction Manual
Max. Temperature:
Atmosphere 5 ~ 40 °C
Air and fluid 5 ~ 43 °C
Size of Shape of tip Fluid Hose
of fluid needle
connection
NPS 3/8"
Ø 3.0 Tapered seat G 1/4"
G 3/8"
Mass
g (lbs)
440 (0.97)
