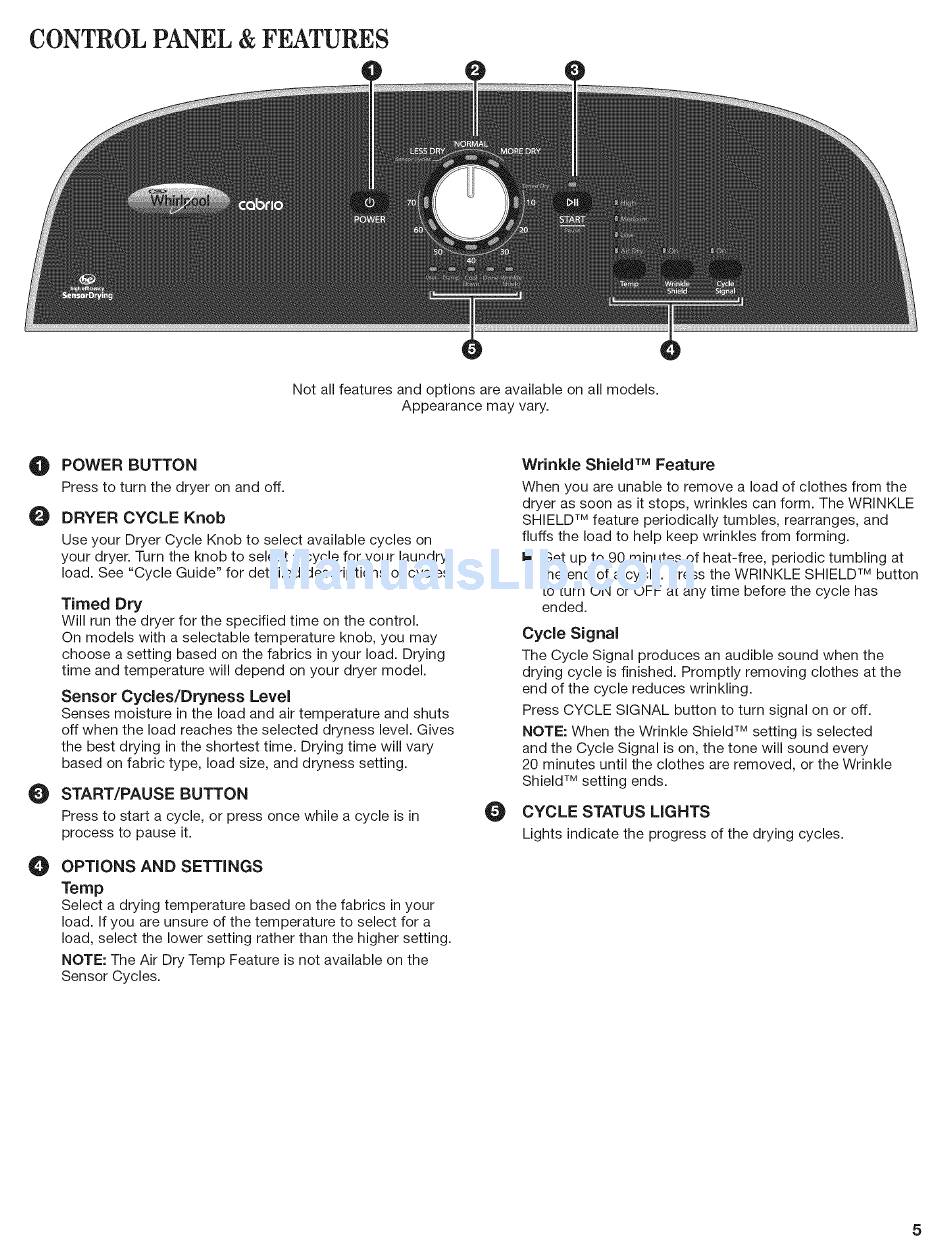

CONTROL PANEL & FEATURES
O
Not all features and options are available on all models.
Appearance
may vary.
O
O
POWER BUTTON
Press to turn the dryer on and off.
DRYER
CYCLE
Knob
Use your Dryer Cycle Knob to select available cycles on
your dryer. Turn the knob to select a cycle for your laundry
load. See "Cycle Guide" for detailed descriptions
of cycles.
Timed
Dry
Will run the dryer for the specified time on the control.
On models with a selectable temperature
knob, you may
choose a setting based on the fabrics in your load. Drying
time and temperature
will depend on your dryer model.
Sensor
Cycles/Dryness
Level
Senses moisture in the load and air temperature
and shuts
off when the load reaches the selected dryness level. Gives
the best drying in the shortest time. Drying time will vary
based on fabric type, load size, and dryness setting.
START/PAUSE
BUTTON
Press to start a cycle, or press once while a cycle is in
process to pause it.
OPTIONS
AND SETTINGS
Temp
Select a drying temperature
based on the fabrics in your
load. If you are unsure of the temperature to select for a
load, select the lower setting rather than the higher setting.
NOTE: The Air Dry Temp Feature is not available on the
Sensor Cycles.
Wrinkle
Shield
TM
Feature
When you are unable to remove a load of clothes from the
dryer as soon as it stops, wrinkles can form. The WRINKLE
SHIELD
TM
feature periodically tumbles, rearranges, and
fluffs the load to help keep wrinkles from forming.
[] Get up to 90 minutes of heat-free, periodic tumbling at
the end of a cycle. Press the WRINKLE SHIELD
TM
button
to turn ON or OFF at any time before the cycle has
ended.
Cycle
Signal
The Cycle Signal produces an audible sound when the
drying cycle is finished. Promptly removing clothes at the
end of the cycle reduces wrinkling.
Press CYCLE SIGNAL button to turn signal on or off.
NOTE: When the Wrinkle Shield
TM
setting is selected
and the Cycle Signal is on, the tone will sound every
20 minutes until the clothes are removed, or the Wrinkle
Shield
TM
setting ends.
O
CYCLE STATUS LIGHTS
Lights indicate the progress of the drying cycles.
