Installation

Venting the Pellet Stove

• PELLET VENT MUST MAINTAIN A MINIMUM 3" CLEARANCE TO ANY
COMBUSTIBLE (INSTALL VENT AT CLEARANCES SPECIFIED BY THE
VENT MANUFACTURER).
• D O NOT CONNECT THE PELLET VENT TO A VENT SERVING ANY
OTHER APPLIANCE OR STOVE.
• DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING SYSTEM
OF THIS UNIT.
• USE AN APPROVED WALL THIMBLE WHEN PASSING THE VENT
THROUGH WALLS AND A CEILING SUPPORT/FIRE STOP SPACER
WHEN PASSING THE VENT THROUGH CEILINGS (MAKE SURE TO
MAINTAIN 3" CLEARANCE TO ANY COMBUSTIBLES.
• No more than one tee and 180 of elbows (one tee with two 90 elbows, one tee with one
90 and two 45 elbows, etc.).
Maximum Venting
Distance
• Vent must have a support
bracket every 5' of pellet vent
when exterior of structure
© Travis Industries
(For Qualified Installers Only)

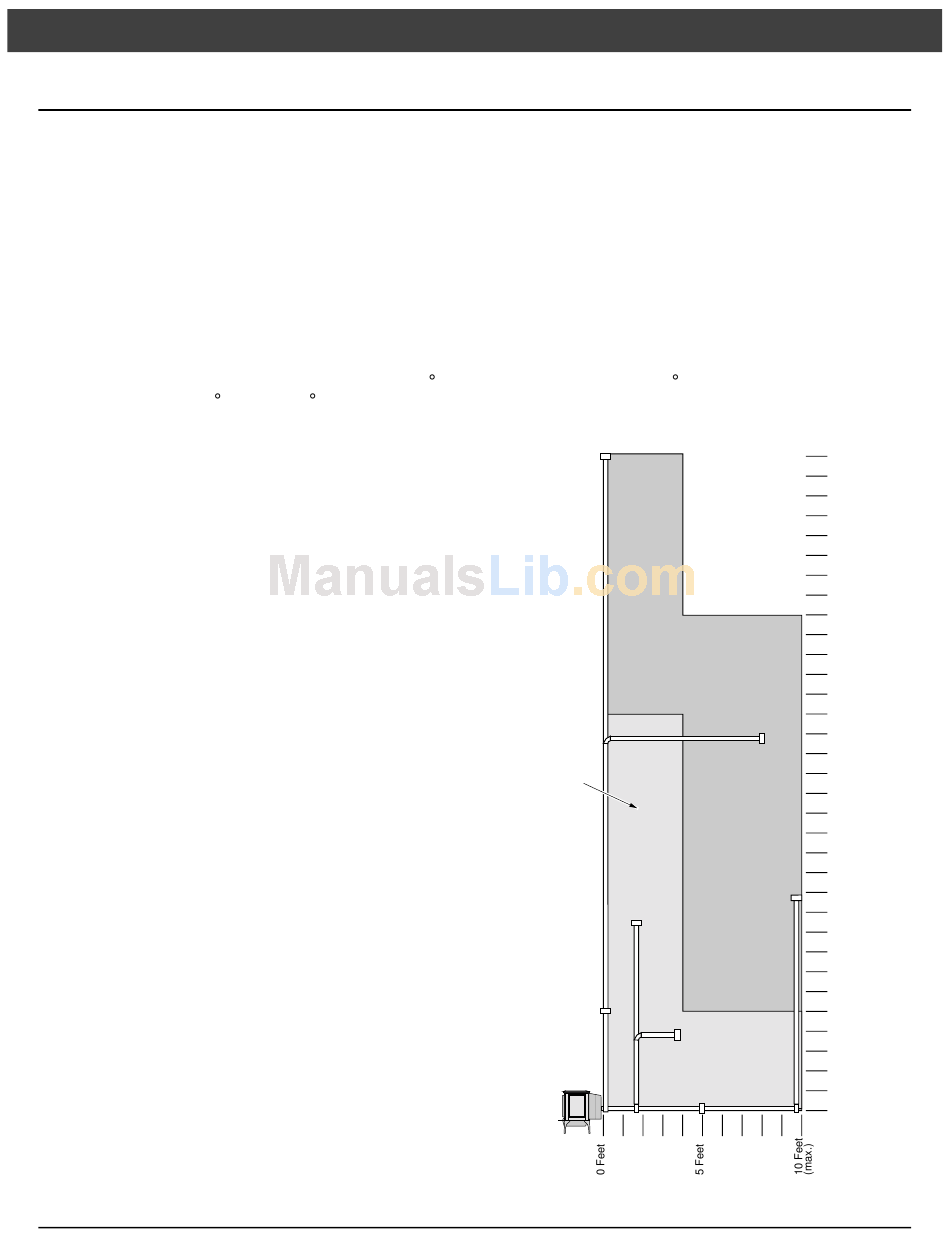

The vent height and run
must not exceed the
distance shown in the
shaded region shown to the
right.
Venting into this shaded
area may require restrictor
adjustments. See the
section "Restrictor
Adjustment" for details.
NOTE: To achieve optimum
performance, we
recommend keeping the
vent as short as possible
(horizontal run especially).
4070806
33 Feet
(max.)
30 Feet
25 Feet
20 Feet
15 Feet
10 Feet
5 Feet
0 Feet
1 0 0 - 0 1 1 9 1 _ 0 0 0
