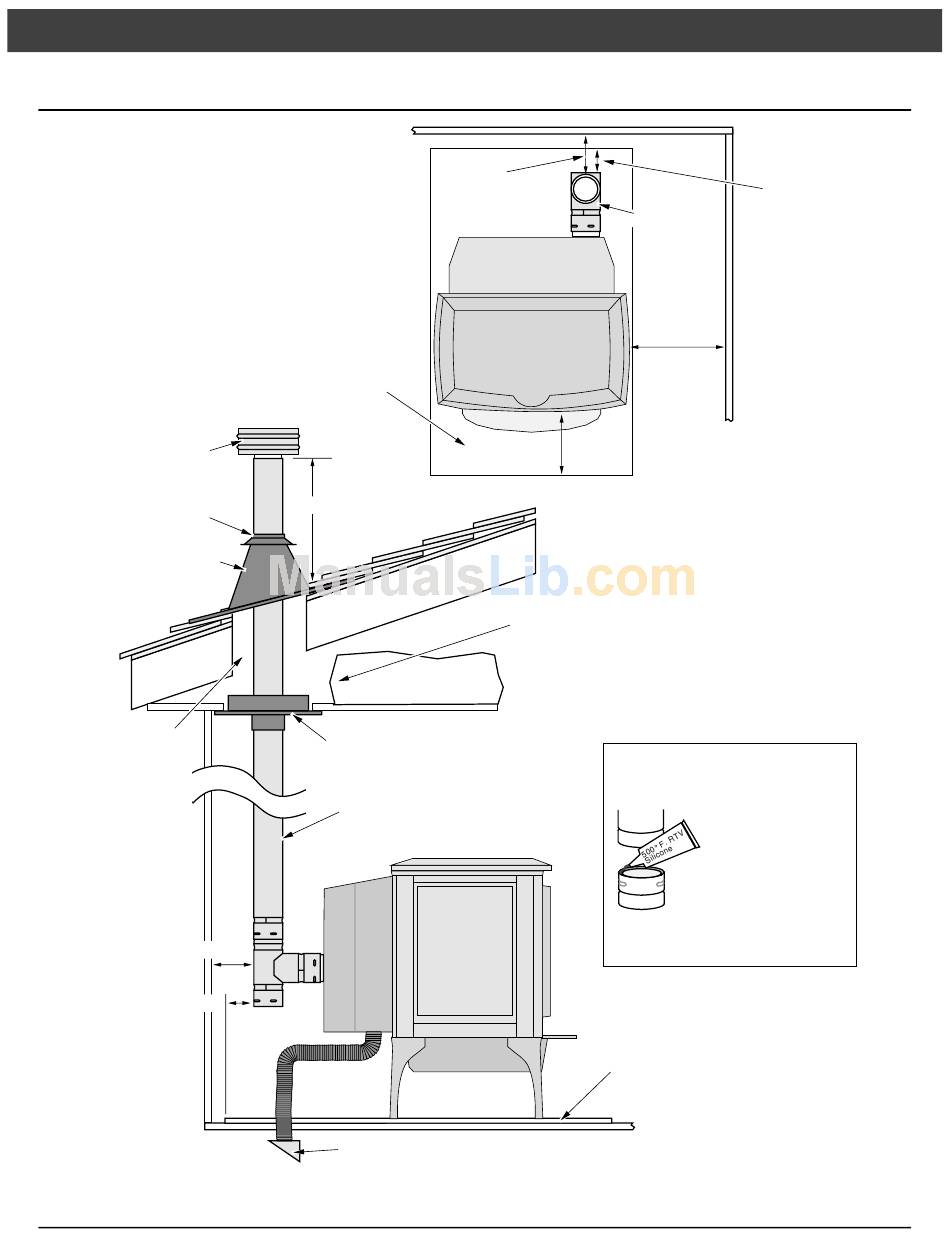

Installation Example: Interior Vertical Installation

Vertical Cap
Storm Collar
Roof Flashing
Vent must
maintain 3"
clearance to
combustibles.
3" Min.
2" Min.
© Travis Industries
(For Qualified Installers Only)
Minimum
Floor Protection
24" Minimum
Ceiling Support / Fire Stop Spacer
"L" Vent
Outside air may be drawn from
a ventilated crawl space.
4070806
3"
"Tee"
7" Minimum
6" Minimum
Insulation
must maintain
3" clearance.
Floor Protection
2"
Minimum
Seal each vent
section (including
adapters, elbows,
etc...) by injecting a
liberal amount of
500° F. RTV
silicone into the gap
between sections.
