Installation
1 4

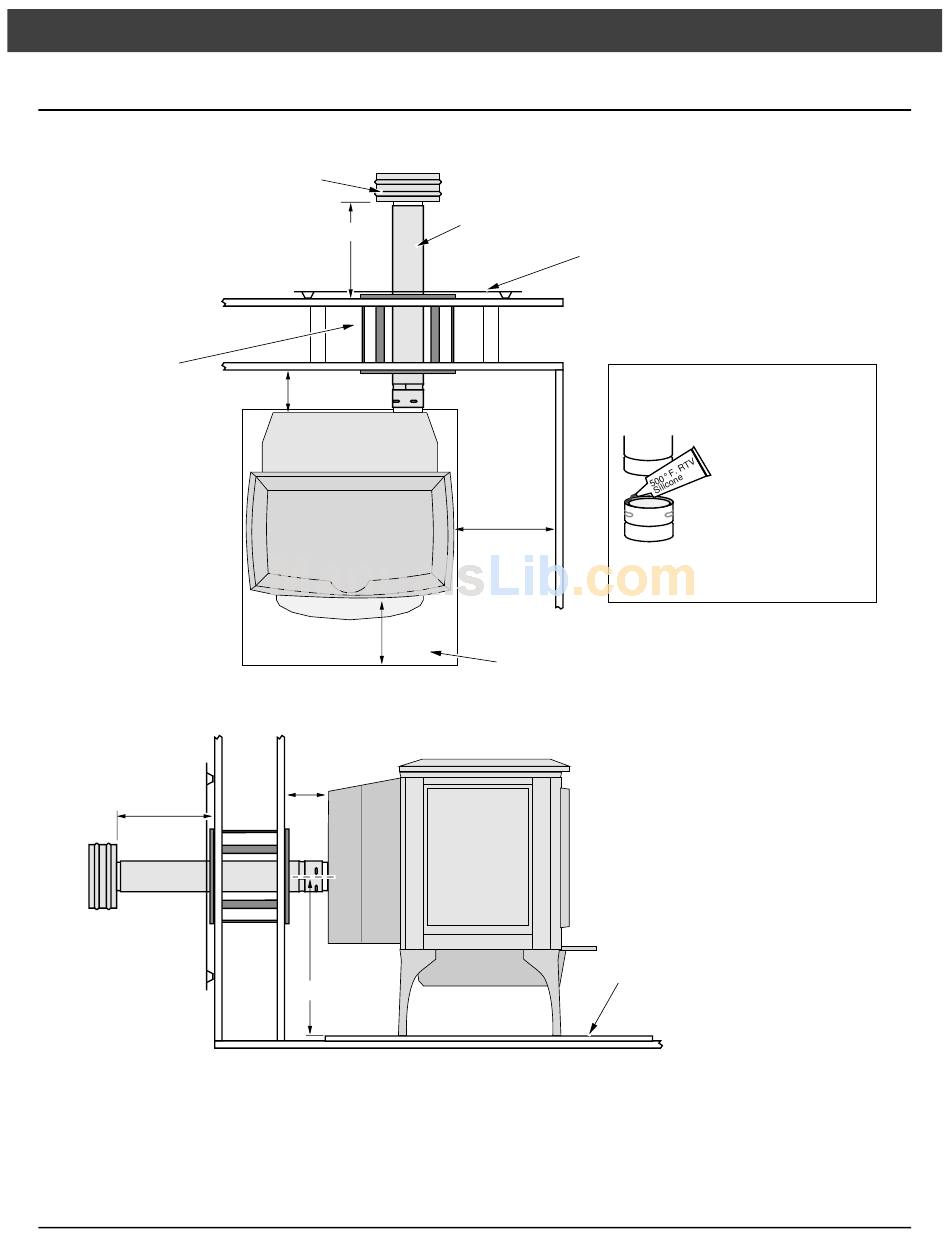

Installation Example: Direct "Through-the-wall" Installation
Horizontal Rain Cap
Wall Thimble
(note 3" clearance
between vent and
combustibles)
12"
Minimum
© Travis Industries
(For Qualified Installers Only)
Type "L" Vent
12" Minimum
3" Minimum
7" Minimum
6" Minimum
3" Minimum
17-1/4"
4070806
House Shield (used to protect
exterior wall from soot
discoloration) is HIGHLY
RECOMMENDED
Floor Protection
Floor Protection
Seal each vent
section (including
adapters, elbows,
etc...) by injecting a
liberal amount of
500° F. RTV
silicone into the gap
between sections.
1 0 0 - 0 1 1 9 1 _ 0 0 0
