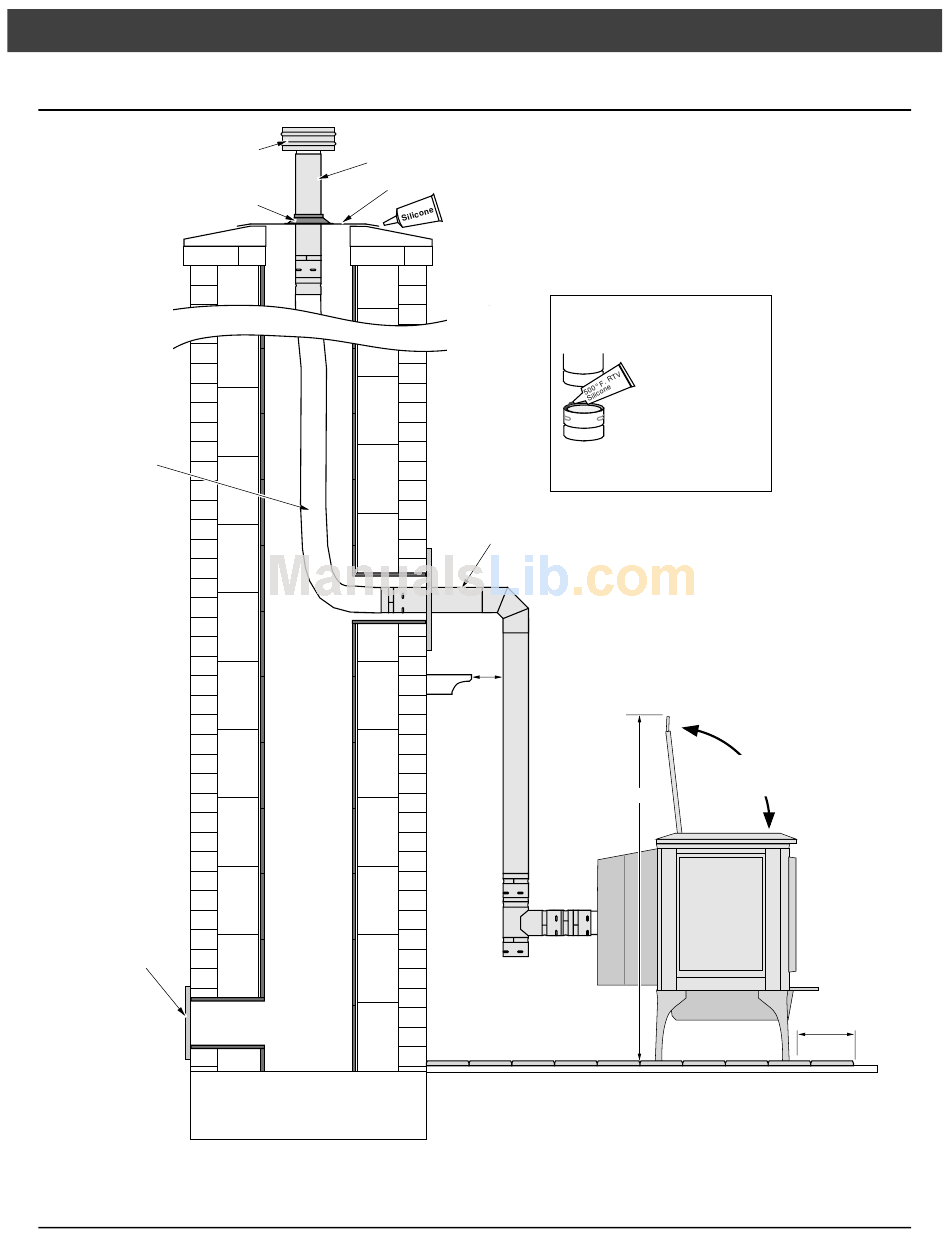

Installation Example: Freestanding Masonry Chimney

Vertical Cap
Storm Collar
"L" Vent Flex
Section
Clean-Out Access
© Travis Industries
(For Qualified Installers Only)
"L" Vent
Cover Plate (non-combustible)
Seal the cover
plate with silicone.
"L" Vent
Sections
3"
Minimum
4070806
Seal each vent
section (including
adapters, elbows,
etc...) by injecting a
liberal amount of
500° F. RTV
silicone into the gap
between sections.
Allow room for the
hopper lid to open
44"
6" Min.
