Installation

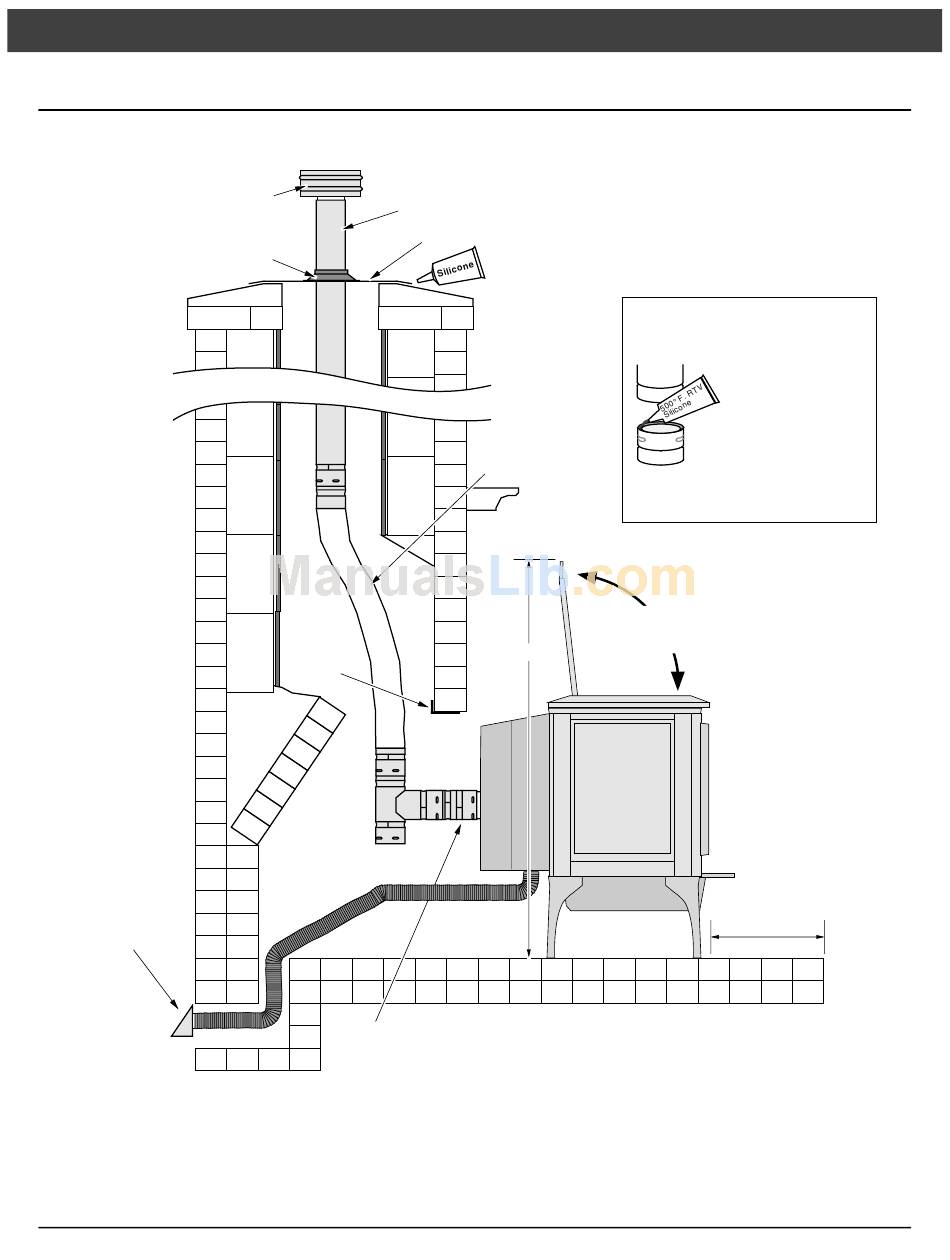

Installation Example: Masonry Fireplace Hearth Stove

Vertical Cap
Storm Collar
Outside air
may be
drawn from
the ash
cleanout.
© Travis Industries
(For Qualified Installers Only)
"L" Vent
Cover Plate (non-combustible)
Lintel
NOTE: you may need a short horizontal section here to
clear the lintel and allow the hopper lid to open.
4070806
Seal the cover
plate with silicone.
"L" Vent Flex
Section
Allow room for the
hopper lid to open
44"
Seal each vent
section (including
adapters, elbows,
etc...) by injecting a
liberal amount of
500° F. RTV
silicone into the gap
between sections.
6" Min.
