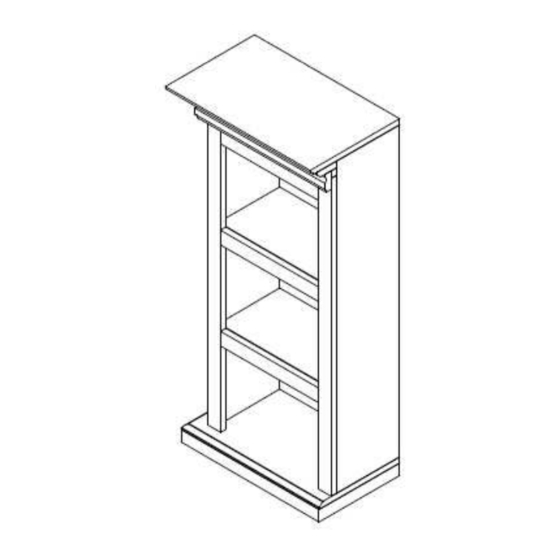

- Page 1 Tennyson Pair of Bookcases FA8545BRTX-Classic Espresso For assistance with assembly contact: Southern Enterprises Inc. Assembly Instructions Customer Service 1-800-633-5096 service@seidal.com www.seidal.com...
- Page 2 PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Left Bookcase Top Front Frame Right Bookcase Top Fixed Shelf Left Side of Left Bookcase Left Bookcase Base Right Side of Right Bookcase Right Bookcase Base Left Side of Right Bookcase Back Panel Right Side of Left Bookcase...
- Page 3 HARDWARE CONTENTS Cam Lock Cam Bolt Wood Dowel Flat Head Long Screw Qty:24 Qty:24 Qty:32 Qty:12 Cover Wood Screw Qty:32 Qty:16 Phillips screwdriver (not included).
- Page 4 ASSEMBLY INSTRUCTIONS 1. Insert 8pcs cam bolts (A), 16pcs wood dowels (B) into predrilled holes on insides of left and right sides of bookcases (3, 4, 5, 6) and fit into corresponding holes on ends of fixed shelves (8). Insert 8pcs cam locks (C) into corresponding holes on underside of fixed shelves (8) with slot for screwdriver facing outward.
- Page 5 ASSEMBLY INSTRUCTIONS 3. Insert 4pcs cam bolts (A), 8pcs wood dowels (B) into predrilled holes on upside of left and right bases (9, 10), and fit into corresponding holes on bottom edges of left and right sides of bookcases (3, 4, 5, 6). Insert 4pcs cam locks (C) into corresponding holes on insides of left and right sides of bookcases (3, 4, 5, 6) with slot...
- Page 6 ASSEMBLY INSTRUCTIONS 5. Attach the back panels (11) onto the units by using 32pcs wood screws (F). HARDWARE USED Wood Screw x 32 6. Place the Tennyson bookcases beside the Tennyson fireplace.
- Page 7 90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
