INTRODUCTION

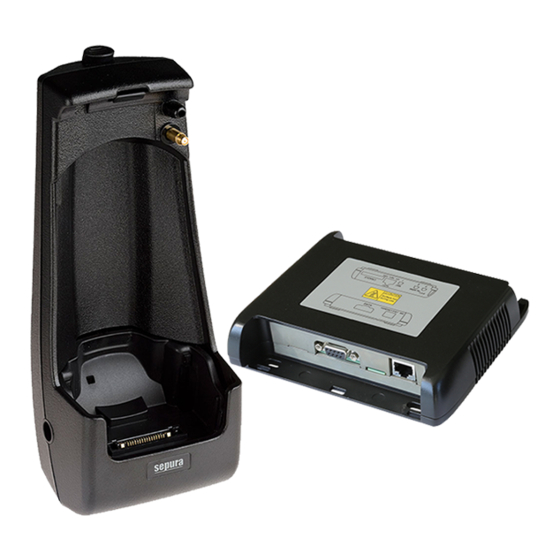

The STP8000 car kit provides secure retention of the radio within a cradle. The car kit features battery charging, external
antenna connection, external PTT keypad, hands-free operation with the external microphone and loudspeaker. A standard
RS232 data port and USB is provided for data transfer applications. Connections are provided for optional accessories.

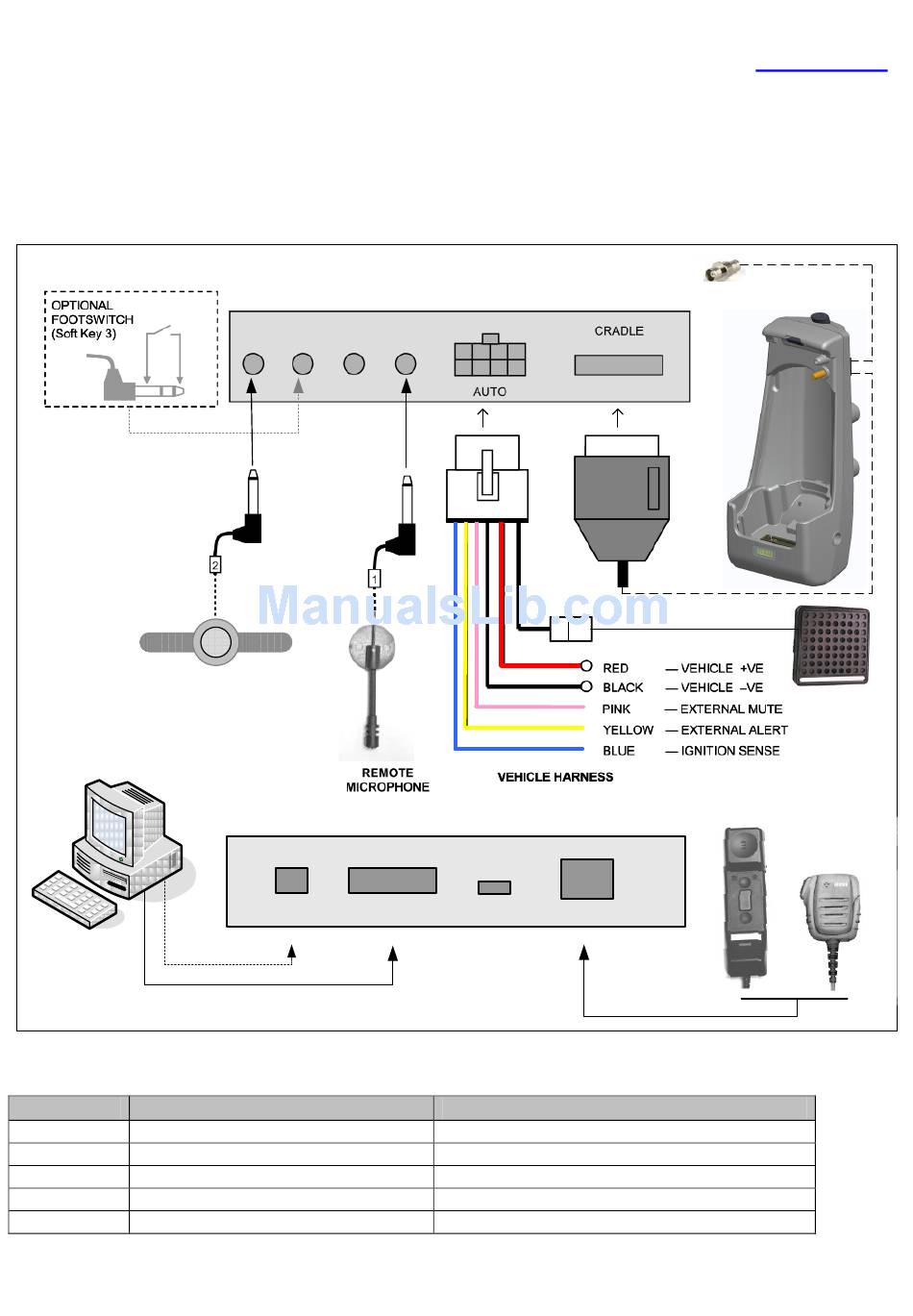

REMOTE PTT
Cable colour
Electrical parameters
RED
Vehicle +ve (12v MAX)
Vehicle –ve (vehicle chassis)
BLACK
PINK
Open drain Output, max current 0.5A
YELLOW
Open drain Output, max current 0.5A
BLUE
Input Signal Level 12VDC (200 uA max)
STP8000 Series CAR KIT
Installation & USER GUIDE
Rear INTERFACE UNIT (vehicle harness)
ALARM
SMIC
MIC
Front INTERFACE UNIT (user interface)
USB
DATA (RS232)
Connections for accessories
sepura
SXC
HANDSET/FIST MIC
Fuse
4 Amp
n/a
Protected by a re-settable fuse provided inside car kit
Protected by a re-settable fuse provided inside car kit
1 Amp
sepura
Antenna
50Ω
CRADLE
Loudspeaker Output
or
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sepura STP8000 Series
Summary of Contents for Sepura STP8000 Series
- Page 1 STP8000 Series CAR KIT INSTALLATION & USER GUIDE INTRODUCTION The STP8000 car kit provides secure retention of the radio within a cradle. The car kit features battery charging, external antenna connection, external PTT keypad, hands-free operation with the external microphone and loudspeaker. A standard RS232 data port and USB is provided for data transfer applications.
- Page 2 STP8000 Series CAR KIT INSTALLATION & USER GUIDE Information Prolonged operation at high volume levels may cause The STP8000 car kit is designed for 12 V negative earth the interface unit to become hot. systems. In vehicles with a 24 V supply, an approved converter must be used, NOT a 12 V tap on the battery.
- Page 3 The recom- mended position is in the passenger footwell, facing the This item is not supplied by Sepura plc. A suitable switch will driver. be terminated in a 3.5 mm stereo jack plug with the switch...
- Page 4 STP8000 Series CAR KIT INSTALLATION & USER GUIDE Optional Functions Using the STP8000 series with the car kit The following functions are provided as standard and will be connected if specified prior to installation. All of the controls on the radio function as normal. Calls can be initiated, answered and ended by using the controls on ...
