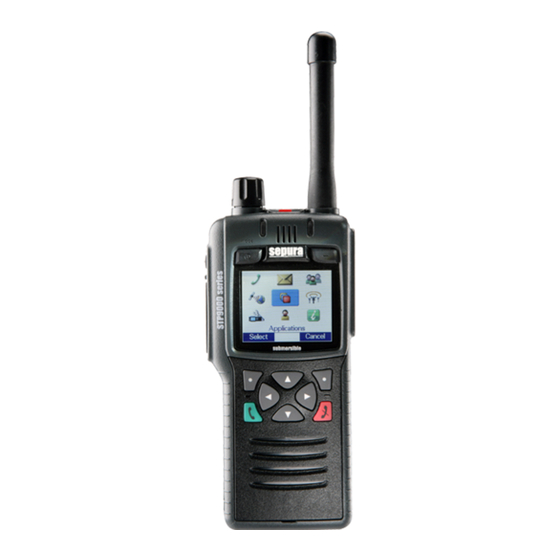

Sepura STP9000 Product Manual

Tetra terminals, stp / srh3000 series
Hide thumbs Also See for STP9000:
Table of Contents

Advertisement

Quick Links

sepura
TETRA Terminals
Product Guide
MOD-10-1164
Issue 11
© SEPURA PLC 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STP9000 and is the answer not in the manual?

Questions and answers

Related Manuals for Sepura STP9000

Summary of Contents for Sepura STP9000

  • Page 1 TETRA Terminals Product Guide MOD-10-1164 Issue 11 © SEPURA PLC 2012...

  • Page 2: Table Of Contents

    HEALTH AND SAFETY ________________________________________ 39 User Information __________________________________________________________ 39 Compliance with Standards ________________________________________________ 43 GLOSSARY _________________________________________________ 44 ACKNOWLEDGEMENTS ______________________________________ 45 NOTICE ____________________________________________________ 46 Contact Details ___________________________________________________________ 46 TETRA Terminals 14-09-2012 Page 2 of 46 Product Guide Issue 11 © Sepura plc 2012...

  • Page 3: Conventions

    Note icon. Emphasises related, reinforcing, or important information. Tip icon. Suggests alternative methods for accomplishing tasks or procedures. Caution icon. Indicates actions or processes that require caution from the user. TETRA Terminals 14-09-2012 Page 3 of 46 Product Guide Issue 11 © Sepura plc 2012...

  • Page 4: Regulatory Statements

    The STP8X radio complies with the following specifications for operation in a dust environment: International IECEx Specifications: Ex ib IIIC T90°C Db (-20°C<=Ta <= +55°C) European ATEX Specification II 2D Ex ib IIIC T90°C (-20°C<=Ta<=+55°C) Db IP6x TETRA Terminals 14-09-2012 Page 4 of 46 Product Guide Issue 11 © Sepura plc 2012...

  • Page 5: North American And Canadian Markets

    The equipment has been impact tested according to the low risk of mechanical danger. Care should be taken to avoid mechanical impact. Use only Sepura approved batteries, antennas and accessories. The battery pack must not be removed or replaced in the hazardous area.
  • Page 6 This radio device is NOT authorized for general population, consumer or similar use. TETRA Terminals 14-09-2012 Page 6 of 46 Product Guide Issue 11 © Sepura plc 2012...

  • Page 7: Marchés Nord-Américain Et Canadien

    Pour assurer que l'exposition aux radiofréquences du grand public soit réduit au minimum et que le niveau soit maintenu en dessous des normes acceptées, toute installation d'antenne doit être effectuée en référence au document SPR-DOC-0360 - Sepura "Guide d'installation d’antennes en véhicules"...
  • Page 8 Ce dispositif radio N’EST PAS autorisé pour l’ensemble de la population, les consommateurs en général, ni pour une utilisation similaire. TETRA Terminals 14-09-2012 Page 8 of 46 Product Guide Issue 11 © Sepura plc 2012...

  • Page 9: Operational Requirements

    IP54 SRG3900 The STP9000 Series, STP8000 Series and STP8X radios have been tested for a full 8 hour shift in IP54 conditions. This is equivalent to 8 hours of constant rain. The SRH3900 radio has been tested in IP54 conditions equivalent to 2 hours of driving rain.

  • Page 10: Handheld Radio Range

    MOD-10-1164 HANDHELD RADIO RANGE STP Series Radios SRH3000 Series Radios TETRA Terminals 14-09-2012 Page 10 of 46 Product Guide Issue 11 © Sepura plc 2012...

  • Page 11: Stp Series Radios

    Left Context Key Right Context Key Navigation Keys Cancel / Home Key Select / Send Key Duplex Microphone Alphanumeric Keypad (with Half-Duplex speaker behind) Facility Connector TETRA Terminals 14-09-2012 Page 11 of 46 Product Guide Issue 11 © Sepura plc 2012...
  • Page 12 Rugged Accessory Connector Left Context Key Right Context Key Navigation Keys Cancel / Home Key Select / Send Key Duplex Microphone Half-Duplex speaker Facility Connector TETRA Terminals 14-09-2012 Page 12 of 46 Product Guide Issue 11 © Sepura plc 2012...
  • Page 13 Rugged Accessory Connector Soft Key Soft Key Navigation Keys Cancel / Home Key Select / Send Key Soft Keys Duplex Microphone Half-Duplex speaker Facility Connector TETRA Terminals 14-09-2012 Page 13 of 46 Product Guide Issue 11 © Sepura plc 2012...
  • Page 14 Rugged Side Connector (with cover) Left Context Key Right Context Key Navigation Keys Cancel / Home Key Select / Send Key Duplex Microphone Half-Duplex speaker Soft Keys TETRA Terminals 14-09-2012 Page 14 of 46 Product Guide Issue 11 © Sepura plc 2012...
  • Page 15 REAR Space for User identity label Antenna Programmable Soft Antenna Connection (shown with cover) RFID and IP67 indication (STP9000 Series only) Carrying aid attachment point Battery Battery release clip TETRA Terminals 14-09-2012 Page 15 of 46 Product Guide Issue 11...
  • Page 16 To ensure optimal performance from your radio during half duplex calls (individual or group) please hold the radio vertically, with the half duplex microphone situated approximately 5cm away from the mouth. TETRA Terminals 14-09-2012 Page 16 of 46 Product Guide Issue 11 © Sepura plc 2012...
  • Page 17 SIM Card holder/Micro SD card cover (closed) The SIM Card holder/Micro SD card cover in the STP8000, STP8100 and STP8200 is opened by pulling the flap, and in the STP9000 Series and STP8X radios a small PH0 jewellers screwdriver is needed to remove the screw.
  • Page 18 NTENNA For STP8X radios a Sepura approved ATEX/IECEx Antenna must be used. The radio must not be operated without an antenna fitted. Do not fit, remove or replace the antenna in a hazardous environment! To ensure that a seal is maintained between the antenna and the Radio, screw on antenna until contact is made and follow with a minimum ¼...
  • Page 19 UGGED ONNECTOR For STP8X radios Sepura approved ATEX/IECEx Accessories must be used. The radio must not be operated unless an accessory is attached or the RuSC Cover is screwed in place and Accessories and the RuSC cover must not be fitted, or removed or replaced while in a hazardous environment.
  • Page 20 New battery packs must be fully charged before they are used. The battery should only be charged using Sepura plc approved battery chargers. Failure to use an approved battery charger may invalidate the warranty of the battery and the radio.
  • Page 21 When the radio is switched on the battery is tested to check that it is an authentic Sepura battery. This information may be viewed on the Battery card in the Radio Information menu.
  • Page 22 The precautions below apply to most/all Lithium polymer battery packs and chargers. When the radio is switched on the battery is tested to check that it is an authentic Sepura battery and, if so, information about the battery may be viewed on the Battery card in the Radio Information menu.
  • Page 23 The amount of charge in a battery, shown as a percentage, is displayed on the Battery card in the Radio Information menu. Please see section on Radio Information in the Sepura TETRA Radios User Guide. Low Battery Warning...

  • Page 24: Stp Series Belt Clip And "Klick Fast" Stud

    The Belt Clip Spring TETRA Terminals 14-09-2012 Page 24 of 46 Product Guide Issue 11 © Sepura plc 2012...
  • Page 25 The “Klick Fast” Stud may be attached to the radio in the same way as the belt clip and detached in a similar way by compressing the spring (which may be plastic) with the thumb or thumb nail. TETRA Terminals 14-09-2012 Page 25 of 46 Product Guide Issue 11 © Sepura plc 2012...
  • Page 26 MOD-10-1164 Attempting to remove the belt clip or stud without compressing the spring sufficiently may result in damage to the accessory or to the radio. TETRA Terminals 14-09-2012 Page 26 of 46 Product Guide Issue 11 © Sepura plc 2012...

  • Page 27: Srh3500, Srh3800, Srh3900

    Tri - Colour LED Mode Key Duplex Earpiece and Half - Duplex Microphone Navigation Keys Cancel/Home Key Select/Send Key Alphanumeric Keypad Duplex Microphone Facility connector TETRA Terminals 14-09-2012 Page 27 of 46 Product Guide Issue 11 © Sepura plc 2012...
  • Page 28 MOD-10-1164 Half duplex loudspeaker Antenna User identity label recess Carrying aids Audio mounting points Accessories Socket Battery Battery release clip TETRA Terminals 14-09-2012 Page 28 of 46 Product Guide Issue 11 © Sepura plc 2012...
  • Page 29 The battery is fully secure when this catch has clipped into position. To remove, push the catch upward towards the top of the hand-held. The battery pack unclips and can then be removed. TETRA Terminals 14-09-2012 Page 29 of 46 Product Guide Issue 11 © Sepura plc 2012...
  • Page 30 MOD-10-1164 Battery Charging The battery should only be charged with Sepura plc approved battery chargers. Failure to use an approved battery charger will invalidate the warranty of the battery and the hand-held. A range of battery chargers is available that allow the battery...
  • Page 31 4. Sepura batteries are designed to be rugged and to give good service. However, as is the case for all Li-ion batteries, it is possible for extreme mechanical damage to weaken the internal structure of the cells within the battery.

  • Page 32: Mobile / Gateway Radio Range

    MOD-10-1164 MOBILE / GATEWAY RADIO RANGE SRG3000 Series Transceivers SRG3000 Series Consoles Applications Interface Unit TETRA Terminals 14-09-2012 Page 32 of 46 Product Guide Issue 11 © Sepura plc 2012...

  • Page 33: Srg3000 Mobile / Gateway Transceiver

    Colour Console, Standard Console or Handset Based Console Unit Applications Interface Unit The Mobile or Gateway Radio should be installed by following the instructions in the Installation Guide. TETRA Terminals 14-09-2012 Page 33 of 46 Product Guide Issue 11 © Sepura plc 2012...

  • Page 34: Standard Console

    Soft Key Select/Send Key (Default is Missed Navi-knob™ (rotate) Blue LED Event Key) Mode Key (press) Navigation Keys Emergency TRI-Colour Alphanumeric Context Keys Keypad Cancel/Home Key TETRA Terminals 14-09-2012 Page 34 of 46 Product Guide Issue 11 © Sepura plc 2012...

  • Page 35: Handset Based Console

    MOD-10-1164 ANDSET ASED ONSOLE Front Navi-Keys Emergency Key Mode Key Navigation Keys Select/Send Key Cancel/Home Key Alphanumeric Keypad Rear Earpiece Microphone TETRA Terminals 14-09-2012 Page 35 of 46 Product Guide Issue 11 © Sepura plc 2012...

  • Page 36: Applications Interface Unit

    In addition to the above, the Colour Console also supports: TETRA Terminals 14-09-2012 Page 36 of 46 Product Guide Issue 11 © Sepura plc 2012...

  • Page 37: Mobile / Gateway Radio Audio Control

    The audio presentation for duplex calls depends on the capability of the controlling accessory. With a duplex controlling accessory, duplex calls have a duplex presentation. With a half duplex accessory, duplex calls are controlled using the PTT key. TETRA Terminals 14-09-2012 Page 37 of 46 Product Guide Issue 11 © Sepura plc 2012...

  • Page 38: Radio Operation

    MOD-10-1164 RADIO OPERATION See the Sepura TETRA Radios User Guide for information regarding the user operation of the radios. TETRA Terminals 14-09-2012 Page 38 of 46 Product Guide Issue 11 © Sepura plc 2012...

  • Page 39: Health And Safety

    Any accessory used that is not supplied or approved by Sepura plc could cause damage to the radios and may invalidate the warranty. For safety reasons Sepura plc do not recommend that accessories be used with a radio without first gaining approval from Sepura plc to do so.
  • Page 40 0.15 Nm and 0.25Nm respectively. When an accessory is connected to any STP radio, the accessory is tested to check that it is an approved Sepura accessory. If a non-Sepura accessory is detected one of the following warning messages is displayed:...
  • Page 41 MOD-10-1164 TETRA Terminals 14-09-2012 Page 41 of 46 Product Guide Issue 11 © Sepura plc 2012...
  • Page 42 ¼ turn. COUSTIC HOCK Sepura plc has engineered an innovative audio solution for the radio. Duplex audio (for telephone type calls) and the half duplex audio (for radio calls) are directed to different loudspeakers.

  • Page 43: Compliance With Standards

    MOD-10-1164 ATER NGRESS This section only applies to the STP9000 Series and STP8000 Series and STP8X radios . If the radio is used in extremely heavy rain it is possible that some water may seep behind the keys on the keypad. This will not harm the radio but may reduce the volume of the loudspeaker.

  • Page 44: Glossary

    NRPB National Radiological Protection Board Peripheral Equipment Interface Press To Talk Remote Speaker Microphone TETRA Terrestrial Trunked Radio TETRA Terminals 14-09-2012 Page 44 of 46 Product Guide Issue 11 © Sepura plc 2012...

  • Page 45: Acknowledgements

    ® 2) The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sepura plc is under licence. Other trademarks and trade names are those of their respective owners. ® Bluetooth...

  • Page 46: Notice

    NOTICE All rights reserved. This document may not be reproduced in any form either in part or in whole without the prior written consent of Sepura plc, nor may it be edited, duplicated or distributed using electronic systems. Company and product names mentioned in this document may be protected under copyright or patent laws.

This manual is also suitable for:

Stp8000Stp9100Stp8100Stp9200Stp8200Stp8x ... Show all
