INTRODUCTION

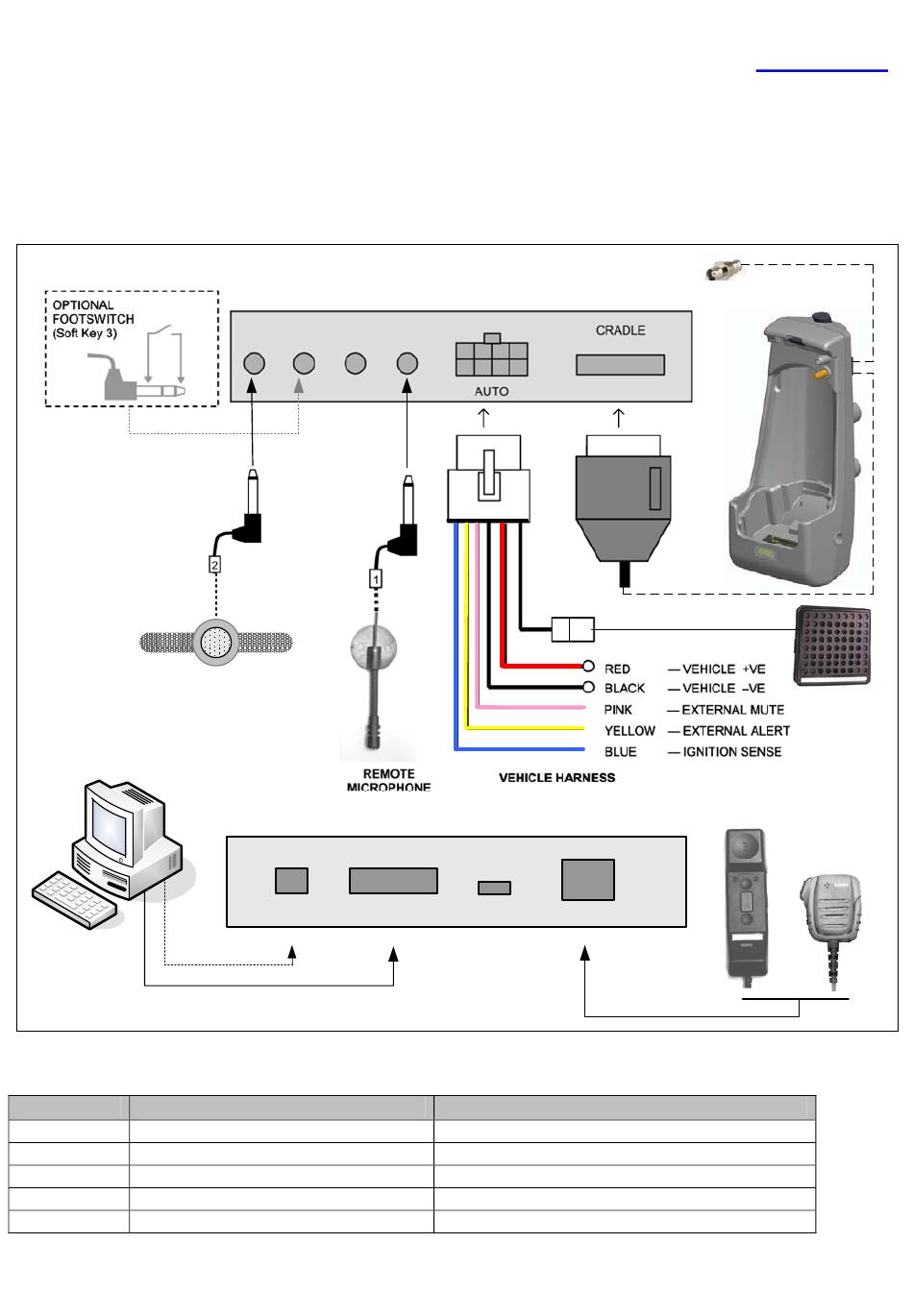

The STP8000 car kit provides secure retention of the radio within a cradle. The car kit features battery charging, external
antenna connection, external PTT keypad, hands-free operation with the external microphone and loudspeaker. A standard
RS232 data port and USB is provided for data transfer applications. Connections are provided for optional accessories.
REMOTE PTT
Cable colour
Electrical parameters
RED
Vehicle +ve (12v MAX)
BLACK
Vehicle –ve (vehicle chassis)
PINK
Open drain Output, max current 0.5A
YELLOW
Open drain Output, max current 0.5A
BLUE
Input Signal Level 12VDC (200 uA max)
STP8000 Series CAR KIT
Installation & USER GUIDE
Rear INTERFACE UNIT (vehicle harness)
ALARM
SMIC
MIC
Front INTERFACE UNIT (user interface)
USB
DATA (RS232)
Connections for accessories
sepura
SXC
HANDSET/FIST MIC
Fuse
4 Amp
n/a
Protected by a re-settable fuse provided inside car kit
Protected by a re-settable fuse provided inside car kit
1 Amp
sepura
Antenna
50Ω
CRADLE
Loudspeaker Output
or
1
Advertisement
Table of Contents
Related Manuals for Sepura STP8280
Summary of Contents for Sepura STP8280
- Page 1 STP8000 Series CAR KIT INSTALLATION & USER GUIDE INTRODUCTION The STP8000 car kit provides secure retention of the radio within a cradle. The car kit features battery charging, external antenna connection, external PTT keypad, hands-free operation with the external microphone and loudspeaker. A standard RS232 data port and USB is provided for data transfer applications.
- Page 2 STP8000 Series CAR KIT INSTALLATION & USER GUIDE Information Prolonged operation at high volume levels may cause The STP8000 car kit is designed for 12 V negative earth the interface unit to become hot. systems. In vehicles with a 24 V supply, an approved converter must be used, NOT a 12 V tap on the battery.
- Page 3 The recom- This item is not supplied by Sepura plc. A suitable switch will mended position is in the passenger footwell, facing the be terminated in a 3.5 mm stereo jack plug with the switch...
- Page 4 Data Communication An RS232 serial data port and an USB serial port is provided in the interface unit. Connect a PC or data Sepura plc, Radio House, Issue 1.2 (08/09) terminal (with appropriate application software) to the socket labelled “DATA” via a standard 9-way serial lead St.
