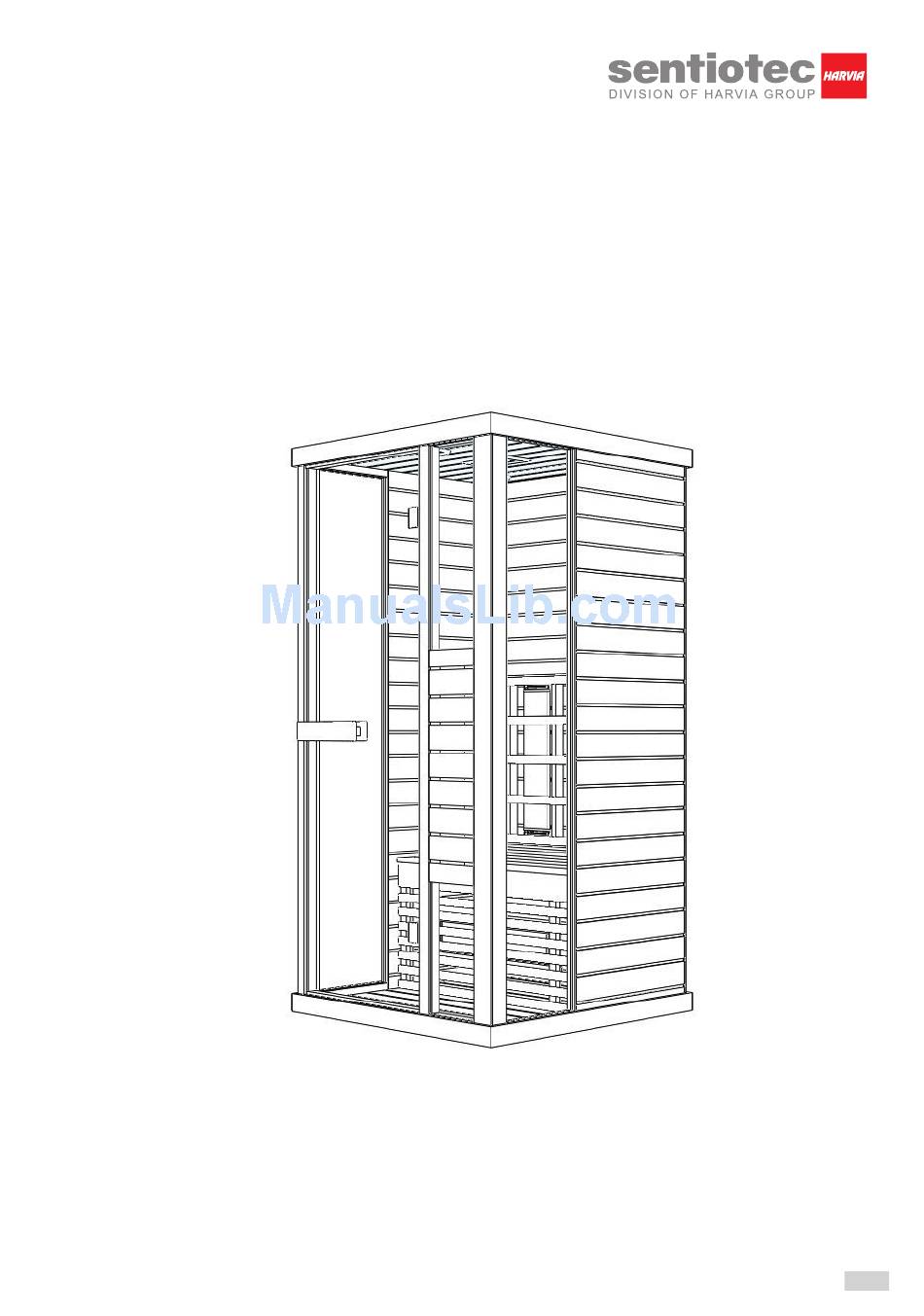

  • Page 1 User’s manual Infrared Cabin PHÖNIX-S (1-030-313)  1/12 2017/04...
  • Page 2: Technical Data

    If you feel uncomfortable while using the infrared cabin, stop immediately and consult with your doctor. Never go to a hot infrared cabin if you have taken alcohol, strong medicines or narcotics. Technical data Model PHÖNIX-S (1-030-313) Cabin material Canadian red cedar Length...
  • Page 3: Parts List

    PARTS LIST Cabin Individual parts (variations possible) NAME Q’TY Floor panel (1020*998*65mm) Back panel (1927*940*43mm) Side panel 1 (1927*593*33mm) Side panel 2 (1927*593*33mm) Side glass (1896*344*6mm) Door jamb (1927*70*43mm) Front panel with glass (1927*344*48mm) Toppanel (1020*998*65mm) Bench support panel (898*468*33mm) Bench surface panel (900*500*33mm) Guardrail 1 (898*650*54mm) Guardrail 2 (650*260*54mm)
  • Page 4 Hardware parts (variations possible) Rubber strip Φ3*16 Φ4*45 Φ6*60 30*20*2 ASSEMBLE INSTRUCTIONS Assemble tips Please remove transport packaging and inspect that your infrared cabin has been delivered complete and intact before beginning assemble. A least 2 persons are required for assemble of the cabin Please check the countersink and hole diameter of the drill holes to avoid damaging the wood.
  • Page 5 ASSEMBLE INSTRUCTIONS Assemble steps Note: back panel has ventilation slits must keep 5 cm away from the next wall  5/12...
  • Page 6 ASSEMBLE INSTRUCTIONS Assemble steps Note: about 20mm away Note: connect calves from the bench panel heater cable Wood cover 4-Φ4*45  6/12...
  • Page 7 ASSEMBLE INSTRUCTIONS Assemble steps Wood cover 4-Φ4*45 Hex screw Hinge surface Rubber fitting Hinge bottom Glass door Rubber fitting Handle Glass door Rubber Handle Strip Wood cover Note: connect all cables on the roof of the cabin  7/12...
  • Page 8: Circuit Diagram

    CIRCUIT DIAGRAM Plug Input Voltage Power Rating Current Rating Safety Grade Model Electric control box Calves Control panel Front Antenna Back Color light AC12V/7W Temperature sensor (roof) Note: only provide for reference  8/12...
  • Page 9 CIRCUIT DIAGRAM TEMP OVERHEAT CONTROL (90 DEGREE) SPOTLIGHT FUSE MAIN FUSE MAIN FUSE SPOTLIGHT FAN FUSE LIGHT FUSE FRONT FUSE FRONT HEATER MP3 POWER (+5v) SPEAKER BACK FUSE SPEAKER ANTENNA BACK HEATER TEMP SENSOR (ROOF) CALVES FUSE CONTROL PANEL CALVES HEATER 705M ELECTRIC CONTROL BOX  9/12...
  • Page 10: Temperature Settings

    OPERATING INTRUCTIONS Connect the power unit to wall outlet, the LED indicator will start to blink on the display. Now it is possible to switch on the infrared heaters, the light and the music function. 1) Startup Press to switch on the cabin and heaters start to work, the length of time is automatically set to 99 minutes and the air temperature inside the cabin will be displayed.
  • Page 11: Use Instructions

    SERVICE Use instructions Drink plenty of liquids before and after use of the infrared cabin. Dry yourself off completely. The optimal cabin temperature for a pleasant session lies between 35 and 40°C. After a heating period of an hour at the latest, the cabin should be switched off and a heating brake of at least 30 minutes should be taken.
  • Page 12: Guarantee Card

    SERVICE GUARANTEE CARD Fill in this form and make a picture of it and Email to: ______________________________________________ Date of purchase: _______________________________ Serial Number: _________________________________ Control unit label Reference number: ______________________________ Name: ________________________________________ Article state (unopened, just opened or used): ________ Please encircle on picture below which heater or which panel has a fault.
