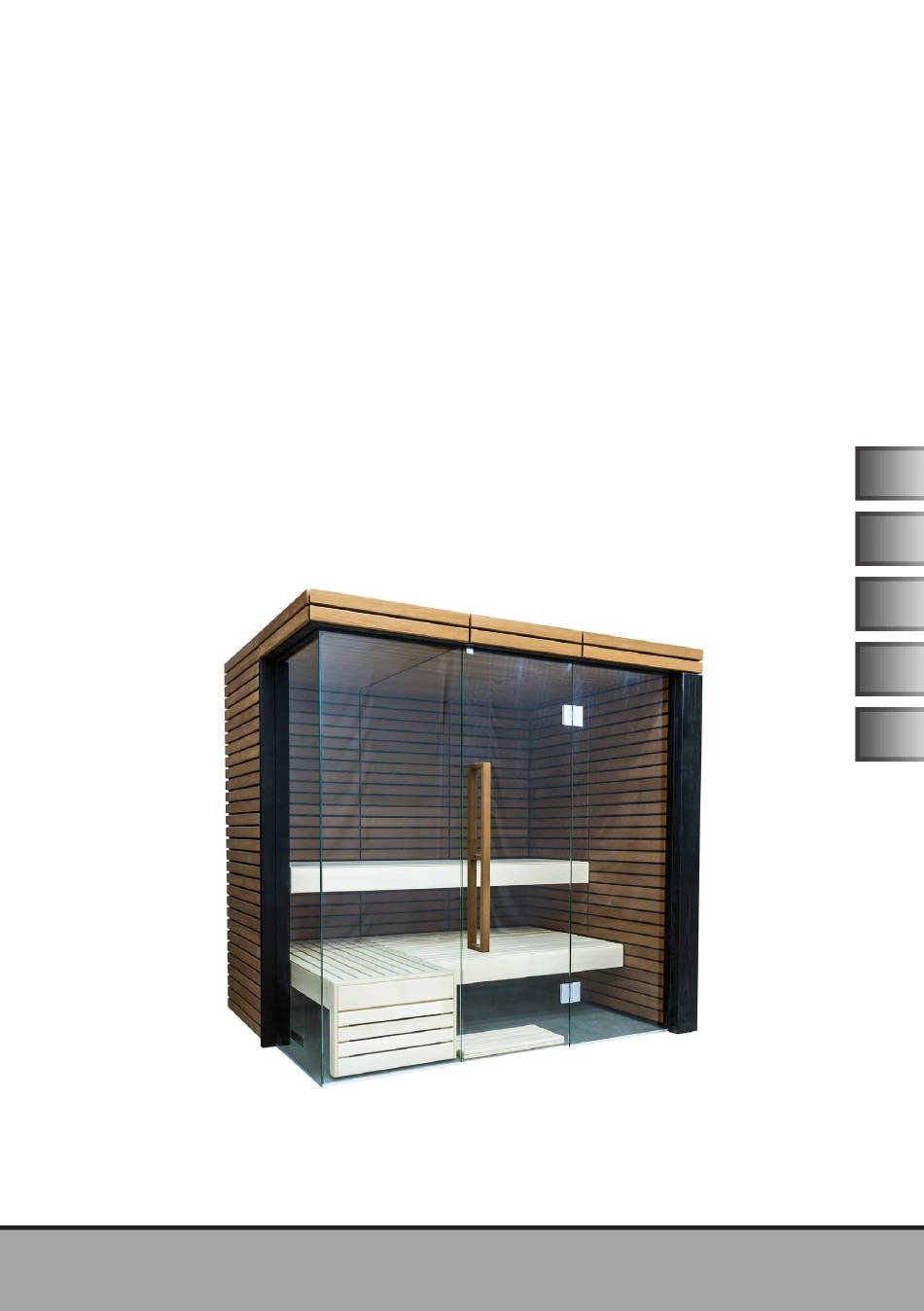

- Page 1 Solid wood sauna LINDEA VIEW SMALL 221 x 156,5 x 212,5 cm INSTRUCTIONS FOR INSTALLATION English LINDEA-V-S-T-L / 1-051-756 Thermo/lime LINDEA-V-S-T-T / 1-052-488 Thermo/Thermo Version 10/24 Ident. no. LINDEA-V-S...
-
Page 2: Table Of Contents
Table of Contents Preparing for installation 1.1. Tools required 1.2. Maintenance and cleaning 1.3. Disposal 1.4. Parts list 2. Floor plan 2.1. Floor plan for right-hand assembly 2.2. Floor plan for left-hand assembly 2.3. Changes for left-hand assembly 3. Assembling the cabin 3.1. -
Page 3: Preparing For Installation
Installation instructions, only for experts p. 3/32 1. Preparing for installation Read these assembly instructions carefully and keep them within reach when using the sauna so that you can look up product information at any time. These assembly instructions can also be found in the downloads section of our website: www.mediabank.harvia.com. -
Page 4: Tools Required
Installation instructions, only for experts p. 4/32 1.1. Tools required ● Hammer with a wooden head or a mallet ● Cordless screwdriver with bits for cross-head screws and Torx ● Roller tape measure ● Drill bits with a diameter of 3 mm, 10 mm, 20 - 30 mm (for sauna heater power cable) ●... -
Page 5: Maintenance And Cleaning
Installation instructions, only for experts p. 5/32 1.2. Maintenance and cleaning ● The sauna should be cleaned with a damp cloth. Only use warm water – no cleaning products. ● We recommend heating the cabin once a month if the sauna is not used for a long time. -
Page 6: Parts List
Installation instructions, only for experts p. 6/32 1.4. Parts list No. of Name Dimensions in mm items Base frame 1 Black floor frame with cut-out - right 1382x40x80 1 Black floor frame with cut-out - left 1382x40x80 1 Black floor frame 2100x40x80 1 Black floor frame 718x40x80... - Page 7 Installation instructions, only for experts p. 7/32 No. of Name Dimensions in mm items Glass front elements 1 Black glass front element 1x 45° - right 2035x85x55 1 Black glass front element 1x 45° - left 2035x85x55 1 Black glass front element 1x 45° - right 718x85x55 1 Black glass front element 1x 45°...
- Page 8 Installation instructions, only for experts p. 8/32 No. of Name Dimensions in mm items Exterior Lindea decor 1 Lindea exterior decor element 2090x790x40 1 Lindea exterior decor element 1950x745x40 1 Lindea exterior decor element 130x802x40 1 Lindea exterior decor element 2090x755x40 1 Lindea exterior decor element 815x130x40...
-
Page 9: Floor Plan
Installation instructions, only for experts p. 9/32 2. Floor plan 2.1. Floor plan for right-hand assembly 2210... -
Page 10: Floor Plan For Left-Hand Assembly
Installation instructions, only for experts p. 10/32 2.2. Floor plan for left-hand assembly 2210... -
Page 11: Changes For Left-Hand Assembly
Installation instructions, only for experts p. 11/32 2.3. Changes for left-hand assembly Remove the foreign tongue from wall element W1 and insert it into wall element W6. -
Page 12: Assembling The Cabin
Installation instructions, only for experts p. 12/32 Assembling the cabin ATTENTION! The cabin is designed for both “right-hand” and “left-hand” assembly. Note the floor plans for this on Page 9 and Page 10. Note illustrations from page 15 onwards. The procedure described below is for “right-hand” assembly. Changes for “left-hand”... -
Page 13: Fitting The Interior Lindea Decor
Installation instructions, only for experts p. 13/32 3.4. Assembling the roof elements Insert the roof elements and screw them to the cabin walls. Observe the cable outlets. Fit the roof cover strips on the outside. 3.5. Fitting the interior Lindea decor Mount the interior decor elements with 8 screws each, starting at the side walls W1 and W6. - Page 14 Installation instructions, only for experts p. 14/32...
