Vacon NX Quick Help

Start-up wizard
The Start Up Wizard is activated when the power to the drive is turned on for the first time, or if the
Start Up Wizard is activated from the System menu (P6.5.3) AND the power is turned OFF and back
ON.
The Start-up Wizard is a feature on the control keypad to facilitate the commissioning of the fre-
quency converter. If selected active (default), the Start-up Wizard prompts the operator for the lan-
guage and application of his/her choice plus for the values for a set of parameters common to all
applications as well as for a set of application-dependent parameters.
Always accept the value with the
buttons
(up and down arrows). More information on the use of the control panel in Chapter 7 of the
User's Manual.

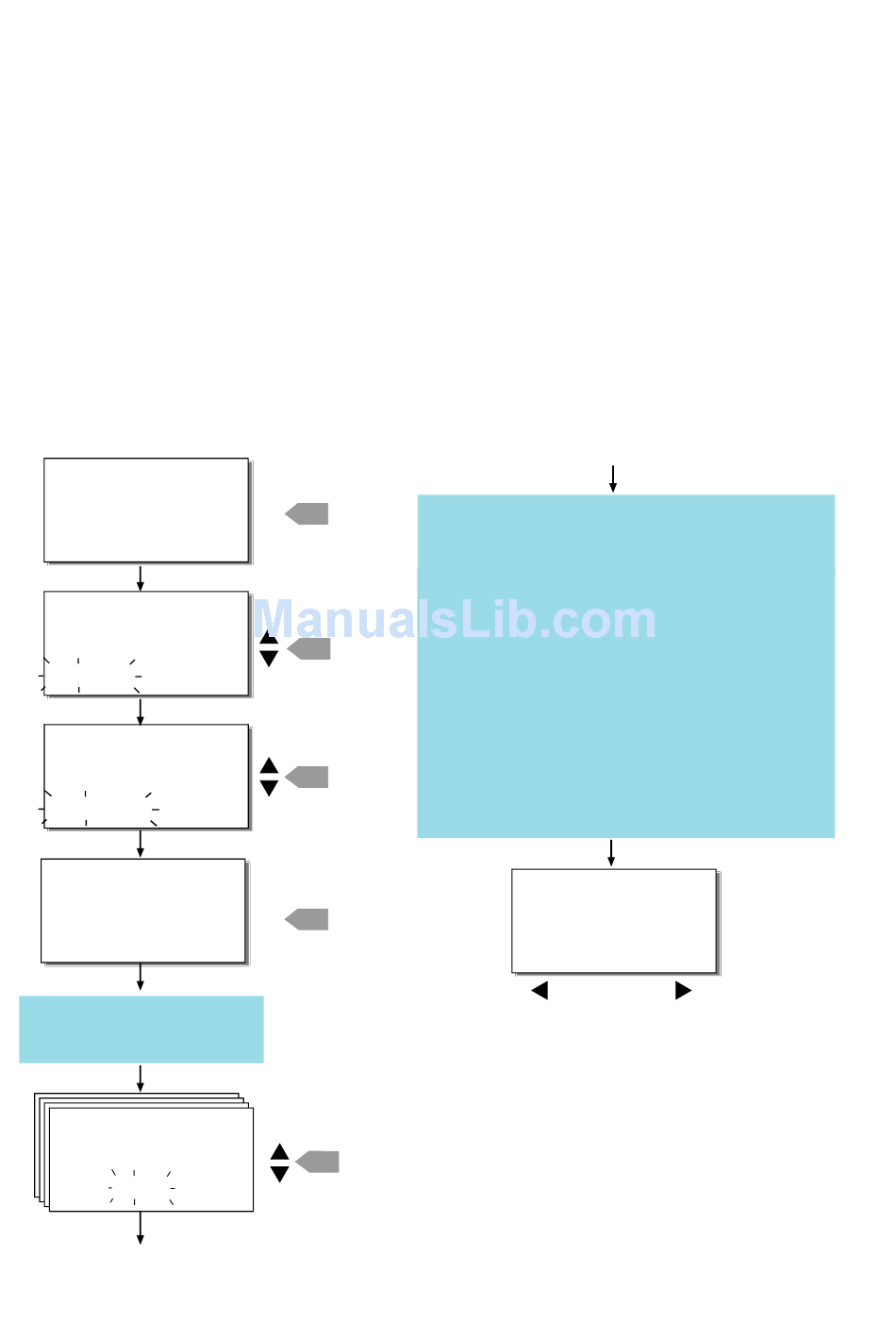

Startup wizard
Press enter
Language
English
Application
Standard
Setup starts
Press enter
Nine parameter settings
are prompted for each
application:
Min Frequency
0.00 Hz
VACON NX QUICK HELP
Enter button
, scroll options or change values with the
enter Additional parameter settings are prompted
depending on the selected application.
Basic application:
I/O reference (P2.14)
Standard application:
enter
I/O reference (P2.1.11)
Local/Remote control
application:
I/O reference A (P2.1.11)
I/O reference B (P2.1.12)
Multi-step speed
enter
application:
I/O reference (P2.1.11)
enter
enter
PID control application:
Act value 1 selection (P2.2.9)
PID controller ref (P2.1.11)
Multi-purpose control
application:
I/O reference (P2.1.11)
Pump and fan control
application:
Act value 1 select (P2.2.1.9)
PID controller ref (P2.1.11)
No. of aux pumps (P2.9.1)
Repeat setup?
<No Yes>
