Precision Soldering Station
Ref. CD-SE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-SE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for jbc CD-SE

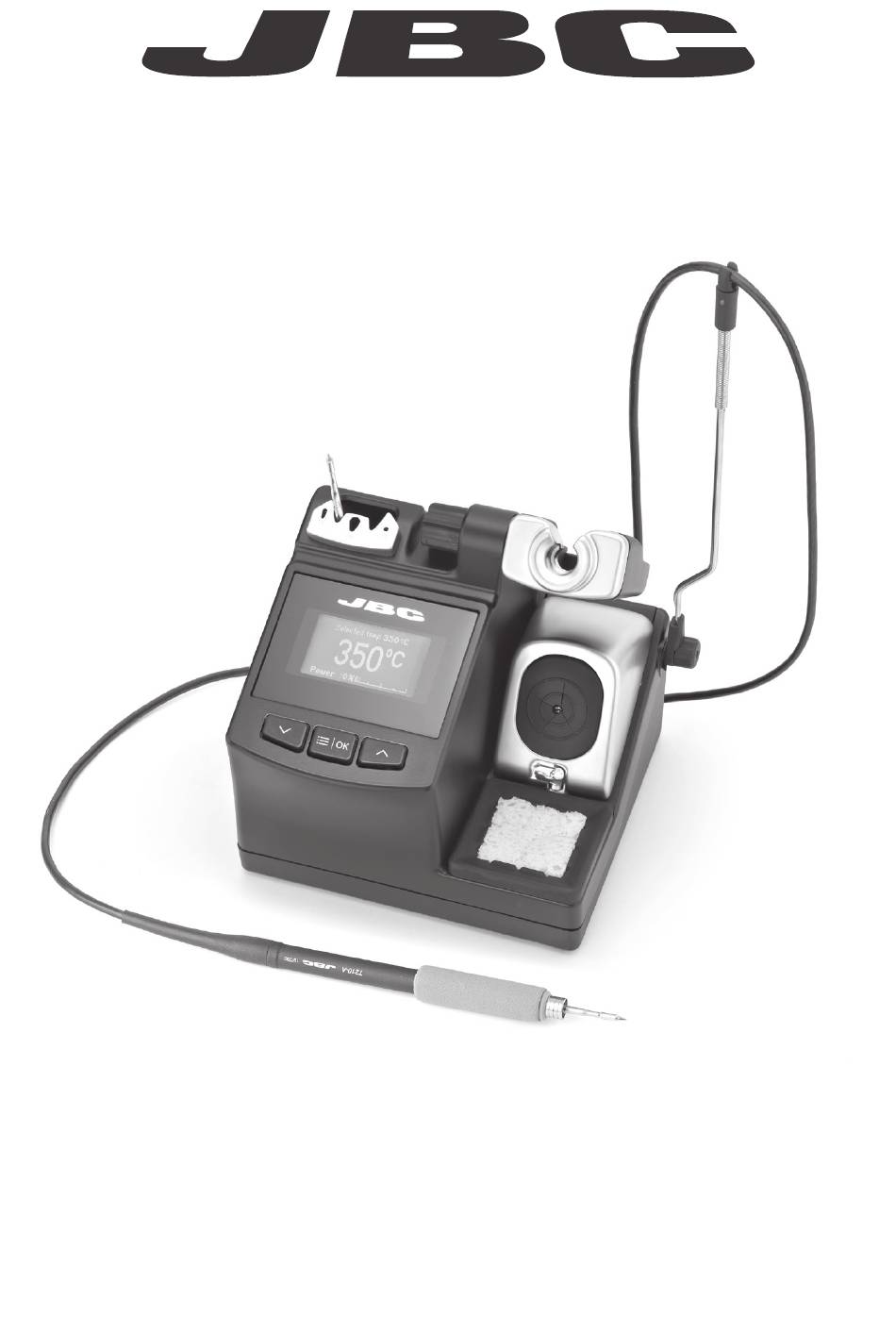

  • Page 1 Precision Soldering Station Ref. CD-SE...
  • Page 2: Packing List

    Precision Purpose Handle Ref. T210-A Brass Wool ....1 unit Sponge ......1 unit Manual ......1 unit Ref. CL6210 Ref. S0354 Ref. 0016876 w w w.jbctools.com Main switch Fuse Power Socket USB-B connector Equipotential connection Precision Soldering Station Ref. CD-SE...
  • Page 3: Adjustable Stand

    Leaves a small layer of solder on the tip, preventing oxidation between cleaning If the tip is very dirty, and rewetting. JBC first recommends cleaning it with the wiper to remove excess solder. Tapping: Wiping: The least harmful cleaning Wiper...
  • Page 4: Usb Connector

    B. For curved C210. C. For C245. www.jbctools.com/manager.html Manage and monitor as many stations as your PC can handle by using the JBC Manager. You can export data to another PC. *Important It is necessary to insert the cartridges as far as the mark for a proper connection.
  • Page 5: Operation

    Operation Control Process The JBC Exclusive Heating System Work Screen This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. Displays a specific fixed temp. Fixed temp.
  • Page 6 Sleep mode in only a 200ºC (392ºF). This is consi- boards), JBC strongly rature when in the stand be- few seconds, this parameter is dered to be a proper starting recommends using other fore entering sleep mode.
  • Page 7: Maintenance

    +20°C (+36°F) lower for the C245030 which does not need any temperature adjustment. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 8: Exploded View

    w w w.jbctools.com Safety Exploded View It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases.
  • Page 9: Specifications

    - USB connector station-PC Complies with CE standards ESD protected housing “skin effect” Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
