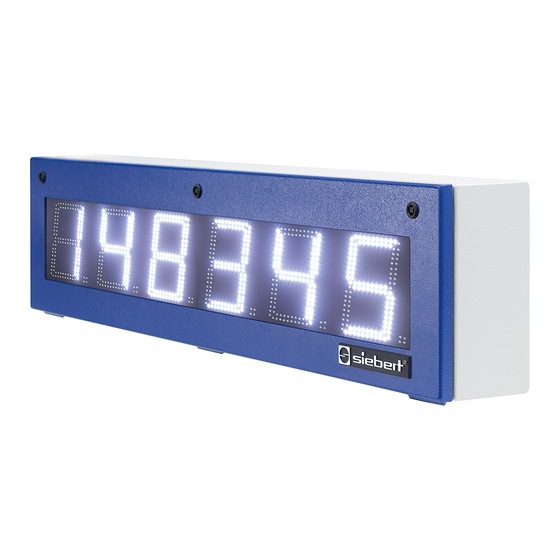

Siebert S302 Series Operating Instructions Manual

Numeric large size displays with profinet io rt interface
Hide thumbs Also See for S302 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Series S302
Numeric large size displays
with PROFINET IO RT interface
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S302 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Siebert S302 Series

Summary of Contents for Siebert S302 Series

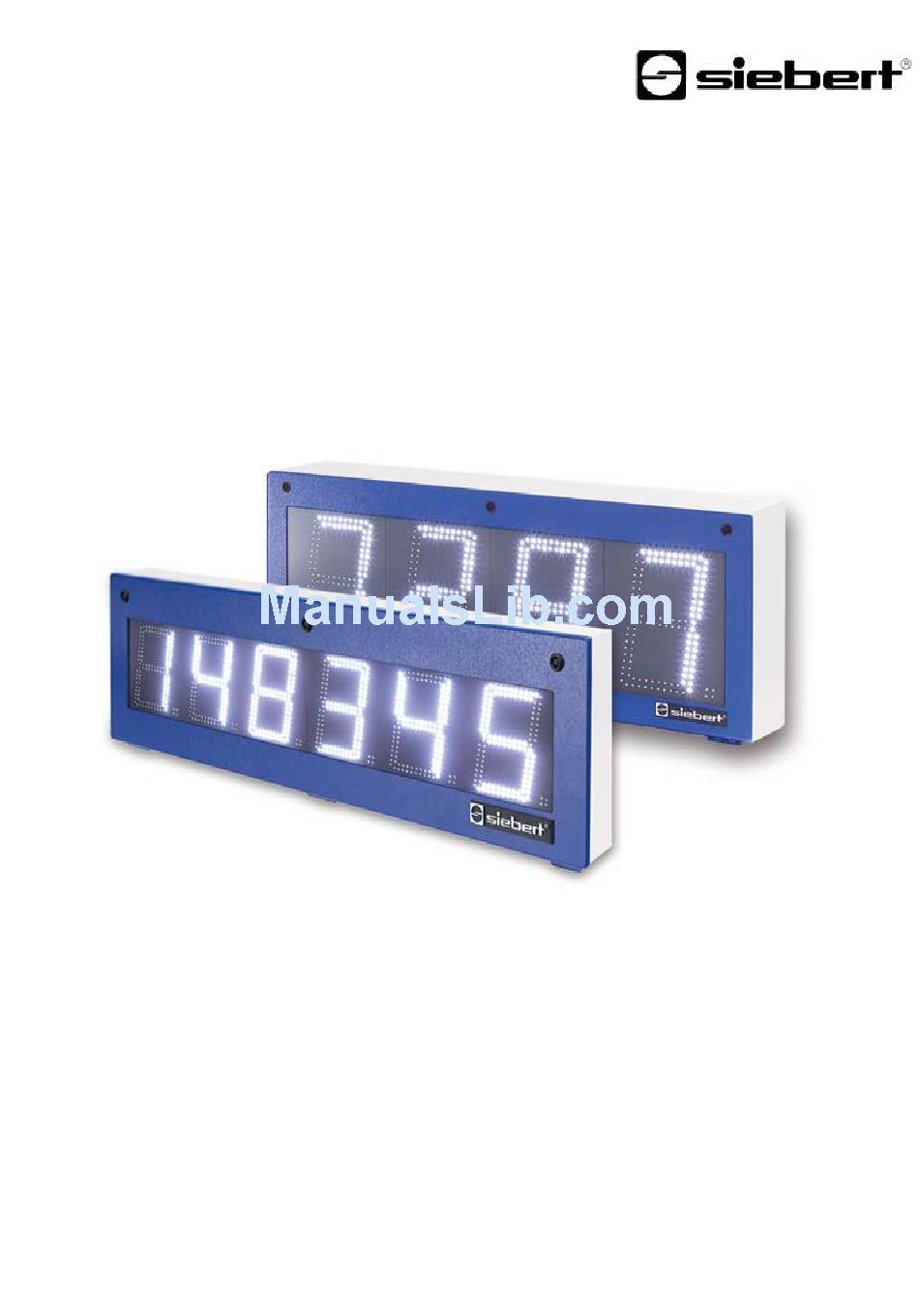

  • Page 1 Series S302 Numeric large size displays with PROFINET IO RT interface Operating instructions...

  • Page 2: Contact

    Contact www.siebert-group.com GERMANY Siebert Industrieelektronik GmbH Siebertstrasse, D-66571 Eppelborn P.O. Box 11 30, D-66565 Eppelborn Phone +49 (0)6806 980-0, Fax +49 (0)6806 980-999 email: info.de@siebert-group.com AUSTRIA Siebert Österreich GmbH Mooslackengasse 17, A-1190 Wien Phone +43 (0)1 890 63 86-0, Fax +43 (0)1 890 63 86-99 email: info.at@siebert-group.com...

  • Page 3: Legal Note

    Siebert , LRD and XC-Board are registered trademarks of Siebert Industrieelektronik GmbH. All other product names mentioned herein may be trademarks or registered trademarks of their respective owners. We reserve the right to make alterations to the technical data and delivery options without notice. - All rights reserved, including the rights of translation.

  • Page 4: Table Of Contents

    Table of contents 1 Contact 2 Legal note 3 Safety precautions Important information ............................6 Safety ................................. 6 Intended use ............................... 6 Mounting and installation ............................ 6 Grounding ................................6 EMC measures ..............................7 Disposal ................................7 4 Model designation Model designation ..............................
  • Page 5 11 Flags 12 Setting the display mode in normal operation Setting the basic brightness (luminosity of the LEDs) ..................21 Setting of the display modes ..........................21 13 Technical data Fieldbus ................................23 Power supply ..............................23 Housing colors ..............................23 Ambient conditions ............................

  • Page 6: Safety Precautions

    Safety precautions Important information Read these operating instructions before starting the unit. They provide you with important information on the use, safety and maintenance of the units. This helps you to protect yourself and prevent damage to the unit. Information intended to help you to avoid death, bodily harm or considerable damage to property is highlighted by the warning triangle shown here;...

  • Page 7: Emc Measures

    EMC measures The devices comply with the current EU Directive (EMC Directive) and provide the required interference immunity. Observe the following when connecting the operating voltage and data cables: Use shielded data cables. The data and operating voltage cables must be laid separately. They may not be laid together with heavy-current cables or other interference-producing cables.

  • Page 8: Model Designation

    Model designation Model designation This manual applies to units with the following model designation (x = the 'x's in the model designation indicate the size and design of the units): S302-xx/xx/xx-xxx/xx-N0 Unit construction The following figure shows model type S302-05/10/xx-xxx/xx-xx as example for the other model types. The front frame of the housing is locked with quick-action releases.

  • Page 9: Quick Start For Numerical Operation Mode (Int32 Format)

    Step 3: Install the GSDML file of the ad and add the display Install the GSDML file of the display. You find the file on the supplied data carrier or at www.siebert- group.com. After installation, the display is listed in the hardware catalog. Add the module 'siebert- display' to 'Devices &...

  • Page 10: Step 4: Establish A Connection To The Display

    Step 4: Establish a connection to the display Assign the display to the desired control in the network view. Then the PROFINET connection is shown. Step 5: Add sub-module to the display and define address range Add the module 'Numerical Value' from the hardware catalog to the device overview. This specifies that the display expects the values to be shown in INT32 format.

  • Page 11: Step 6: Assign A Profinet Device Name To The Display

    Step 6: Assign a PROFINET device name to the display Now the IP address and the device name are assigned to the display. After the data is transferred successfully to the display, the configuration is displayed as follows in the engineering tool.

  • Page 12: Step 8: Transmit Data To The Display

    Step 8: Transmit data to the display To transmit a value to the display you can for example, create a function chart with the instruction 'MOVE'. In the following screenshot the number '1234' is transmitted. BAL S302 PFN RT 1.00 12/27...

  • Page 13: Quick Start For Alphanumeric Operation Mode (Ascii Format)

    Quick start for alphanumeric operation mode (ASCII format) If the display receives data in ASCII format it can display also characters and special characters which can be displayed by seven segments besides the digits.  Received characters which can not be displayed with seven segments are displayed as Step 1 to 4: See quick start for numeric operation mode (INT32 format) Step 1: Open project Step 2: Switch to project view...
  • Page 14 The string sent to the display can be up to 20 bytes long. The displayed bytes are dependent on the scope of the display. The not shown sequence bytes are ignored. The attributes are binary coded. Its structure is described in the chapter 'Attributes'. BAL S302 PFN RT 1.00 14/27...

  • Page 15: Messages On The Display

    Meldungen Messages on the display The data traffic via PROFINET is indicated with status LEDs on both RJ45 sockets. The meaning is the same for both ports. LED green LED yellow Meaning  no power supply  no network connection ...

  • Page 16: Further Settings

    Further settings With the previous steps, the display shows the sent values with their default settings (factory settings). In the numeric mode (INT32 format) these settings can be changed by changing the initialization values. These are transferred once to the display during connection setup via PROFINET. The following setting options are available by changing the initialization values, see chapter setting the display settings during initialization (numeric operation mode only): ...

  • Page 17: Setting The Display Settings During Initialization (Numeric Operation Mode Only)

    Setting the display settings during initialization (numeric operation mode only) Initialization parameters are loaded to the display once. They cannot be changed during operation. Decimal Dots Decimal points Decimal Dots (property number 1) The number and position of the decimal points can be defined with the help of a bit mask. For example, multiple decimal points can be used to display a date or codes.

  • Page 18: Attributes For Flashing And Blinking

    Attributes for flashing and blinking (property numbers 7 and 9) With these initialization values, the flashing modes for the standard display and the 'out of range' display can be defined. See chapter Flashing modes. Format (property numbers 10 and 11) These two initialization parameters define the alignment of the displayed values and the number of leading zeros.

  • Page 19: Flashing Modes And Display Attributes

    Flashing modes and display attributes The display can show the values to be displayed in a plurality of brightnesses and blinking patterns, which are referred to as "display attribute". For the initialization parameters, two blocks are defined: a block for 'standard attributes' (property number 7), the other for 'out of range attributes' (property number 9).

  • Page 20: Flags

    Flags Flags Bit number Meaning Default 31…9 0 Circumferential frame off 1 Circumferential frame on Underflow off Underflow on Overflow off Overflow on Invalid initial value off Invalid initial value on Smart-Dot-Function off Smart-Dot-Function on The decimal places are trancated.* The decimal places are rounded up* The decimal places are rounded down.* The decimal places are rounded commercially.*...

  • Page 21: Setting The Display Mode In Normal Operation

    Setting the display mode in normal operation The settings defined in chapter 'Setting the display settings during initialization' are defined in the engineering tool as initialization parameters and sent to the display once during the initialization of PROFINET. These settings can not be changed during normal operation. The displays also allow to change these parameters during normal operation.
  • Page 22 The description of the properties can be found in chapter: Setting the display mode during initialization (numeric mode only). Property of display field number Property Operation mode Decimal Dots numeric (INT32) Offset numeric (INT32) Scale Factor numeric (INT32) Range – Upper bound numeric (INT32) Range –...

  • Page 23: Technical Data

    Technische Technical data Fieldbus Interface PROFINET IO RT, conformance class CC-B MAC address The MAC address for the PROFINET coupling is on the top side of the device. Integrated switch PROFINET IO IRT, conformance class CC-C Power supply The screw-type terminals for the power supply are located on the power supply unit in the bottom section of the housing.

  • Page 24: Unit Properties

    Unit properties The model designation is structured as follows – – – S302 No dimension symbol Dimension symbol 1 digit 2 digits   8 digits Character height 57 mm Character height 100 mm Character height 160 mm Character height 250 mm LED standard LED for outdoor use Character color red...

  • Page 25: Max. Power Consumption

    Max. power consumption Units with one-sided display Units with double-sided display [VA] [VA] 1 digit 1 digit S302-x1/10/xx-1xx/xx-xx S302-x1/10/xx-2xx/xx-xx S302-x1/16/xx-1xx/xx-xx S302-x1/16/xx-2xx/xx-xx S302-x1/25/xx-1xx/xx-xx S302-x1/25/xx-2xx/xx-xx 2 digits 2 digits S302-x2/06/xx-1xx/xx-xx S302-x2/06/xx-2xx/xx-xx S302-x2/10/xx-1xx/xx-xx S302-x2/10/xx-2xx/xx-xx S302-x2/16/xx-1xx/xx-xx S302-x2/16/xx-2xx/xx-xx S302-x2/25/xx-1xx/xx-xx S302-x2/25/xx-2xx/xx-xx 3 digits 3 digits S302-x3/06/xx-1xx/xx-xx S302-x3/06/xx-2xx/xx-xx S302-x3/10/xx-1xx/xx-xx S302-x3/10/xx-2xx/xx-xx...

  • Page 26: Dimensions And Weights

    Dimensions and weights Units with one-sided display The following figure shows unit versions S302-04/10/4x-1xx/xx-xx and S302-F3/10/4x-1xx/xx-xx representing the other unit versions listed in the following table. 1 digit a [mm] b [mm] c [mm] d [mm] Ø [mm] Weight [kg] S302-01/10/xx-1xx/xx-xx S302-01/16/xx-1xx/xx-xx S302-01/25/xx-1xx/xx-xx...
  • Page 27 Units with double-sided display The following figure shows unit versions S302-04/10/4x-2xx/xx-xx and S302-F3/10/4x-2xx/xx-xx representing the other unit versions listed in the following table. Units with 57mm character height (S302-xx/06/xx-2xx/xx-xx) have 2 instead of 4 eyelets. 1 digit a [mm] b [mm] c [mm] Weight [kg] S302-01/10/xx-2xx/xx-xx...
