Siebert S102 Series Operating Instructions Manual

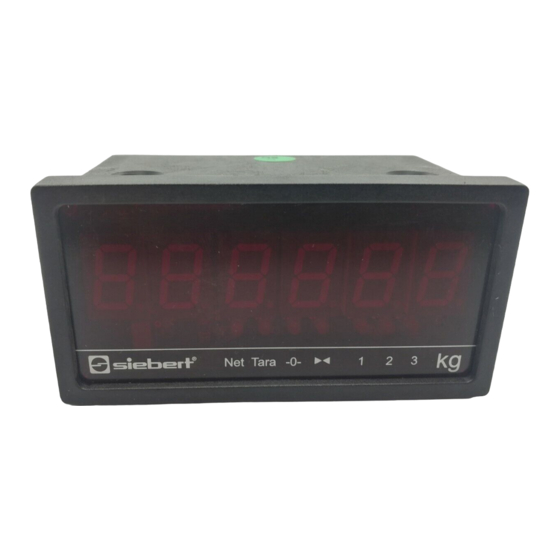

Numeric displays in build-in housings with profinet io rt-interface
Hide thumbs Also See for S102 Series:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions Manual

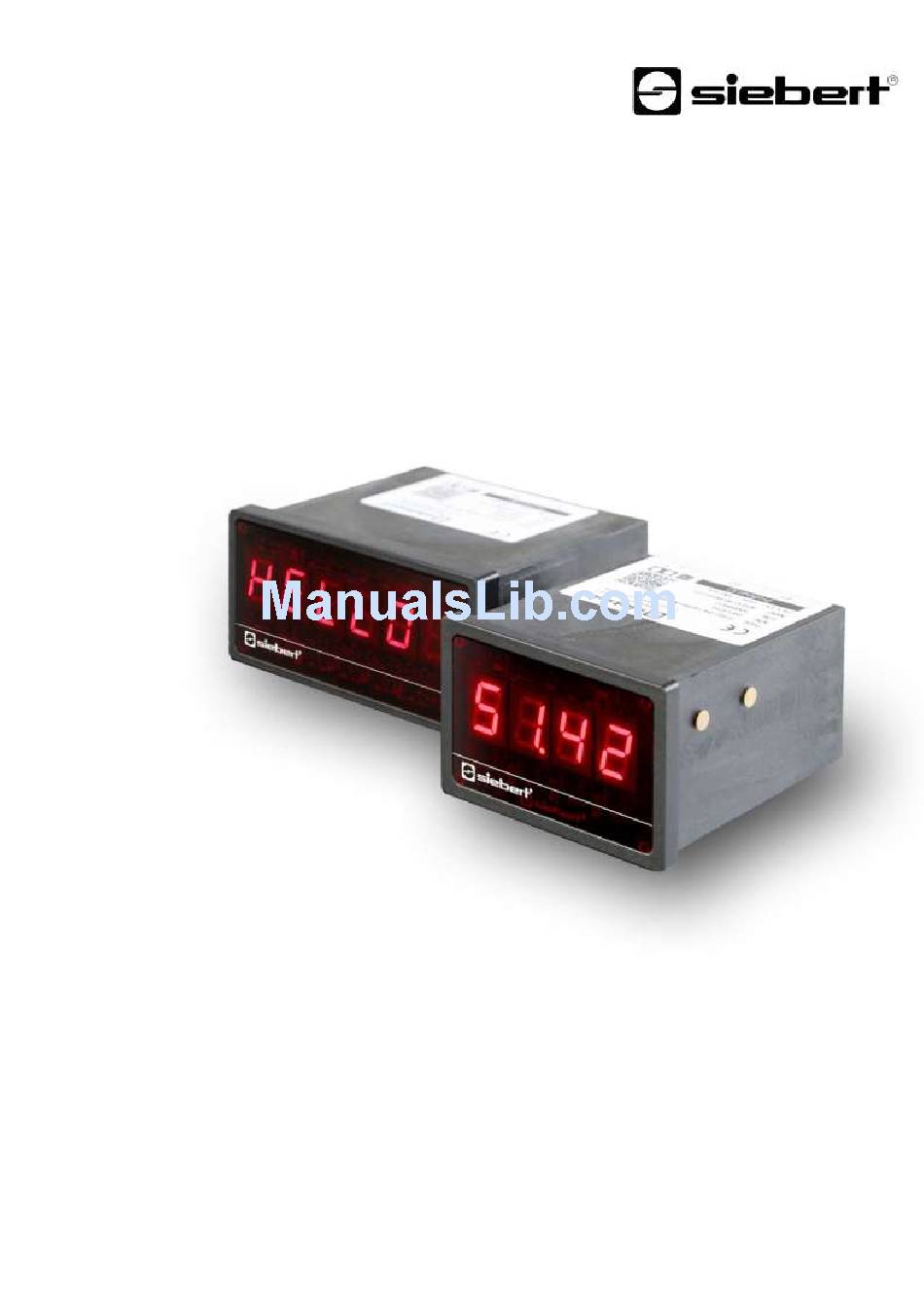

Pos : 2 /Siebert/Bedienungs anl eitungen/Serie S102/SX102/Ti tels eiten/S102 Ti tels eite PFN RT @ 3\mod_1485162955344_48.doc x @ 26784 @ @ 1
Series S102
Numeric displays in build-in housings
with Profinet IO RT-interface
Operating instructions
Pos : 3 /Siebert/Seitenumbruc h @ 0\mod_1314194553878_0.doc x @ 150 @ @ 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S102 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Siebert S102 Series

Summary of Contents for Siebert S102 Series

  • Page 1 Pos : 2 /Siebert/Bedienungs anl eitungen/Serie S102/SX102/Ti tels eiten/S102 Ti tels eite PFN RT @ 3\mod_1485162955344_48.doc x @ 26784 @ @ 1 Series S102 Numeric displays in build-in housings with Profinet IO RT-interface Operating instructions Pos : 3 /Siebert/Seitenumbruc h @ 0\mod_1314194553878_0.doc x @ 150 @ @ 1...

  • Page 2: Contact

    Pos : 4 /Siebert/Bedienungs anl eitungen/Gerätebesc hr eibung Gross anz eigen all e Serien/Kontakt @ 1\mod_1339668951540_48.doc x @ 4323 @ 1 @ 1 Contact www.siebert-group.com GERMANY Siebert Industrieelektronik GmbH Siebertstrasse, D-66571 Eppelborn P.O. Box 11 30, D-66565 Eppelborn Phone +49 (0)6806 980-0, Fax +49 (0)6806 980-999 email: info.de@siebert-group.com...

  • Page 3: Legal Note

    Pos : 6 /Siebert/Bedienungs anl eitungen/Gerätebesc hr eibung Gross anz eigen all e Serien/R ec htlic her Hi nweis @ 1\mod_1339668878995_48.doc x @ 4317 @ 1 @ 1 Legal note © Siebert Industrieelektronik GmbH This operation manual has been prepared with the utmost care. However, we do not accept any liability for possible errors.

  • Page 4: Table Of Contents

    Pos : 8 /Siebert/Bedienungs anl eitungen/M odul Inhalts verzeic hnis @ 1\mod_1352981287156_48.doc x @ 5155 @ @ 1 Table of contents 1 Contact 2 Legal note 3 Safety precautions Important information ............................6 Safety ................................. 6 Intended use ............................... 6 Mounting and installation ............................
  • Page 5 12 Setting the display mode in normal operation Setting the basic brightness (luminousity of the LEDs) ..................21 Setting of the display modes ..........................22 13 Technical data Display ................................23 Field bus ................................23 Power supply ..............................23 Dimensions and weights ..........................23 Housings ................................

  • Page 6: Safety Precautions

    Pos : 11 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/Si cherheits hinweis e/S102 Sic herheits hinweise Gr oss anz eigen PFN RT @ 4\mod_1485272435525_48.doc x @ 27156 @ 12222222 @ 1 Safety precautions Important information Read these operating instructions before starting the unit. They provide you with important information on the use, safety and maintenance of the units.

  • Page 7: Disposal

    Disposal Units or unit parts which are no longer needed are to be disposed of in accordance with the regulations in effect in your country. Pos : 12 /Si ebert/Seitenumbr uc h @ 0\mod_1314194553878_0.doc x @ 150 @ @ 1 BAL S102 PFN RT 1.00 7/24...

  • Page 8: Model Designation

    Microsoft Windows 7 Professional, 64 Bit, english The quick start describes the parameterization of the display. Operation of the TIA Portal is required. The devices are delivered with the PROFINET name 'siebert-display'. Schritt Pos : 17 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/Quic k- Start für numerische Betriebs art (INT 32-F or mat)/S102 Sc hritt 1: Pr ojet öffnen PFN RT @ 4\mod_1485166120660_48.doc x @ 26821 @ 2 @ 1 Step 1: Open project Open your project in the Engineering-Framework.

  • Page 9: Step 3: Install The Gsdml File Of The Ad And Add The Display

    Install the GSDML file of the display. You find the file on the supplied data carrier or at www.siebert- group.com. After installation, the display is listed in the hardware catalog. Add the module 'siebert- display' to 'Devices & Networks/Network view'.

  • Page 10: Step 5: Add Sub-Modul To The Display And Define Address Range

    Step 5: Add sub-modul to the display and define address range Add the module 'Numerical Value' from the hardware catalog to the device overwiew. This specifies that the display expects the values to be shown in INT32 format. The module occupies 4 bytes (in this example the addresses 64 to 67).

  • Page 11: Step 6: Assign A Profinet Device Name To The Display

    Step 6: Assign a PROFINET device name to the display Now the IP address and the device name are assigned to the display. After the data has been successfully transferred to the display, the configuration is displayed as follows in the engineering tool. The display still shows 'P7'. Pos : 23 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/Quic k- Start für numerische Betriebs art (INT 32-F or mat)/S102 Sc hritt 7: Konfiguration i n die Steuer ung l aden PF N RT @ 4\mod_1485174374379_48.doc x @ 26922 @ 2 @ 1 Step 7: Download configuration in the controller After the control can connect via PROFINET with the display.

  • Page 12: Step 8: Transmit Data To The Display

    Step 8: Transmit data to the display To transmit a value to the display you can, for example, create a function chart with the instruction 'MOVE'. In the following screenshot the number '1234' is transmitted. Pos : 25 /Si ebert/Seitenumbr uc h @ 0\mod_1314194553878_0.doc x @ 150 @ @ 1 BAL S102 PFN RT 1.00 12/24...

  • Page 13: Quick Start For Alphanumeric Operation Mode (Ascii Format)

    Pos : 26 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/Quic k- Start für alphanumerisc he Betri ebs art ( ASC II-For mat)/Ü BS Quic k-Start für al phanumerische Betriebs art (ASCII-For mat) @ 4\mod_1485172288413_48.doc x @ 26882 @ 1 @ 1 Quick start for alphanumeric operation mode (ASCII format) Pos : 27 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/Quic k- Start für alphanumerisc he Betri ebs art ( ASC II-For mat)/S102 Quic k- Start für alphanumerisc he Betri ebs art ( ASC II-For mat) PFN RT @ 4\mod_1485172411216_48.doc x @ 26889 @ @ 1 If the display receives data in ASCII format it can display also characters and special characters which...

  • Page 14: Step 8: Transmit Values And Texts To The Display

    Step 8: Transmit values and texts to the display Since the display has two address areas in this operating mode, two function blocks (in the example 'Network 1' and 'Network 2') must also be defined. In 'Network 1' a function plan is defined with the 'MOVE' statement. In the example, the output area begins with AD64.

  • Page 15: Messages On The Display

    Meldungen Pos : 33 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/M eldung en der Anz eige/Ü BS Mel dungen der Anz eige @ 4 \mod_1485175421892_48.doc x @ 26936 @ 1 @ 1 Messages on the display Pos : 34 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/M eldung en der Anz eige/S1 02 M eldung en der Anz eige PFN R T @ 4\mod_1485175572236_48.doc x @ 26943 @ @ 1 The data traffic via PROFINET is indicated with status LEDs on both RJ45 sockets.

  • Page 16: Further Settings

     Number of leading zeros In addition, the S102 series offers the possibility - in both operation modes (INT32 and ASCII format) - to change all previously mentioned settings as well as the setting of the basic brightness (LED brightness) in 16 steps during normal operation (see chapter setting of the display mode in normal operation mode).

  • Page 17: Setting The Display Settings During Initialization (Numeric Operation Mode Only)

    Pos : 39 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/Ei nstellung der D arstellungsart bei der Ini tialisi erung (nur numerisc he Be triebsart)/Ü BS Ei nstellung der D arstellungsart bei der Ini tialisier ung ( nur numerisc he Betri ebsart) @ 4\mod_1485179307403_48.doc x @ 26968 @ 1 @ 1 Setting the display settings during initialization (numeric operation mode only) Pos : 40 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/Ei nstellung der D arstellungsart bei der Ini tialisi erung (nur numerisc he Betriebsart)/Einl eitungss atz PFN RT @ 4\mod_1485179498648_48.doc x @ 26975 @ @ 1 Initialization parameters are loaded once to the display.

  • Page 18: Attributes For Flashing And Blinking (Property Numbers 7 And 9)

    Attributes for flashing and blinking (property numbers 7 and 9) With these initialization values, the flashing modes for the standard display and the 'out of range' display can be defined. See chapter .Flashing modes. Pos : 46 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/Ei nstellung der D arstellungsart bei der Ini tialisi erung (nur numerisc he Betriebsart)/For mat/S102 F ormat (property numbers 10 und 11) PFN RT @ 4\mod_1485184357493_48.doc x @ 27053 @ 2 @ 1 Format (property numbers 10 and 11) These two initialization parameters define the alignment of the displayed values and the number of leading zeros.

  • Page 19: Flashing Modes And Display Attributes

    Pos : 48 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/Bli nkmodi und Anz eigenattribute/ÜBS Blinkmodi und Anz eigenattribute @ 4\mod_1485185305632_48.doc x @ 27074 @ 1 @ 1 Flashing modes and display attributes Pos : 49 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/Bli nkmodi und Anz eigenattribute/S102 Bli mnkmodi und Anzeige nattribute PFN RT @ 4\mod_1485185400259_48.doc x @ 27081 @ @ 1 The display can show the values to be displayed in a plurality of brightnesses and blinking patterns, which are referred to as "display attribute".

  • Page 20: Flags

    Flags Pos : 51 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/Fl ags/ÜBS Fl ags @ 4 \mod_1485186783223_48.doc x @ 27087 @ 1 @ 1 Flags Pos : 52 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/Fl ags/S102 Flags PFN RT @ 4\mod_1485186833733_48.doc x @ 27094 @ @ 1 INT16 flags are to set specific display properties.

  • Page 21: Setting The Display Mode In Normal Operation

    Pos : 54 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/Ei nstellung der D arstellungsart i m nor mal en Betri eb/ÜBS Eins tell ung der Darstellungsar t i m nor malen Betrieb @ 4 \mod_1485188431175_48.doc x @ 27100 @ 1 @ 1 Setting the display mode in normal operation Pos : 55 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/Ei nstellung der D arstellungsart i m nor mal en Betri eb/S102 Einstellung der D arstell ungs art i m normalen Betrieb PFN RT @ 4\mod_1485188530258_48.doc x @ 27107 @ @ 1 The settings defined in chapter 'Setting the display settings during initialization' are defined in the...

  • Page 22: Setting Of The Display Modes

    Setting of the display modes With these setting options, the representation of the number which is transmitted cyclically via PROFINET is influenced. To control a specific property, a 'generic property value module' is added. In the parameters of this module, in the Property-group the property 'Property of display field' is selected and in the field 'Property-number the desired property is entered in the 'Property number' field.

  • Page 23: Technical Data

    Pos : 59 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/T echnisc he D aten/Ü BS T echnisc he Daten @ 2\mod_1399558216146_48.doc x @ 8528 @ 1 @ 1 Technical data Anzeige Pos : 60 /Si ebert/Bedi enungsanlei tungen/Seri e S102/SX102/T echnisc he D aten/Geräteaus führung/S102 Technisc he Daten PFN RT @ 4\mod_1485270445981_48.doc x @ 27134 @ 222222 @ 1 Display Character height 14 mm...
  • Page 24 BAL S102 PFN RT 1.00 24/24...
