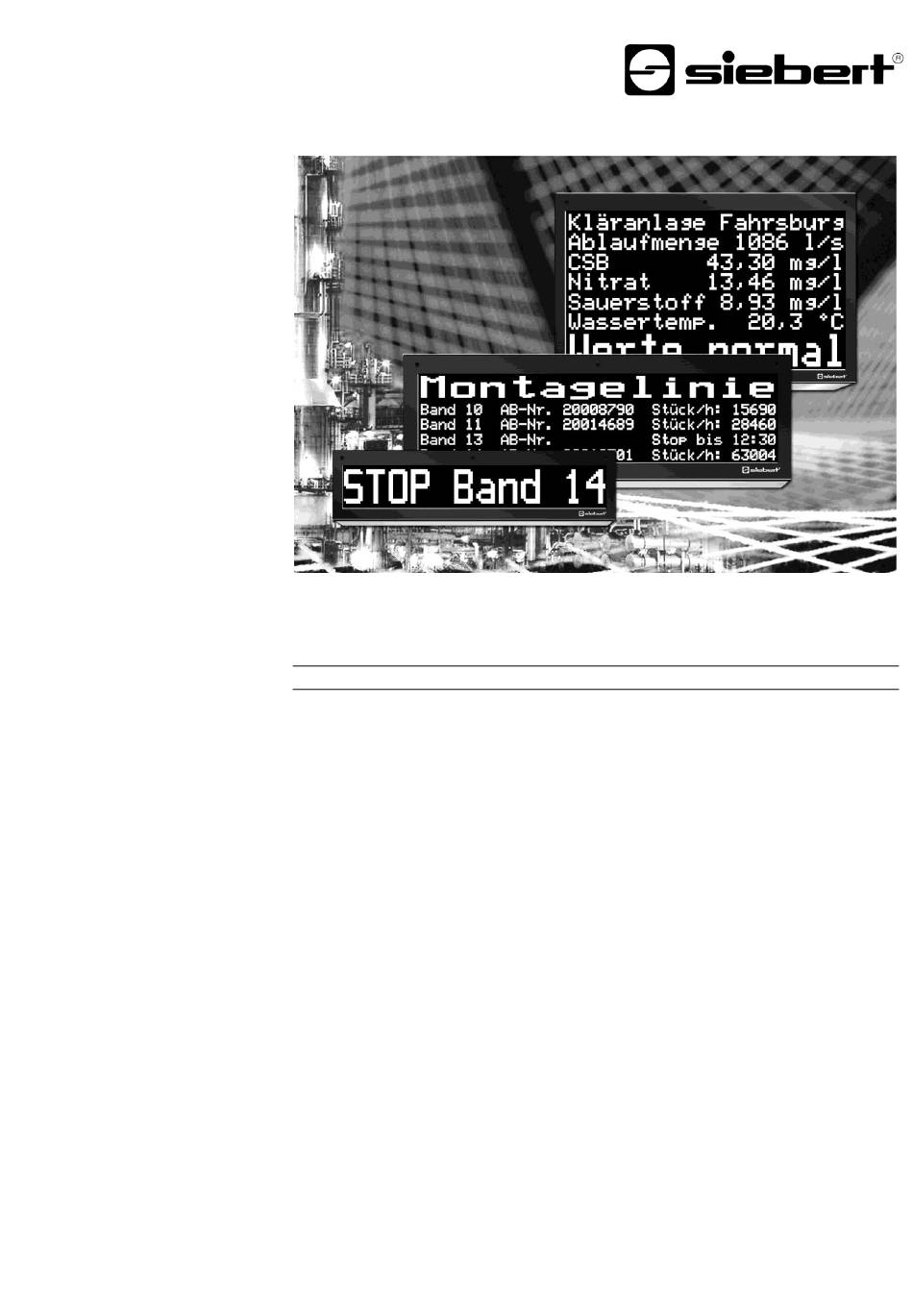

- Page 1 Operating instructions Series SX502 Alphanumeric large size displays with parallel interface BAL SX502 PAR EN 3.21...
- Page 2 We always appreciate your suggestions for improvement, corrections, comments and proposals. Please contact us: editing@siebert-group.com Siebert®, LRD® and XC-Board® are registered trademarks of Siebert Industrieelektronik GmbH. All other product names mentioned herein may be trademarks or registered trademarks of their respective owners.
-
Page 3: Table Of Contents
Table of contents Chapter 1 Safety precautions Important information Safety Intended use Mounting and installation Battery replacement Grounding EMC measures Disposal Chapter 2 Unit description Model designation Unit construction Display range Principle circuit diagram Central Processing Unit Parameterization Parallel interface Function inputs Signal voltage Serial Interface... - Page 4 Chapter 6 Status messages Fault messages Chapter 7 Technical data Unit properties Housing colors Front frame Ambient conditions Max. Power consumption Screw type terminals Fixed text memory Real-time clock Marquee Chapter 8 Unit measurements and weights Units with character height of 33/66/75 mm and one-sided display Units with character height of 33/66/75 mm...
-
Page 5: Chapter 1 Safety Precautions
Chapter 1 Safety precautions Important information Read these operating instructions before starting the unit. They provide you with important information on the use, safety and maintenance of the units. This helps you to protect yourself and prevent damage to the unit. Information intended to help you to avoid death, bodily harm or considerable damage to property are highlighted by the warning triangle shown here;... - Page 6 Battery replacement The units have a lithium battery used for data security of the real-time clock. The battery can explode if replaced improperly. Grounding All devices are equipped with a metal housing. They comply with safety class I and require a protective earth connection. The connecting cable for the operating voltage must contain a protective earth wire of a sufficient cross section (DIN VDE 0106 part 1, DIN VDE 0411 part 1).
-
Page 7: Chapter 2 Unit Description
Chapter 2 Unit description Model designation The model designation of the units is: SX502-xxx/xx/xx-xxx/xx-P0 x = The 'x's in the model designation indicate the size and design of the units. Unit construction The following figure shows model type SX502-220/05/xx-xxx/xx-xx as example for the other model types. -
Page 8: Principle Circuit Diagram
Principle circuit diagram AaBbCcDdEeFfGgHhIiJj 01234567890123456789 Central Processing Unit Battery Power supply unit RS232 Function Serial Parallel interface Power supply inputs Interface Central Processing Unit The following figure shows the Central Processing Unit: Battery Serial Interface S1 S2 Menu display Parallel DATA Interface Function inputs... -
Page 9: Serial Interface
Serial interface The serial interface RS232 is determined for programming the device using a computer, for example for loading static texts in the text memory and for installing character sets by means of the PC tools 'DisplayManager' provided on data carrier. The interface RS232 is located on a D-Sub connector with the following assignment: –... -
Page 10: Led Matrix
Chapter 3 Character display LED-matrix The characters are displayed on an LED matrix. A matrix module is 16 LED dots (pixels) high and, depending on the unit version, the following number of pixels wide: Unit versions SX502-x20/xx/xx-xxx/xx-xx: 120 pixels Unit versions SX502-x40/xx/xx-xxx/xx-xx: 240 pixels Character display The units feature several different character sets, which will be elaborated on later. -
Page 11: Multi-Line Units
Charater set Character display 120 x 16 pixels 240 x 16 pixels AaBbCcDdEeFfGgHhIiJj Acala 7* 2 x 20 2 x 40 AaBbCcDdEeFfGgHhIiJj AaBbCcDdEe Acala 7 2 x 10 2 x 20 AaBbCcDdEe extended* AaBbCdDdEeFf Acala 14 1 x 12 1 x 24 condensed* AaBbCcDdEe Acala 14... -
Page 12: Character Height
Thus the distance between the first and second lines is the same as between the second and third lines. The SX502 series also includes units with three or four vertically arranged matrix modules. They can display six or eight lines with the Acala 7 character set and three or four lines with the Acala 14 condensed character set. -
Page 13: Character Table
Character table ... -
Page 14: Text Memory
Chapter 4 Control Text memory The text is compiled using the PC tool 'Text Manager' delivered on data carrier and loaded in the text memory via the serial interface. After that, they can be opened via their text number. Function table The control of the device is done acc. -
Page 15: Flashing
Texts into which variables are to be inserted are given placeholders for the variables (up to 256). After the text call [1 ... 6] the placeholders are dark. The variables appear in the display when they are encoded in binary form at the data inputs K7 ... -
Page 16: Menu Display
Chapter 5 Parameterization Menu display The parameterization of the devices is carried out in a menu of the menu display. In normal operation, the status messages appear in the menu display. Menu operation To start the menu, press both menu buttons simultaneously (approx. 1 sec.) until the first signal appears in the menu display. - Page 17 Menu item Settings Menu display Initial text Not displaying initial text* Displaying initial text Paging interval 3 seconds * 30 seconds * Standard character set Acala 7* Acala 7 extended Not applicable ...
-
Page 18: Initial Text
Initial text Once the operating voltage has been applied, an LED dot in the upper left-hand corner of the display illuminates to indicate that the unit is ready for operation. If an initial text is to appear in the display instead (e.g. 'System operational'), this text is to be stored in the text memory with text number 0, and displaying of the initial text is to be set in menu item 20. - Page 19 Chapter 6 Status messages Fault messages Serious faults due to improper operation or faulty operating conditions are indicated in the display. The following messages are possible: Fault message Cause Elimination No Text The text called up is not saved in the The text is to be loaded into the fixed text memory.
- Page 20 Chapter 7 Technical data SX502 – – – 2 lines 4 lines 6 lines 8 lines 20 characters/line* 40 characters/line* Character height 33/66/75 mm Character height 50/100/120 mm Standard LED LED for outdoor use Character color red Switchable red/green/orange character color Display readable on one side Display readable on both sides Steel sheet housing, coated...
- Page 21 Max. power consumption Units with character height of 33/66/75 mm One-sided display Double-sided display SX502-220/03/0R-1xx/xx-xx approx. 40 VA SX502-220/03/0R-2xx/xx-xx approx. 75 VA SX502-220/03/0M-1xx/xx-xx approx. 65 VA SX502-220/03/0M-2xx/xx-xx approx. 130 VA SX502-420/03/0R-1xx/xx-xx approx. 75 VA SX502-420/03/0R-2xx/xx-xx approx. 140 VA SX502-420/03/0M-1xx/xx-xx approx. 130 VA SX502-420/03/0M-2xx/xx-xx approx.
- Page 22 Chapter 8 Unit measurements and weights Units with character height of The following figure shows unit version SX502-640/03/0x-1xx/xx-xx, representing 33/66/75 mm and one-sided the other unit versions listed in the following table. All dimensions are in mm. display LG1, LG2 and LG3 are ventilation grates on units ventilated by other means. The ventilation grates and their arrangement are not displayed dimensionally.
- Page 23 Units with character height of The following figure shows unit version SX502-640/03/0x-2xx/xx-xx, representing 33/66/75 mm and double- the other unit versions listed in the following table. All dimensions are in mm. sided display LG1, LG2, LG3 and LG4 are ventilation grates on units ventilated by other means. The ventilation grates and their arrangement are not displayed dimensionally.
-
Page 24: Sx502-220/05/0R-1Xx/Xx-Xx
Units with character height of The following figure shows unit version SX502-820/05/0x-1xx/xx-xx, representing 50/100/120 mm and one-sided the other unit versions listed in the following table. All dimensions are in mm. display LG1, LG2, LG3 and LG4 are ventilation grates on units ventilated by other means. The ventilation grates and their arrangement are not displayed dimensionally. -
Page 25: Sx502-640/05/0R-1Xx/Xx-Xx
The following figure shows unit version SX502-640/05/0x-1xx/xx-xx, representing the other unit versions listed in the following table. All dimensions are in mm. LG1, LG2 and LG3 are ventilation grates on units ventilated by other means. The following table specifies the ventilation grates of the individual unit versions. Unit version Weight –... -
Page 26: Sx502-220/05/0R-2Xx/Xx-Xx
Units with The following figure shows unit version SX502-820/05/0x-2xx/xx-xx, representing character height of 50/100/120 the other unit versions listed in the following table. All dimensions are in mm. mm and double-sided display LG1, LG2, LG3 and LG4 are ventilation grates on units ventilated by other means. The ventilation grates and their arrangement are not displayed dimensionally. -
Page 27: Sx502-240/05/0R-2Xx/Xx-Xx
The following figure shows unit version SX502-440/05/0x-2xx/xx-xx, representing the other unit versions listed in the following table. All dimensions are in mm. LG1, LG2 and LG3 are ventilation grates on units ventilated by other means. The following table specifies the ventilation grates of the individual unit versions. Unit version Weight –... -
Page 28: Sx502-640/05/0R-2Xx/Xx-Xx
The following figure shows unit version SX502-840/05/0x-2xx/xx-xx, representing the other unit versions listed in the following table. All dimensions are in mm. LG1, LG2 and LG3 are ventilation grates on units ventilated by other means. The ventilation grates and their arrangement are not displayed dimensionally. The following table specifies the ventilation grates of the individual unit versions.
