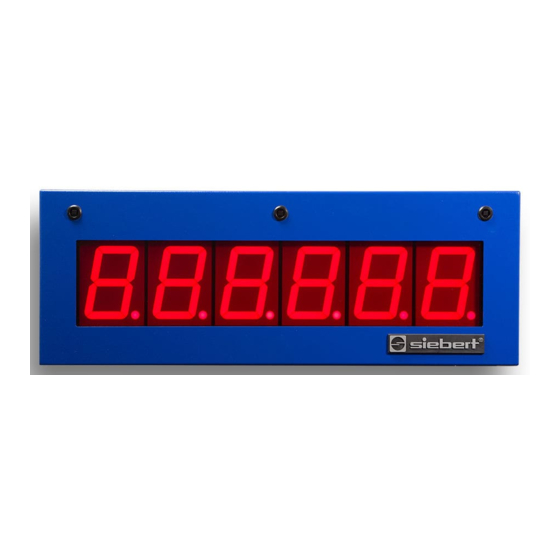

- Page 1 Pos : 2 /Siebert/Bedienungs anl eitungen/Serie S302/SX302/Ti tels eiten/S302 FR Q @ 0\mod_1329484493314_48.doc x @ 4027 @ @ 1 Operating instructions Series S302 Numeric large size displays with frequency meter function Pos : 3 /Siebert/Seitenumbruc h @ 0\mod_1314194553878_0.doc x @ 150 @ @ 1...
-
Page 2: Contact
Pos : 4 /Siebert/Bedienungs anl eitungen/Gerätebesc hr eibung Gross anz eigen all e Serien/Kontakt @ 1 \mod_1339668951540_48.doc x @ 4323 @ 1 @ 1 Contact www.siebert-group.com GERMANY Siebert Industrieelektronik GmbH Siebertstrasse, D-66571 Eppelborn P.O. Box 11 30, D-66565 Eppelborn Phone +49 (0)6806 980-0, Fax +49 (0)6806 980-999 email info.de@siebert-group.com... -
Page 3: Legal Note
Pos : 6 /Siebert/Bedienungs anl eitungen/Gerätebesc hr eibung Gross anz eigen all e Serien/R ec htlic her Hi nweis @ 1\mod_1339668878995_48.doc x @ 4317 @ 1 @ 1 Legal note © Siebert Industrieelektronik GmbH This operation manual has been prepared with the utmost care. However, we do not accept any liability for possible errors. -
Page 4: Table Of Contents
Pos : 8 /Siebert/Bedienungs anl eitungen/M odul Inhalts verzeic hnis @ 1\mod_1352981287156_48.doc x @ 5155 @ @ 1 Table of contents 1 Contact 2 Legal note 3 Safety precautions Important information ............................5 Safety ................................. 5 Intended use ............................... 5 Mounting and installation ............................ -
Page 5: Safety Precautions
Pos : 11 /Si ebert/Bedi enungsanlei tungen/Ger ätebesc hrei bung Gr oss anzeigen alle Serien/Sicherheits hinweis e Gr oss anzeigen @ 1\mod_1385723449297_48.doc x @ 7018 @ 12222222 @ 1 Safety precautions Important information Read these operating instructions before starting the unit. They provide you with important information on the use, safety and maintenance of the units. -
Page 6: Emc Measures
EMC measures The devices comply with the EU Directive 2004/108/EC (EMC Directive) and provide the required interference immunity. Observe the following when connecting the operating voltage and data cables: Use shielded data cables. The data and operating voltage cables must be laid separately. They may not be laid together with heavy-current cables or other interference-producing cables. -
Page 7: Unit Description
Pos : 13 /Si ebert/Bedi enungsanlei tungen/Seri e S302/SX302/Gerätebesc hrei bung/ÜBS Ger ätebesc hrei bung @ 0 \mod_1315481662300_48.doc x @ 1005 @ 1 @ 1 Unit description Pos : 14 /Si ebert/Bedi enungsanlei tungen/Seri e S302/SX302/Gerätebesc hrei bung/Geltungs ber eich/S302 Geltungs ber eich FRQ @ 0\mod_1317288830120_48.doc x @ 2837 @ 2 @ 1 Model designation This manual applies to units with the following model designation (x = the 'x's in the model designation indicate the size and design of the units (see Chapter 8):... -
Page 8: Control
Pos : 18 /Si ebert/Bedi enungsanlei tungen/Seri e S302/SX302/Ans teuerung/ÜBS Ans teuerung @ 0\mod_1315481589472_48.doc x @ 998 @ 1 @ 1 Control Pos : 19 /Si ebert/Bedi enungsanlei tungen/Seri e S302/SX302/Ans teuerung/S302 Stec kerbeleg ung FR Q @ 0 \mod_1317295556336_48.doc x @ 2852 @ 2 @ 1 Pin assignment The following figure shows the printed circuit board with the two terminals to which the pulse generator is connected to. - Page 9 This results in the following combinations: Frequency range Course of updating >200 Hz Last valid value 1Hz…200 Hz Once every second 0,01 Hz…1Hz With the next edge of the input signal <0,01 Hz 1. Display remains on its value 2. After a few seconds it is switched to 0 3.
-
Page 10: Parametrization
Pos : 24 /Si ebert/Bedi enungsanlei tungen/Seri e S302/SX302/Par ametri erung/ÜBS Par ametrierung @ 0 \mod_1315481752944_48.doc x @ 1019 @ 1 @ 1 Parametrization Pos : 25 /Si ebert/Bedi enungsanlei tungen/Seri e S302/SX302/Par ametri erung/S302 Konfigurati on FRQ @ 0\mod_1317297342600_48.doc x @ 2872 @ 2 @ 1 Configuration If necessary the display can be configured via serial interface or via Bluetooth, after consultation with our support. -
Page 11: Technical Data
Pos : 30 /Si ebert/Bedi enungsanlei tungen/Seri e S302/SX302/T echnisc he D aten/Ü BS T echnisc he Daten @ 0\mod_1314712092954_48.doc x @ 354 @ 1 @ 1 Technical data Pos : 31 /Si ebert/Bedi enungsanlei tungen/Seri e S302/SX302/T echnisc he D aten/Geräteaus führung/S302 Geräteausführ ung FR Q @ 1\mod_1385123226118_48.doc x @ 6937 @ 2 @ 1 Unit properties The model designation is structured as follows: –... -
Page 12: Max. Power Consumption
Pos : 32 /Si ebert/Bedi enungsanlei tungen/Seri e S302/SX302/T echnisc he D aten/M axi male Leistungs aufnahme/S302 M axi mal e Lei stungs aufnahme FR Q, ZLR @ 1\mod_1379582018635_48.doc x @ 6819 @ 2 @ 1 Max. power consumption Units with one-sided display Units with double-sided display 1 digit 1 digits... -
Page 13: Screw-Type Terminals
For units with built-in heating, the values for power consumption specified in the table increase by approx. 10 – 100 VA (exact values on request), depending on the unit size). Pos : 33 /Si ebert/Bedi enungsanlei tungen/T ec hnisc he D aten Grossanz eigen Ü ber eins timmung versc h. Serien/Schr aubkl emmen S302 SX502 @ 0\mod_1315485201477_48.doc x @ 1498 @ 2 @ 1 Screw-type terminals Capacity of terminals 0,14…1,5 mm²... -
Page 14: Measurements And Weights
Pos : 37 /Si ebert/Bedi enungsanlei tungen/Seri e S302/SX302/T echnisc he D aten/Abmes sungen und Gewic hte/S302 Abmess ung en und Gewic hte FR Q @ 1\mod_1386246731358_48.doc x @ 7126 @ 2 @ 1 Measurements and weights Units with one-sided display The following figure shows unit version S302-04/10/4x-1xx/xx-xx, representing the other unit versions listed in the following table. - Page 15 Units with double-sided display The following figure shows unit version S302-04/10/4x-2xx/xx-xx, representing the other unit versions listed in the following table. Units with character height of 57 mm (S302-xx/06/xx- 2xx/xx-xx) are provided with 2 eyes instead of 4 1 digit Weight S302-01/10/xx-2xx/xx-xx 330 mm...
- Page 16 Units with one-sided display and dimension symbol The following figure shows unit version S302-F3/10/4x-1xx/xx-xx, representing the other unit versions listed in the following table. ∅ 1 digit + dimension Ø Weight S302-F1/10/xx-1xx/xx-xx 330 mm 245 mm 145 mm 32 mm 7 mm approx.
- Page 17 Units with double-sided display and dimension symbol The following figure shows unit version S302-F3/10/4x-2xx/xx-xx, representing the other unit versions listed in the following table. Units with character height of 57 mm (S302-xx/06/xx- 2xx/xx-xx) are provided with 2 eyes instead of 4 1 digit + dimension Weight S302-F1/10/xx-2xx/xx-xx...
