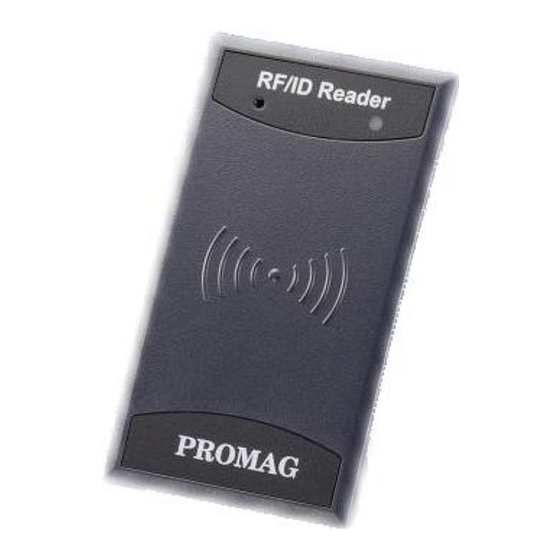

  • Page 1 ® ® Mifare DESFire Reader User’s Manual (For DF7XX Series) REV.C November 30, 2011...
  • Page 2: Table Of Contents

    DF7XX PROMAG REV.C Table of Contents ® Mifare Configurable Sector Reader ..................3 ® Mifare Application Directory (MAD) Support: ................ 4 ® Mifare User-Data Format ......................5 Wires Assignment ........................... 6 ® ® Mifare DESFire Reader Utility ....................7 ®...
  • Page 3: Mifare ® Configurable Sector Reader

    DF7XX PROMAG REV.C ® Mifare Configurable Sector Reader Overview: ® ® DF7XX Reader is a user configurable mifare sector data reader. It can be configured to read mifare card ® with MAD1/MAD2/MAD3 standard in a mifare application open system, or can be configured to read the user-defined sector data (Non-MAD) in a user defined closed system.
  • Page 4: Mifare ® Application Directory (Mad) Support

    DF7XX PROMAG REV.C ® Mifare Application Directory (MAD) Support: ® DF7XX reader support the MAD format card, the MAD (mifare application directory) standard proposes the introduction of common data structures for card application directory entries. DF7XX Reader should take advantage of this feature using those sector pointers instead of physical sector number.
  • Page 5: Mifare ® User-Data Format

    DF7XX PROMAG REV.C ® Mifare User-Data Format DF7XX reader will send out the data following the format as below, the user data length defined by the Data-Info. At Wiegand output format, the data output length is fixed (defined by Number Of Bits), so the user data would be cut if longer than Number of Bits, or the user data would be appended with zero “0”...
  • Page 6: Wires Assignment

    DF7XX PROMAG REV.C Wires Assignment Color Symbol Description Power Input : DC 7.5V~24V Black Power Ground White DATA 1 Wiegand Data 1 Signal / ABA TK2 Clock (Strobe) Green DATA 0 Wiegand Data 0 Signal / ABA TK2 Data Yellow...
  • Page 7: Mifare ® Desfire ® Reader Utility

    DF7XX PROMAG REV.C Mifare DESFire Reader Utility ® ® ® 1. DESFire Settings MAD-AID: (Default=F47030) ® .net upon the customer’s MAD Application Identifier number is authorized and assigned by Mifare ® request for registered Application Identifier in a mifare application open system (AID: 000000h~FFFFFFh).
  • Page 8: Mifare ® Settings

    DF7XX PROMAG REV.C Offset/Length: (Default=0 / 5) The Data file will depend on the value to output data. The Value file will be sent the value out. The Record file will be sent the latest record data. Access Key No/Value: (Default=0 / 00000000000000000000000000000000) Key must be the same as the Read or Read/Write KEY of the card issued.
  • Page 9 DF7XX PROMAG REV.C Non-MAD Sector: (Default =0) When the card is Non-MAD format, DF7XX reader will only read the “Non-MAD Sector”. (1K Card Sector: 0~15, 4K Card Sector: 0~39). For the Non-MAD application, user can freely define the Sector. App Key (KEY_A): (Default=FFFFFFFFFFFF) App Key must be the same as the KEY_A of the card issued.
  • Page 10: Reader Settings

    DF7XX PROMAG REV.C 3. Reader Settings Reader ID: (Default=0) DF7XX Reader ID for multi link application. (ID: 0~63) Interface: (Default=Wiegand) DF7XX reader can be set as Wiegand , RS232 or ABA-TK2 output. Read Mode: (Default=Card Data Only) ® a. Card Data Only: Read card sector data only; If any error (ex. mifare key error), reader will show “Card Invalid”...
  • Page 11: Led / Buzzer Settings

    DF7XX PROMAG REV.C 4. LED / Buzzer Settings Enable RS232 Command Set Control: (For 19200,n,8,1 Only) RS232 LED/Buzzer command set frame as below: NUMBER (0~9) 30h~39h Command Table: NUMBER Descriptions 0 (30h) All LED Off, Buzzer Off 1 (31h) Green LED ON...
  • Page 12 DF7XX PROMAG REV.C Enable Two Wires Control LED / Disabled ABA-TK2: (For 19200,n,8,1 only) set up the "Brown Wire Active Level", and Brown wire and Orange wire will follow the setting. Example: "Brown Wire Active Level"=High; Green light on with a beep when brown wire level was high.
  • Page 13: Wiegand Setting

    DF7XX PROMAG REV.C 5. Wiegand Setting Include Reader ID is to set the Wiegand output data to include Reader ID when it is enabled. (Default=Disable). Custom Premable is to set the Wiegand output data to include premable code when it is enabled.
  • Page 14: Aba-Tk2 Settings

    DF7XX PROMAG REV.C 6. ABA-TK2 Settings Number Of Digital: Set number of digital codes for TK2 output. (Default=10) Add Reader ID: Add Reader ID into TK2 data. (Default=Disable) Output Data Order: Set the TK2 output data sequence order. (Default=MSB First) Source Data Order: Set the TK2 source data sequence order.
  • Page 15: Rs232 Output Setting

    DF7XX PROMAG REV.C 7. RS232 Output Setting Baud rate can be set 2400bps~57600bps (Default=9600bps) Data Sequence can be set “LSB” first and “MSB” first(Default). Package is to set the output data packet to include Header, Reader ID, Data Length, CR, LF and Trailer.
  • Page 16 DF7XX PROMAG REV.C Note: (1).Wiegand output data packet with Reader ID: Standard Parity(Even) Reader ID (MSB) Data Bits (LSB) Parity(Odd) Reverse Parity(Odd) Reader ID (LSB) Data Bits (MSB) Parity(Even) (2).RS232 output data packet with Header, Reader ID and Trailer: Header...
  • Page 17: Configured Card

    DF7XX PROMAG REV.C 8. Configured Card ® Configured Card Enabled can allow your reader change configuration by Mifare Card. ® Key is the Mifare Key A for allowed configured card.
  • Page 18: Test Reader After Update

    DF7XX PROMAG REV.C 9. Test Reader After Update After reader’s configurations have been updated success, you can use [Test] function to check reader’s configurations have been correctly stored. 1. After set configurations in the Reader Utility software, you can click [Update Reader] to update the currently configurations to the reader.
  • Page 19: Annex A. Hardware Specification

    DF7XX PROMAG REV.C ANNEX A. Hardware Specification DF7XX reader ® ® Major Feature Mifare DESFire Application Directory Reader Access Control & Security ® Card Type ISO14443A, Mifare Class ® ® (Mifare 1K, Mifare 4K for MAD1/MAD2) ® DESFire RF Frequency 13.56MHz...
  • Page 20: Annex B. Wiegand Interface

    DF7XX PROMAG REV.C ANNEX B. Wiegand Interface The Data 1 and Data 0 signals are held at a logic high level unit, the reader is ready to send a data stream. The reader places data as asynchronous low-going pulses on the Data 1 or Data 0 lines to transmit the data stream to Host.
  • Page 21: Annex C. Aba Tk2 Interface

    DF7XX PROMAG REV.C ANNEX C. ABA TK2 Interface The timing for Card Present, Clock (Strobe) and Data, example as below: /CARD PRESENT Leading Zero Data Trailing Zero /DATA /STROBE (CLOCK) 0 . . . 0 1 . . . STROBE Width Approximately 25~50% Of Bit Time...
  • Page 22: Annex D. Rs232 Interface

    DF7XX PROMAG REV.C ANNEX D. RS232 Interface Connect the RS232 wires, example as below: HOST/Terminal 7.5~24VDC (Red) DF700 TXD (Yellow) GND (Black) Optional: External LED/Buzzer Control (Brown)
  • Page 23: Annex E. External Led/Buzzer Control

    DF7XX PROMAG REV.C ANNEX E. External LED/Buzzer Control DF7XX reader supports the external LED/Buzzer control for Terminal (or Host) to prompt end-user the card data is invalid or valid. Use Brown wire to control the LED/Buzzer of DF7XX reader Examples as below: (Active High)
  • Page 24: Annex F. Order Information

    DF7XX PROMAG REV.C ANNEX F. Order Information Part Number Include Description ® DF700-00 DF700-00 DF700 DESFire Configurable Reader MF700KIT-10 MF700KIT Reader Kit WAS-T0029 MF7XX Configure Cable DISK5238 Card Issue and Utility Software Power Adaptor DC Power Adaptor 9VDC for MF7XXKIT ®...
  • Page 25: Annex G. Webisp - Firmware Upgrade Utility

    DF7XX PROMAG REV.C ANNEX G. WebISP - Firmware Upgrade Utility DF7XX reader also supports the ISP (In-System Program) function to upgrade the reader’s firmware. Install the WebISP (include in CD-ROM) in your Windows System first (It may need to reboot your system) and follow the steps as below: (First of all, you need to connect...
  • Page 26 DF7XX PROMAG REV.C Step 3: If your reader’s or programmer’s firmware out of date, then WebISP will prompt you to update the firmware. Click [Update] to begin Updating the firmware. Step 4: Wait for the updating to finish. And repeat step 2 to update other readers or programmers.
  • Page 27: Annex H. Configured Card

    DF7XX PROMAG REV.C ANNEX H. Configured Card ® You can configure the reader by Mifare Card when the "Configured Card Enabled" is enabled. Step 1: Connect the PCR310 to PC for issuing card. Click "Auto Scan" Choose "DF700/DF750 Series" Choose “DF700-00/DF750-00”...
  • Page 28 DF7XX PROMAG REV.C Step 3: Type in correct "Configured Key" as same as reader configured before. ® Put an empty Mifare Card. Click "Create" Finish Take this card to approach the reader for configured settings.
  • Page 29: Annex I. Key Pad Settings (For Df750K/Df760K)

    DF7XX PROMAG REV.C ANNEX I. Key Pad Settings (for DF750K/DF760K) (Default=Wiegand 8Bits) a. Wiegand 4,6,8: Send Wiegand signal pre key pressing. b. ASCII Hex Code: Send ASCII code pre key pressing. c. Buffering(Decimal): press 0~65535 number and press "#" to send decimal number.("*" to cancel)
  • Page 30: Annex J. History

    DF7XX PROMAG REV.C ANNEX J. History Rev A: February 12, 2009 Issue DF7XX Reader. Rev B: October 29, 2009 Fix power supply 7.5V~24VDC Rev C: November 30, 2011 (Kylie) Update Mifare Reader Utility Pics. Modify Reader ID to 0~63. Add “Source Data Order”. (P.14) Modify “Sequence Order”...
  • Page 31 DF7XX PROMAG REV.C PROMAG ® GIGA-TMS INC. http://www.gigatms.com.tw mailto:promag@gigatms.com.tw TEL : +886-2-26954214 FAX : +886-2-26954213 Office: 8F, No. 31,Lane 169, Kang-Ning St.,Hsi-Chih, Taipei, Taiwan...
