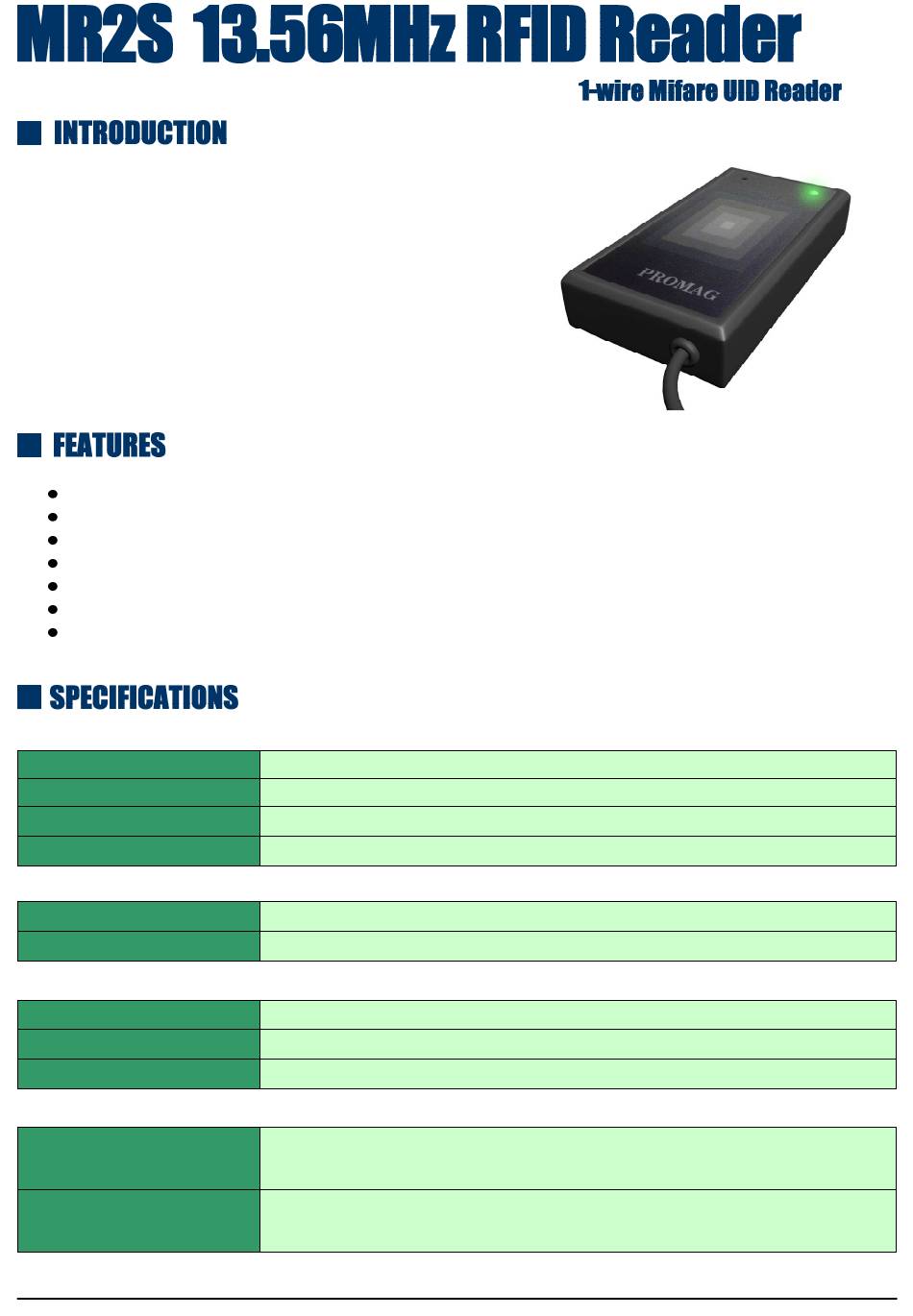

MR2S is Mifare UID Reader with 1-Wire and
RS232 interface, designed to integrate with
vehicle trackers and the other controllers.
With 10~48VDC power input, it's convenient to
install the reader in different vehicles. It aims to
offer more flexibility to build solutions at
affordable cost, can be used alternatively for
iButton and get your solution working with low
cost Mifare cards.
Frequency: 13.56MHz
Read UID of ISO 14443A Mifare, DESFire card
Support data Output 1-Wire, RS232
Support the other 1-Wire input interface
Available to install on metal surface
Available to install on different vehicles
Weather resistant
OPERATING
Transmit Frequency
Transponder
Reading distance
Interface
ELECTRICAL
Power Input
Current Consumption
MECHANICAL
Dimensions
Weight
Cable Length
ENVIRONMENTAL
Temperature
Humidity
13.56MHz Standard
ISO14443A Mifare, DESFire, Ultralight card
2~5 cm Typ
1-Wire & RS-232
10 to 48 VDC
About 30 mA @12VDC
Length : 77.5 mm / Width : 42.5 mm / Height : 15 mm
85 gm (With Cable)
90 cm +/- 2cm
Operating : -20 ℃ to 70 ℃
Storage : -30 ℃ to 80 ℃
Operating : 10 % to 90 % noncondensing
Storage : Up to 90 % noncondensing
TM951333-2
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Promag MR2S
Summary of Contents for Promag MR2S
- Page 1 MR2S is Mifare UID Reader with 1-Wire and RS232 interface, designed to integrate with vehicle trackers and the other controllers. With 10~48VDC power input, it’s convenient to install the reader in different vehicles. It aims to offer more flexibility to build solutions at...
-
Page 2: Limitation On Liability
LIMITED WARRANTY Giga-Tms warrants that the products sold pursuant to this Agreement will perform in accordance with Giga- Tms’s published specifications. This warranty shall be provided only for a period of one year from the date of the shipment of the product from Giga-Tms (the “Warranty Period”). This warranty shall apply only to the “Buyer”... - Page 3 Front View Bottom View PIN 1 LED Indicator Green Description Standby Blink Read OK Blink Read Error ISP Mode Sound Indicator Buzzer Description Read OK Bi-Bi-Bi Read Error 6 Pin Terminal Color Signal Description Power Input: 10~48 Volts Black Power Ground Blue 1-WIRE DATA In/Out...
- Page 4 The CR\LF characters serve to bring the received screen text back to the left hand side and on the line below after the data bytes have been sent. The ‘ETX’ (03 HEX) character denotes the end of the current transmission. [Ex.] Get Device Name Host to MR2S “D” Host form MR2S “A” “MR2S”...
- Page 5 The default interface for MR2S/MF7S is 1-Wire. For RS232 interface, please follow its pin assignment as below and use software to set up interface. 1.Connect the MR2S/MF7S unit with your computer RS232 BLACK WHITE YELLOW 2.Download 1-Wire Reader Configure software from below link for installation: http://ftp.gigatms.com.tw/disks/disk5478...
- Page 6 CAUTION: The crossed out wheeled bin label that can be found on your product indicates that this product should not be disposed of via the normal household waste stream. To prevent possible harm to the environment or human health please separate this product from other waste streams to en-sure that it can be recycled in an environmentally sound manner.
- Page 7 MF7S is Mifare UID Reader with 1-Wire and RS232 interface, designed to integrate with vehicle trackers and the other controllers. With 10~48VDC power input, it’s convenient to install the reader in different vehicles. It aims to offer more flexibility to build solutions at affordable cost, can be used alternatively for iButton and get your solution working with low cost Mifare cards.
- Page 8 LIMITED WARRANTY Giga-Tms warrants that the products sold pursuant to this Agreement will perform in accordance with Giga- Tms’s published specifications. This warranty shall be provided only for a period of one year from the date of the shipment of the product from Giga-Tms (the “Warranty Period”). This warranty shall apply only to the “Buyer”...
- Page 9 Front View Bottom View PIN 1 LED Indicator Green Description Standby Blink Read OK Blink Read Error ISP Mode Sound Indicator Buzzer Description Read OK Bi-Bi-Bi Read Error 6 Pin Terminal Color Signal Description Power Input: 10~48 Volts Black Power Ground Blue 1-Wire DATA In/Out...
- Page 10 The ‘ETX’ (03 HEX) character denotes the end of the current transmission. [Ex.] Get Device Name Host to MF7S “D” Host form MF7S “A” “MR2S” Get Device Version Host to MF7S “V” Host form MF7S “A” “ROM-T1679”...
- Page 11 The default interface for MR2S/MF7S is 1-Wire. For RS232 interface, please follow its pin assignment as below and use software to set up interface. 1.Connect the MR2S/MF7S unit with your computer RS232 BLACK WHITE YELLOW 2.Download 1-Wire Reader Configure software from below link for installation: http://ftp.gigatms.com.tw/disks/disk5478...
- Page 12 CAUTION: The crossed out wheeled bin label that can be found on your product indicates that this product should not be disposed of via the normal household waste stream. To prevent possible harm to the environment or human health please separate this product from other waste streams to en-sure that it can be recycled in an environmentally sound manner.
- Page 13 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
