Analog Devices Blackfin Audio EZ-Extender Manual

Analog Devices Blackfin Audio EZ-Extender Manual

Daughter board to the ez-kit lite evaluation system for the adsp-bf533, adsp-bf537, and adsp-bf561 blackfin processors.
Hide thumbs Also See for Blackfin Audio EZ-Extender:
Table of Contents

Advertisement

Quick Links

Download this manual

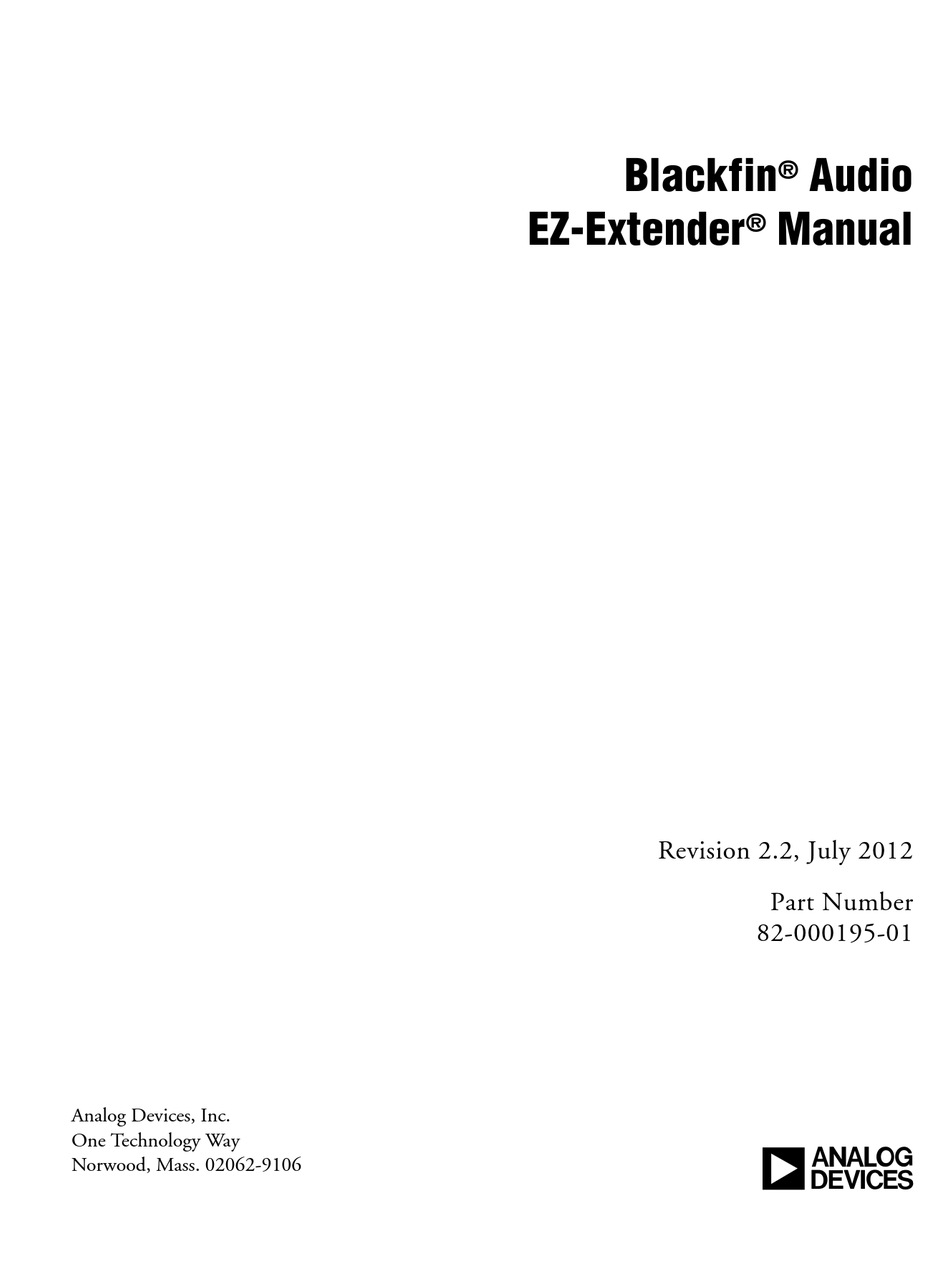

Blackfin
Audio
®
EZ-Extender
Manual
®
Revision 2.2, July 2012
Part Number
82-000195-01
Analog Devices, Inc.
One Technology Way
a
Norwood, Mass. 02062-9106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blackfin Audio EZ-Extender and is the answer not in the manual?

Questions and answers

Related Manuals for Analog Devices Blackfin Audio EZ-Extender

Summary of Contents for Analog Devices Blackfin Audio EZ-Extender

  • Page 1 Blackfin Audio ® EZ-Extender Manual ® Revision 2.2, July 2012 Part Number 82-000195-01 Analog Devices, Inc. One Technology Way Norwood, Mass. 02062-9106...
  • Page 2 Analog Devices, Inc. Printed in the USA. Disclaimer Analog Devices, Inc. reserves the right to change this product without prior notice. Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use;...

  • Page 3: Regulatory Compliance

    Regulatory Compliance The Blackfin Audio EZ-Extender is designed to be used solely in a labora- tory environment. The board is not intended for use as a consumer end product or as a portion of a consumer end product. The board is an open system design which does not include a shielded enclosure and therefore may cause interference to other electrical devices in close proximity.

  • Page 5: Table Of Contents

    What’s New in This Manual ............x Technical Support ................. xi Supported Products ..............xii Product Information ..............xii Analog Devices Web Site ............xii EngineerZone ................ xiii Related Documents ..............xiv BLACKFIN AUDIO EZ-EXTENDER INTERFACES Audio EZ-Extender Setup ............. 1-1 Analog Audio Interface ..............
  • Page 6 EZ-KIT Lite SPORT1 Enable Jumper (JP1.5/6) ...... 2-6 SPORT Select Jumper (JP1.7/8) ..........2-6 AD1938 MCLK Source Jumper (JP2) ........2-6 SPDIF Loopback Jumper (JP4) ..........2-7 Analog Input Gain Switches (SW1–4) ........2-7 AUDIO EZ-EXTENDER BILL OF MATERIALS AUDIO EZ-EXTENDER SCHEMATIC INDEX Blackfin Audio EZ-Extender Manual...

  • Page 7: Preface

    • Load, run, step, halt, and set breakpoints in application programs • Read and write data and program memory • Read and write core and peripheral registers • Plot memory To learn more about Analog Devices development software, go to http://www.analog.com/processors/tools Blackfin Audio EZ-Extender Manual...

  • Page 8: Product Overview

    Product Overview Product Overview The Blackfin Audio EZ-Extender is a separately sold daughter board that plugs onto the expansion interface of the ADSP-BF533, ADSP-BF537, or ADSP-BF561 EZ-KIT Lite evaluation system. The daughter board aids the design and prototyping phases of the ADSP-BF533, ADSP-BF537, and ADSP-BF561 processor targeted applications.

  • Page 9: Purpose Of This Manual

    Example programs are available to demonstrate capabilities of the Blackfin Audio EZ-Extender board. Purpose of This Manual The Blackfin Audio EZ-Extender Manual describes operation and configu- ration of the extender board components. A schematic and a bill of materials are provided as a reference guide for future Blackfin processor board designs.

  • Page 10: Manual Contents

    Appendix B is part of the online help. What’s New in This Manual This is revision 2.2 of the Blackfin Audio EZ-Extender Manual. The man- ual has been updated to include CCES information. In addition, modifications and corrections based on errata reports against the previous manual revision have been made.

  • Page 11: Technical Support

    Preface Technical Support You can reach Analog Devices processors and DSP technical support in the following ways: • Post your questions in the processors and DSP support community ® at EngineerZone http://ez.analog.com/community/dsp • Submit your questions to technical support directly at: http://www.analog.com/support...

  • Page 12: Supported Products

    Three Technology Way P.O. Box 9106 Norwood, MA 02062-9106 Supported Products The Blackfin Audio EZ-Extender is designed as an extender board to the ADSP-BF533, ADSP-BF537, and ADSP-BF561 EZ-KIT Lite evaluation systems. Product Information Product information can be obtained from the Analog Devices Web site and the online help.

  • Page 13: Engineerzone

    Preface Also note, is a free feature of the Analog Devices Web site that MyAnalog allows customization of a Web page to display only the latest information about products you are interested in. You can choose to receive weekly e-mail notifications containing updates to the Web pages that meet your interests, including documentation errata against all manuals.

  • Page 14: Related Documents

    • ADSP-BF533 Blackfin Processor Hardware Description of the internal processor architec- Reference ture and all register functions • ADSP-BF537 Blackfin Processor Hardware Reference • ADSP-BF561 Blackfin Processor Hardware Reference Blackfin Processor Programming Reference Description of all allowed processor assembly instructions Blackfin Audio EZ-Extender Manual...

  • Page 15: Blackfin Audio Ez-Extender Interfaces

    Audio EZ-Extender Setup It is very important to set up all components of the system containing the Blackfin Audio EZ-Extender, then apply power to the system. The follow- ing procedure is recommended for the correct setup. Blackfin Audio EZ-Extender Manual...

  • Page 16: Analog Audio Interface

    Jumpers and Switches” on page 2-4. Analog Audio Interface For analog audio applications, the Blackfin Audio EZ-Extender uses two AD1938 multichannel 192 kHz audio codecs. The AD1938 is a high-performance, single-chip codec chip that provides four analog-to-digital converters (ADCs) with differential inputs and eight digital-to-analog converters (DACs) with single-ended outputs.
  • Page 17 Blackfin Audio EZ-Extender Interfaces • At a 48 kHz sample rate, TDM mode allows up to 16 channels of data to be sent from each chip in each direction. Each chip uses four of the 16 input channels and eight of the 16 output channels.

  • Page 18: Digital Audio Interface

    On the Blackfin Audio EZ-Extender, the analog input and outputs are not used. The digital interface can operate at up to a 200 kHz sample rate.
  • Page 19 Blackfin Audio EZ-Extender Interfaces supplies an auxiliary serial port for connecting to other devices. The con- figuration registers are configured using an SPI port connected to the processor. The ADAV801 chip provides two internal PLLs, which can produce all necessary internal clocks for the chip interfaces. An external 27 MHz oscillator is used as a clock source for the PLLs.
  • Page 20 Digital Audio Interface Blackfin Audio EZ-Extender Manual...

  • Page 21: Audio Ez-Extender Hardware Reference

    “System Architecture” on page 2-2 Describes the daughter board configuration and explains how the board components interface with the processor and EZ-KIT Lite. • “Configuration Jumpers and Switches” on page 2-4 Describes the configuration jumpers and switches. Blackfin Audio EZ-Extender Manual...

  • Page 22: System Architecture

    System Architecture System Architecture A block diagram of the Blackfin Audio EZ-Extender is shown in Figure 2-1. The board layout, connector and jumper locations are shown Figure 2-2 on page 2-5. The analog audio interface consists of two AD1938 audio codecs (referred to as AD1938_A and AD1938_B), which use one of the processor’s serial...
  • Page 23 Audio EZ-Extender Hardware Reference Figure 2-1. System Architecture Blackfin Audio EZ-Extender Manual...

  • Page 24: Configuration Jumpers And Switches

    All of the expansion interface signals are passed directly through the board, from the EZ-KIT Lite to another set of expansion interface connec- tors. This allows you to attach the Blackfin Audio EZ-Extender to other EZ-Extender boards. Configuration Jumpers and Switches Before using the Blackfin Audio EZ-Extender, follow the setup procedure “Audio EZ-Extender Setup”...

  • Page 25: Adsp-Bf537 Ez-Kit Lite Select Jumper (Jp1.1/2)

    Figure 2-2. Jumper Locations ADSP-BF537 EZ-KIT Lite Select Jumper (JP1.1/2) When the Audio EZ-Extender is used with the ADSP-BF537 EZ-KIT Lite, insert the jumper to route the EZ-KIT Lite SPI select signals JP1.1/2 to the corresponding codec. Blackfin Audio EZ-Extender Manual...

  • Page 26: Ez-Kit Lite Sport0 Enable Jumper (Jp1.3/4)

    AD1938 audio codec. The standard configuration connects the SYSCLK3 pin of the ADAV801 codec to by installing the jumper. Two MCLK JP2.5/6 other jumper positions, , connect to the JP2.1/2 JP2.3/4 MCLK ADAV801 codec’s pin, divided by 4 and 2 respectively. These SYSCLK1 Blackfin Audio EZ-Extender Manual...

  • Page 27: Spdif Loopback Jumper (Jp4)

    SW1.2 AIN1_R SW2.1 AIN2_L SW2.2 AIN2_R SW3.1 AIN3_L SW3.2 AIN3_R SW4.1 AIN4_L SW4.2 AIN4_R When the switch is , the gain is set to . When the switch is 1/(1.5) the gain is set to 1/(2.12) Blackfin Audio EZ-Extender Manual...
  • Page 28 Configuration Jumpers and Switches Blackfin Audio EZ-Extender Manual...
  • Page 29 RCA 4X2 CON011 J4,J7-8 SWITCH- PJRAS4X2U01X CRAFT RCA 1X1 CON012 J5-6 SWITCH- PJRAN1X1U01X CRAFT 0.05 45x2 CON018 P1-3 SAMTEC TFC-145-32-F-D .05 45X2 CON019 J1-3 SAMTEC SFC-145-T2-F-D-A 0.05 10X2 CON040 J9-10 SAMTEC SFC-110-T2-F-D-A DIP2 SWT020 SW1-4 C&K TDA02H0SB1 Blackfin Audio EZ-Extender Manual...
  • Page 30 107.0 1/10W 1% R110 DIGI-KEY 311-107CRTR-ND 0805 0.1UF 16V 10% C31,C55,C58,C76, 0603YC104KAT2A 0603 C86,C125-130, C135,C138, C140-143,C146-147, C149-150,C154, C157,C162-165, C169-171,C176-177, C179,C183-184, C189-191,C194-195, C197,C199-200, C203,C205-206, C209-210 0.01UF 16V 10% C116 0603YC103KAT2A 0603 10UF 10V C9,C134,C186,C207 PANASONIC ECJ-2FF1A106Z +80/-20% 0805 Blackfin Audio EZ-Extender Manual...
  • Page 31 R111-118,R144-151 DIGI-KEY 311-49.9KHRTR-ND 0603 604.0 1/10W 1% R1-8,R101-108 DIGI-KEY 311-604HRTR-ND 0603 10.0K 1/10W 1% R119-120,R122-123, DIGI-KEY 311-10.0KHRTR-ND 0603 R153-154 5.76K 1/10W 1% R29-30,R34-35, DIGI-KEY 311-5.76KHRTR-ND 0603 R43-44,R49-50, R61-62,R66-67, R75-76,R79-80 120PF 50V 5% 0603 C23,C26,C41,C46, 06035A121JAT2A C62,C65,C80,C82 Blackfin Audio EZ-Extender Manual...
  • Page 32 0603 562.0 1/10W 1% R125,R136 VISHAY CRCW0603562RFKEA 0603 390PF 25V 5% 0603 C136,C192 06033A391FAT2A 1800PF 50V 5% C40,C49 PANASONIC ECJ2VB1H182K 0805 5600PF 16V 5% C132,C187 0805YA562JAT2A 0805 28.0K 1/10W 1% R155,R157-158, DIGI-KEY 311-28.0KHTR-ND 0603 R161-162,R165-166, R169 Blackfin Audio EZ-Extender Manual...
  • Page 33 4.99K 1/16W 1% R9-24,R85-100, VISHAY CRCW06034K99FKEA 0603 R170,R179-185, R194-201 24.9K 1/10W 1% R126-127,R129, DIGI-KEY 311-24.9KHTR-ND 0603 R132,R134-135, R138,R140 47UF 6.3V 10% B PANASONIC EEE0JA470WR 22.6K 1/16W 1% R124,R156,R159- VISHAY CRCW060322K6FKEA 0603 160,R163-164, R167-168 GREEN LED001 LED1 PANASONIC LN1361CTR Blackfin Audio EZ-Extender Manual...
  • Page 34 Blackfin Audio EZ-Extender Manual...
  • Page 35 Blackfin Audio EZ-Extender Schematic SPDIF_IN SPDIF_OUT ANALOG_OUT ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD ANALOG_OUT RIGHT = RED BLACKFIN AUDIO EZ-EXTENDER Title LEFT = WHITE TITLE Size Board No. A0195-2005 1.2C Date 5-23-2007_11:47 Sheet...
  • Page 36 CON019 3.3V ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES C207 C206 C205 PH: 1-800-ANALOGD 10UF 0.1UF 10UF 0.1UF 0805 0603 0805 0603 BLACKFIN AUDIO EZ-EXTENDER Title EXPANSION INTERFACE (1 + 2) Size Board No. A0195-2005 1.2C Date 5-23-2007_11:47 Sheet...
  • Page 37 0603 IDC1X1 IDC1X1 ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES C127 C134 C130 AGND PH: 1-800-ANALOGD 10UF 0.1UF 10UF 0.1UF 0805 0603 0805 0603 BLACKFIN AUDIO EZ-EXTENDER Title EXPANSION INTERFACE (3) Size Board No. A0195-2005 1.2C Date 5-23-2007_11:47 Sheet...
  • Page 38 Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD C126 C154 C176 C142 C189 C165 0.1UF 0.1UF 0.1UF 0.1UF 0.1UF 0.1UF ~A/B 0603 0603 0603 0603 0603 0603 BLACKFIN AUDIO EZ-EXTENDER Title SN74LVC257APWR TSSOP16 CONFIG PI3B3257 Size Board No. A0195-2005 1.2C Date 5-23-2007_11:47 Sheet...
  • Page 39 10UF 0.1UF 10UF 0.1UF 10UF 0603 0805 0603 0603 0805 0805 0603 0805 0603 0805 0603 0805 0603 0805 0603 0805 0603 0805 BLACKFIN AUDIO EZ-EXTENDER Title ADAV801 - DIGITAL AUDIO Size Board No. A0195-2005 1.2C AGND2 Date 5-23-2007_11:47 Sheet...
  • Page 40 0.1UF 0.1UF 0.1UF 0.1UF 0603 0603 0603 0603 0603 0603 0603 0603 0603 0603 0603 0603 0603 BLACKFIN AUDIO EZ-EXTENDER Title 74LVC74 AD1938 - ANALOG AUDIO AD1938 A AD1938 B Size Board No. A0195-2005 1.2C AGND AGND Date 5-23-2007_11:47 Sheet...
  • Page 41 TSSOP14 ANALOG INPUT SIGNAL SPECS CAN BE FOUND IN THE MANUAL A5V_AMP ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD C197 0.1UF BLACKFIN AUDIO EZ-EXTENDER Title 0603 ANALOG IN 1 Size Board No. A0195-2005 1.2C AGND Date 5-23-2007_11:47...
  • Page 42 TSSOP14 ANALOG INPUT SIGNAL SPECS CAN BE FOUND IN THE MANUAL A5V_AMP ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD C177 0.1UF BLACKFIN AUDIO EZ-EXTENDER Title 0603 ANALOG IN 2 Size Board No. A0195-2005 1.2C AGND Date 5-23-2007_11:47...
  • Page 43 TSSOP14 ANALOG INPUT SIGNAL SPECS CAN BE FOUND IN THE MANUAL A5V_AMP ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD C157 0.1UF BLACKFIN AUDIO EZ-EXTENDER Title 0603 ANALOG IN 3 Size Board No. A0195-2005 1.2C AGND Date 5-23-2007_11:47...
  • Page 44 TSSOP14 ANALOG INPUT SIGNAL SPECS CAN BE FOUND IN THE MANUAL A5V_AMP ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD C141 0.1UF BLACKFIN AUDIO EZ-EXTENDER Title 0603 ANALOG IN 4 Size Board No. A0195-2005 1.2C AGND Date 5-23-2007_11:47...
  • Page 45 ANALOG OUTPUT SIGNAL SPECS CAN BE FOUND IN THE MANUAL AGND AGND A5V_AMP A5V_AMP ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD C209 C210 0.1UF 0.1UF BLACKFIN AUDIO EZ-EXTENDER Title 0603 0603 ANALOG OUT 1 Size Board No. A0195-2005 1.2C AGND AGND Date 5-23-2007_11:47 Sheet...
  • Page 46 ANALOG OUTPUT SIGNAL SPECS CAN BE FOUND IN THE MANUAL AGND AGND A5V_AMP A5V_AMP ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD C129 C128 0.1UF 0.1UF BLACKFIN AUDIO EZ-EXTENDER Title 0603 0603 ANALOG OUT 2 Size Board No. A0195-2005 1.2C AGND AGND Date 5-23-2007_11:47 Sheet...
  • Page 47 (Blackfin Audio EZ-Extender), I2S mode, 1-4, input/output digital streams, clock frequencies, 1-4, interfaces, See analog audio interface, digital configuration, of Blackfin Audio audio interface EZ-Extender, internal clocks, connectors, diagram of locations, Blackfin Audio EZ-Extender Manual...
  • Page 48 Index jumpers sample rates, 1-3, 1-4, 2-2, diagram of locations, schematic, of Blackfin Audio EZ-Extender, JP1.1/2 jumper (ADSP-BF537 EZ-KIT Lite select), serial peripheral interface (SPI), 1-2, 1-5, JP1.3/4 (EZ-KIT Lite SPORT0 enable), 2-4, serial ports (SPORTs), 1-2, 1-3, JP1.5/6 (EZ-KIT Lite SPORT1 enable),...
