EtherWAN EL2211 Quick Start Manual

This quick start guide describes how to install and use the Gigabit Ethernet media converter. The converter introduced here provides one
channel media conversion solution.

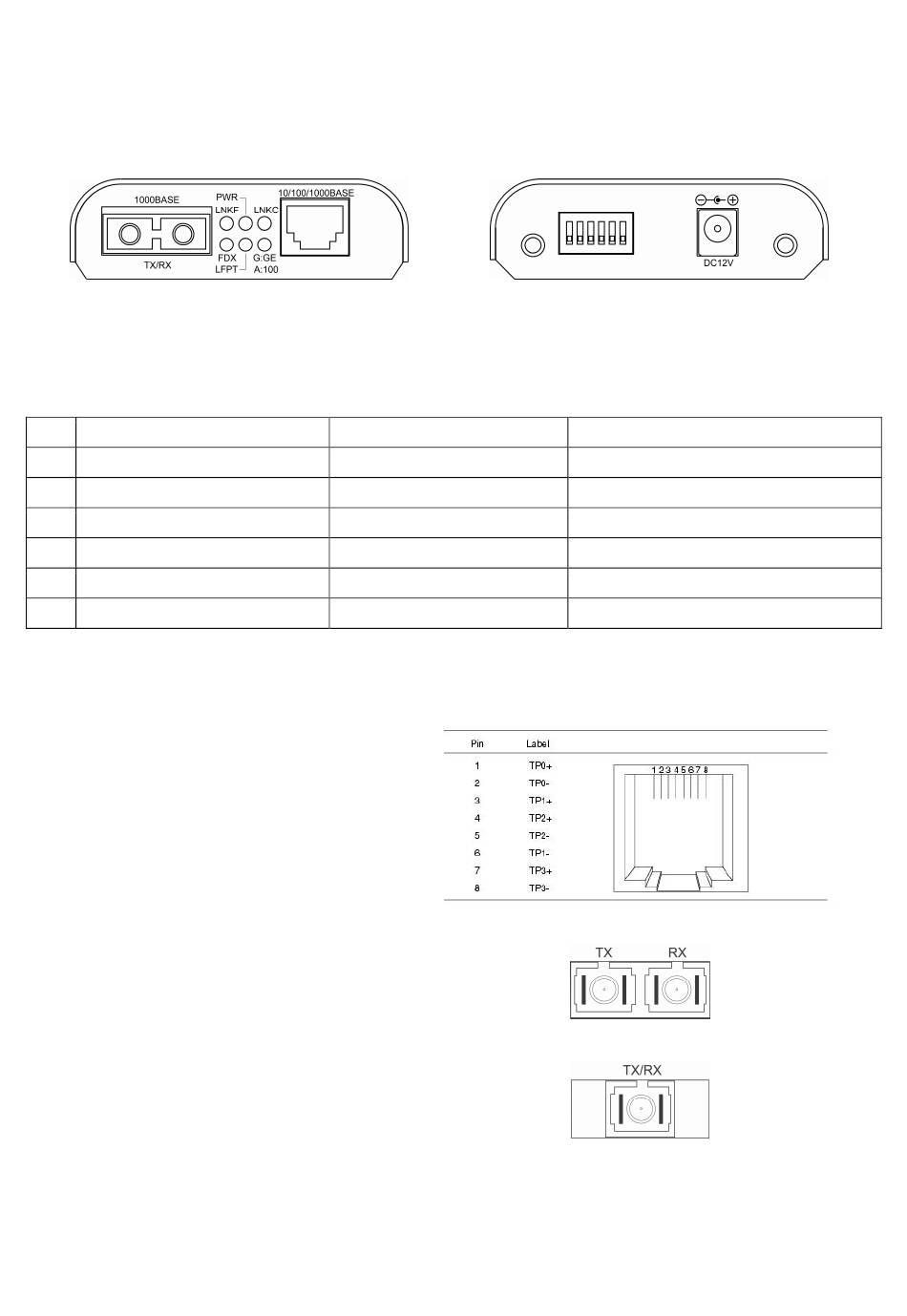

Physical Description

Product Overview

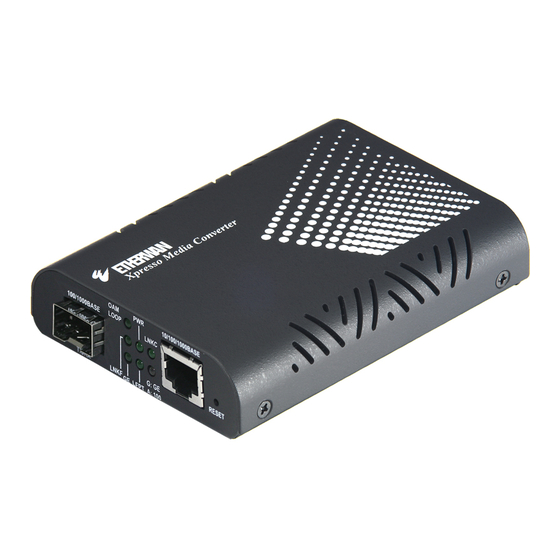

This Gigabit Ethernet media converter is a plug-and-play device. Connect the supplied AC to DC power adaptor to the receptacle on the rear
panel of the Gigabit Ethernet media converter, and then attach the plug into a standard AC outlet.

DIP Switch

No. Down
1 Disable LFPT
2 Enable Auto-Negotiation for TX port
3 TX port Force mode: Full-duplex
4 TX port Force mode: 100Mbps
5 Function reserved
6 Function reserved
<Note> Power must be off/on after re-setting LFPT function.
The 10/100/1000Base-TX and 1000Base-SX/LX/BX Connectors
The 10/100/1000Base-TX Connection
The following lists the pinouts of 10/100/1000Base-TX port.
The 1000Base-SX/LX Connection
The fiber port pinouts
The Tx (transmit) port of device I is connected to the Rx
(receive) port of device II, and the Rx (receive) port of
device I to the Tx (transmit) port of device II.
The WDM 1000Base-BX Connection
The fiber port pinouts
Only one optical fiber is required to transmit and receive
data.
Gigabit Ethernet Media Converter
Up
Enable LFPT
Enable Force mode for TX port
TX port Force mode: Half-duplex
TX port Force mode: 10Mbps
Function reserved
Function reserved
1
LFPT: Link-Fault-Pass-Through function
V1
