EL2321

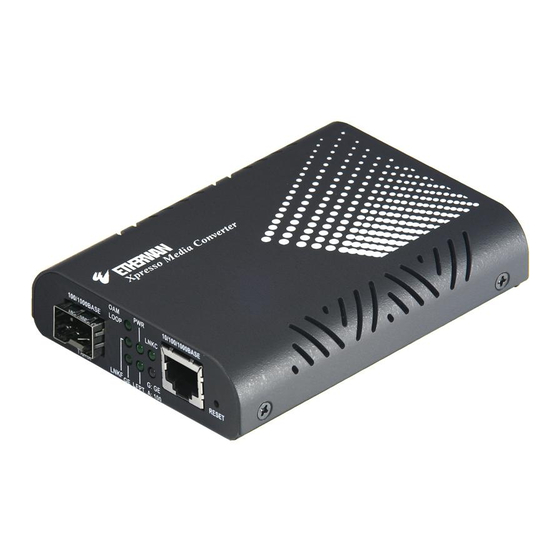

This quick start guide describes how to install and use the OAM Managed 10/100/1000BASE-TX to 100/1000BASE-FX Dual Rate Media
Converter. The converter introduced here provides one channel media conversion solution.

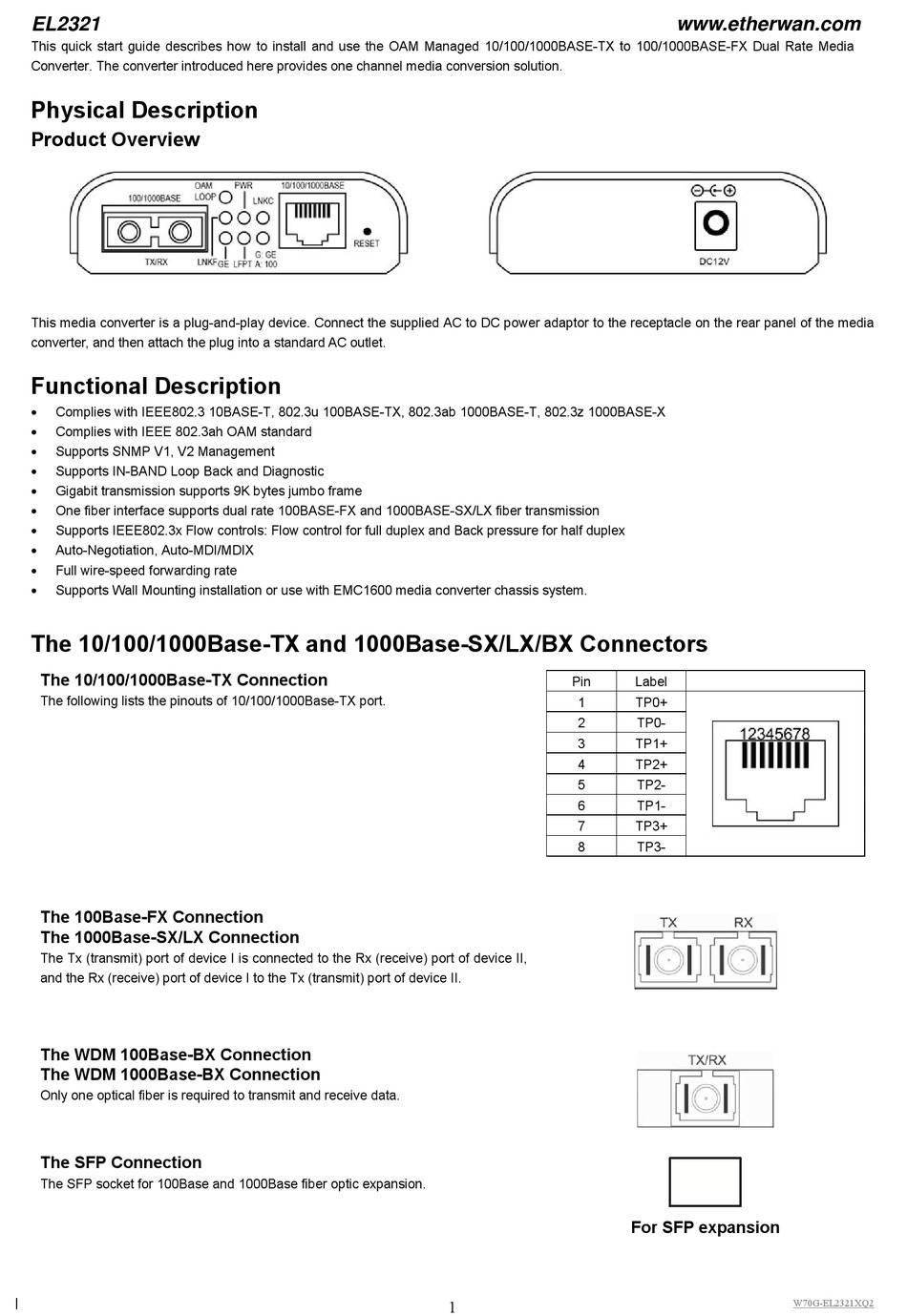

Physical Description

Product Overview

This media converter is a plug-and-play device. Connect the supplied AC to DC power adaptor to the receptacle on the rear panel of the media
converter, and then attach the plug into a standard AC outlet.

Functional Description


Complies with IEEE802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X

Complies with IEEE 802.3ah OAM standard

Supports SNMP V1, V2 Management

Supports IN-BAND Loop Back and Diagnostic

Gigabit transmission supports 9K bytes jumbo frame

One fiber interface supports dual rate 100BASE-FX and 1000BASE-SX/LX fiber transmission

Supports IEEE802.3x Flow controls: Flow control for full duplex and Back pressure for half duplex

Auto-Negotiation, Auto-MDI/MDIX

Full wire-speed forwarding rate

Supports Wall Mounting installation or use with EMC1600 media converter chassis system.
The 10/100/1000Base-TX and 1000Base-SX/LX/BX Connectors
The 10/100/1000Base-TX Connection
The following lists the pinouts of 10/100/1000Base-TX port.
The 100Base-FX Connection
The 1000Base-SX/LX Connection
The Tx (transmit) port of device I is connected to the Rx (receive) port of device II,
and the Rx (receive) port of device I to the Tx (transmit) port of device II.
The WDM 100Base-BX Connection
The WDM 1000Base-BX Connection
Only one optical fiber is required to transmit and receive data.
The SFP Connection
The SFP socket for 100Base and 1000Base fiber optic expansion.
Pin
1
2
3
4
5
6
7
8
1
www.etherwan.com
Label
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
For SFP expansion
W70G-EL2321XQ2
