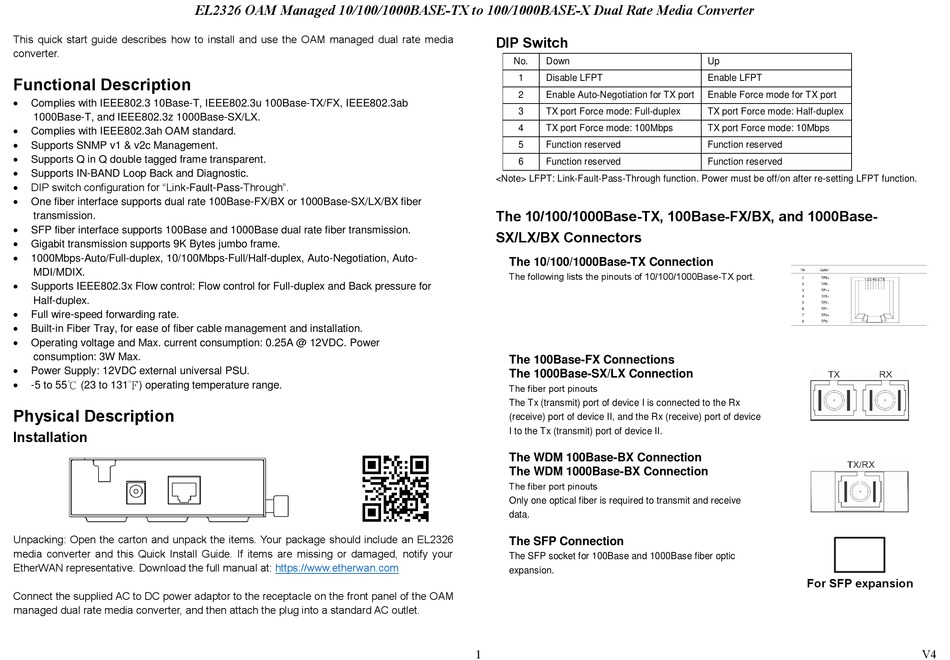

EtherWAN EL2326 Series Quick Start Manual

This quick start guide describes how to install and use the OAM managed dual rate media
converter.

Functional Description


Complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab
1000Base-T, and IEEE802.3z 1000Base-SX/LX.

Complies with IEEE802.3ah OAM standard.

Supports SNMP v1 & v2c Management.

Supports Q in Q double tagged frame transparent.

Supports IN-BAND Loop Back and Diagnostic.

DIP switch configuration for "Link-Fault-Pass-Through".

One fiber interface supports dual rate 100Base-FX/BX or 1000Base-SX/LX/BX fiber
transmission.

SFP fiber interface supports 100Base and 1000Base dual rate fiber transmission.

Gigabit transmission supports 9K Bytes jumbo frame.

1000Mbps-Auto/Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-
MDI/MDIX.

Supports IEEE802.3x Flow control: Flow control for Full-duplex and Back pressure for
Half-duplex.

Full wire-speed forwarding rate.

Built-in Fiber Tray, for ease of fiber cable management and installation.

Operating voltage and Max. current consumption: 0.25A @ 12VDC. Power
consumption: 3W Max.

Power Supply: 12VDC external universal PSU.

-5 to 55℃ (23 to 131℉) operating temperature range.

Physical Description

Installation
Unpacking: Open the carton and unpack the items. Your package should include an EL2326
media converter and this Quick Install Guide. If items are missing or damaged, notify your
EtherWAN representative. Download the full manual at:
Connect the supplied AC to DC power adaptor to the receptacle on the front panel of the OAM
managed dual rate media converter, and then attach the plug into a standard AC outlet.
EL2326 OAM Managed 10/100/1000BASE-TX to 100/1000BASE-X Dual Rate Media Converter
https://www.etherwan.com

DIP Switch

No. Down
1 Disable LFPT
2 Enable Auto-Negotiation for TX port
3 TX port Force mode: Full-duplex
4 TX port Force mode: 100Mbps
5 Function reserved
6 Function reserved
<Note> LFPT: Link-Fault-Pass-Through function. Power must be off/on after re-setting LFPT function.
The 10/100/1000Base-TX, 100Base-FX/BX, and 1000Base-
SX/LX/BX Connectors
The 10/100/1000Base-TX Connection
The following lists the pinouts of 10/100/1000Base-TX port.
The 100Base-FX Connections
The 1000Base-SX/LX Connection
The fiber port pinouts
The Tx (transmit) port of device I is connected to the Rx
(receive) port of device II, and the Rx (receive) port of device
I to the Tx (transmit) port of device II.
The WDM 100Base-BX Connection
The WDM 1000Base-BX Connection
The fiber port pinouts
Only one optical fiber is required to transmit and receive
data.
The SFP Connection
The SFP socket for 100Base and 1000Base fiber optic
expansion.
1
Up
Enable LFPT
Enable Force mode for TX port
TX port Force mode: Half-duplex
TX port Force mode: 10Mbps
Function reserved
Function reserved
For SFP expansion
V4
