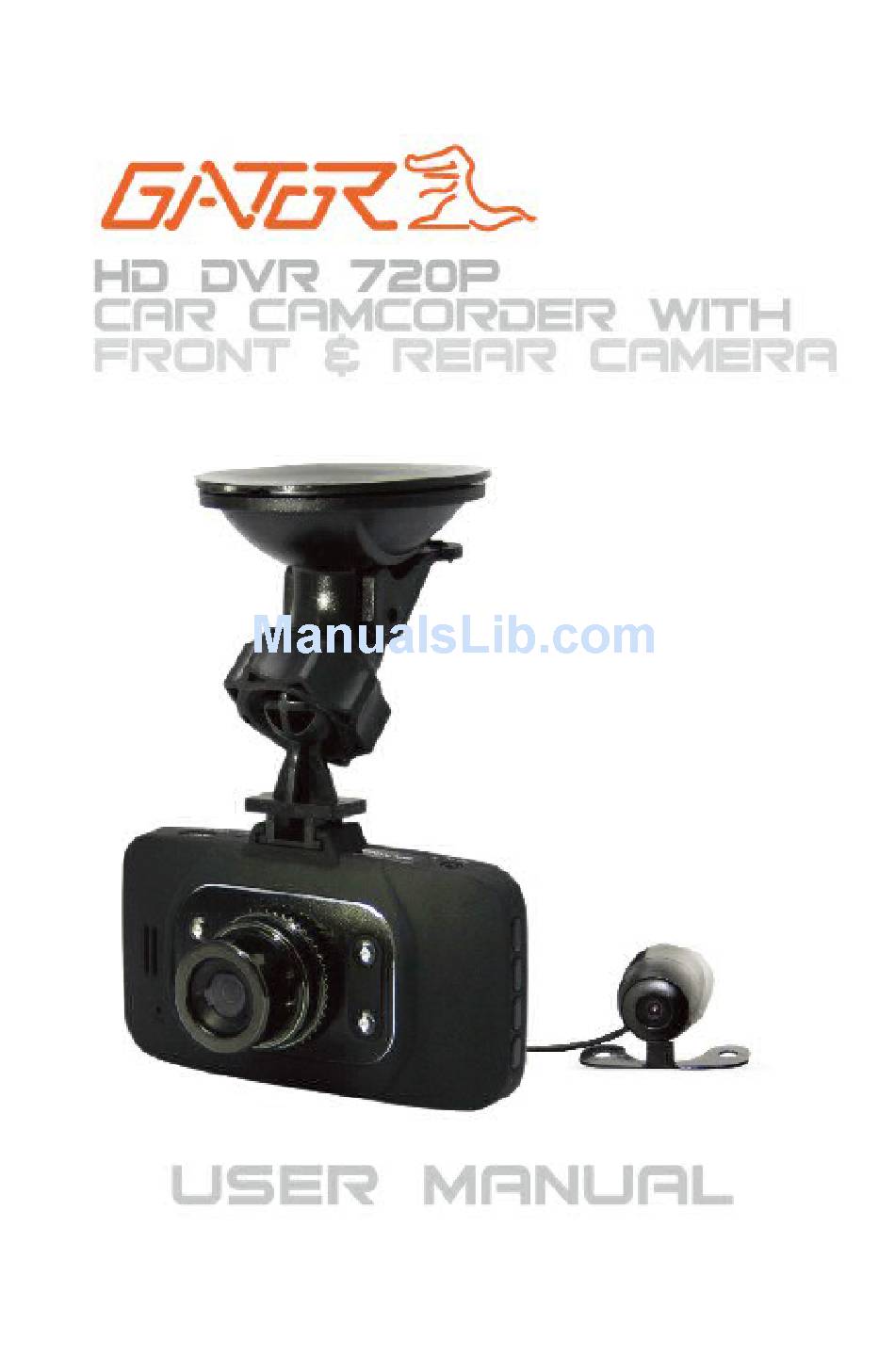

Gator HDVR245H User Manual

Gator HDVR245H User Manual

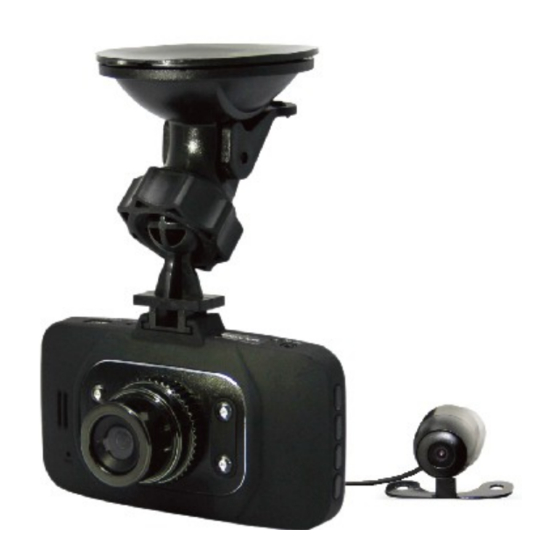

Hd dvr 720p car camcorder with front & rear camera

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDVR245H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gator HDVR245H

  • Page 2: Product Overview

    Product Overview Thank you for purchasing this Gator Car Camcorder. This product is designed by using the latest technology, with 2 separate, dual lens, digital high definition cameras, the recording resolution is up to 1920 * 1080P, and can also can shoot 3 mega pixel still pictures.
  • Page 3 Product structure 1. Power Key 2.TF SLOT 3. Rec/OK Key 4.AV-in 5. Reset 6.USB/AV OUT port 7. LCD 8.Menu Button 9. Up Key 10.Down Key 11. Mode Key 12.MIC 13. IR Light 14.HD Camera...
  • Page 4 Key Functions 1.Power Key: Long press to execute on/off  operation , short press for IR lights to be on/off. 2.TF Slot: Memory card slot.  3.Rec/OK : In record mode, press this key to start /  stop shooting; for selection confirmation in the menu;...
  • Page 5 through the option, in playback mode to browse the pictures/video ; Operation Guide  Please charge you device, using a computer or USB charger, for 4 hours before operation. To maintain a good charge on the battery it is advised to recharge once a week if you only travel short distances during the week Connecting with 12V/24V car charger ...
  • Page 6 your device, any other charger might damage the device. Use of TF card  1. Make sure the TF card is inserted in the correct direction, otherwise it may damage the device or TF card. 2. Please use high-speed TF card complying with SDHC specifications.
  • Page 7 menu then unplug/replug camera. Pressing 9. Up Key will toggle between camera modes (main camera+ small rear, rear camera only or main camera only.) this does not affect the recording as it will continue to record both images.) As there is more power being consumed it is advised you connect the car charger for use.
  • Page 8 Menu Selection Resolution VGA/720P Loop Recording 1min/2 min/5 min/off Format Yes/No White Balance Automatic/sunny/fluores cence/cloudy/incandesc ent light -3/-2/-1/0/1/2/3 Color Null (Standard) / Black and white / negative / ancient (sepia) /light blue Motion Detection* Off/On Time Stamp Off/On Audio Off/On Start recording when Off/On turn on (auto record)
  • Page 9 Optional Simplified Chinese/ Language Traditional Chinese/ English/ German/ Japanese/ French/ Korean/ Italian/ Russian Frequency 50Hz/60Hz Fill Light Off/Auto/On Backlight Time 3 min/Off Auto Off 3 min/Off Key Tone Off/On G_SENSOR Off/Low/Mid/High TV Output PAL/NTSC Date Setting Date/Time setting Version Check current software vesion Default Settings Yes/No...
  • Page 10 Product Parameters Sensor 1.2 M CMOS sensor, 1/4 inch light-sensing surface area Lens 4pcs full glass fixed focus lens, aperture 2.0, focal length 3.4 mm LCD Size 2.7 inch TFT LCD Built-in Photo JPG file format: 1.3 million pixels Video H.264 compressed format 720P/VGA Audio...
  • Page 11 Battery 300mAh 3.7V lithium ion polymer rechargeable battery * Please note: This unit can be set to loop record or motion sensor recording but not both at the same time. If motion sensor recording is selected it will record until the TF Card is full Under normal operating conditions, if the product presents a problem, please refer to the following methods to solve:...
  • Page 12 with SDHC compatible, there will be the mark of on the TF card. And please format the card before use. 3. There is “ wrong file ” shown on LCD when playback the photo/video because of TF card storage error, please format your TF card. 4.
  • Page 13: Technical Assistance

    Technical Assistance If you need assistance setng up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST Please retain this user guide for future reference.
