Summary of Contents for Gator HDDVR253
- Page 2 Thank you for purchasing our Gator DVR HDDVR253. This instruction book will explain how to use your new DVR, it also supplies you detailed information, operating and technical specifications. Please read this book carefully before first use and please kindly keep this book Features 1.
-

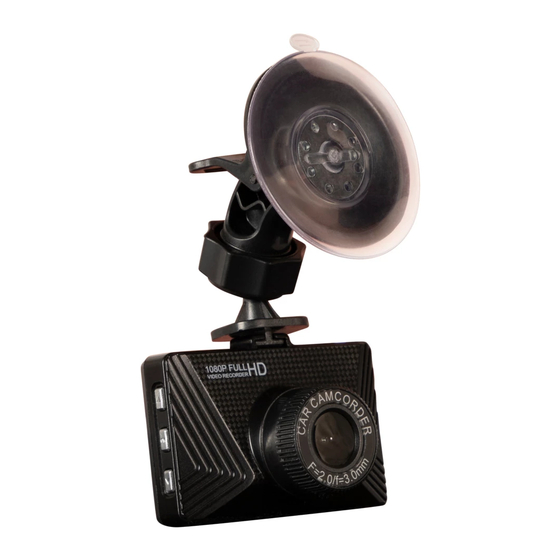

Page 3: Product View And Structure
Structure TFT Display Screen 2.MENU Button 3.Power Button 4.MODE Button 5.DOWN Button 6.OK Button Up button 8.Take Picture and Video Button USB interface 10.Bracket Interface Video Output Interface 12.The Reset Hole HDMI Delivery outlet 14.TF Slot Infrared Lamp 16.HD Camera Work indicating lamp 18.Loudspeaker... - Page 4 Specification LCD Size 2.7 inch TFT Camera Lens 120 degree HD and ultra-wide-angle lens Video resolution 1280*720P Video Format Picture Format Memory Card Format Micro SD Card（2G-32G） Language Options Simplified Chinese, Traditional Chinese, English, Russian, French, German, Portuguese, Italia, Spanish, Japanese Frequency 50Hz/60Hz USB Interface...
-
Page 5: System Menu
7. When you are recording or taking picture, press “UP” or ”DOWN” button to change the size of “EV” 8.Video output :This device has 2 video output modes, CVBS (composite video) and HDMI, choose the line to connect the screen, then the drive recorder will switch to the video output mode. - Page 6 change the data, press “Menu” button to quit. Shutdown Turn off ,2/5/10 Second automatic Keypad tone Turn off , Turn on Language English ,German ,French ,Spanish ,Italian ,Portuguese ,Traditional Setting Chinese ,Simplified Chinese ,Russian ,Japanese Infrared Turn on , Turn off Format SD card：Cancel, Confirm Default Setting Cancel ,Confirm...
