Summary of Contents for Gator HDDVR550

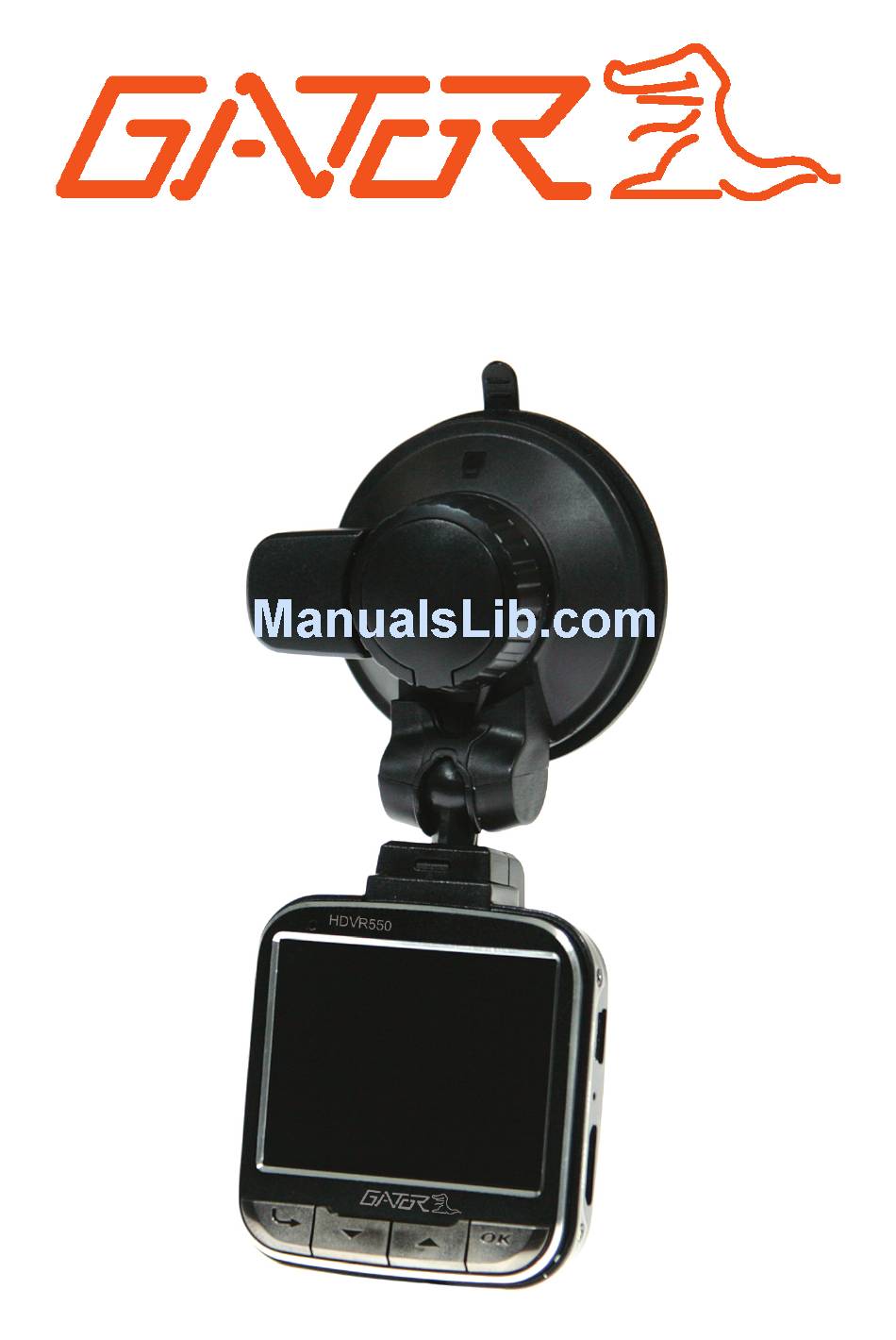

  • Page 1 USER GUIDE HDDVR550...

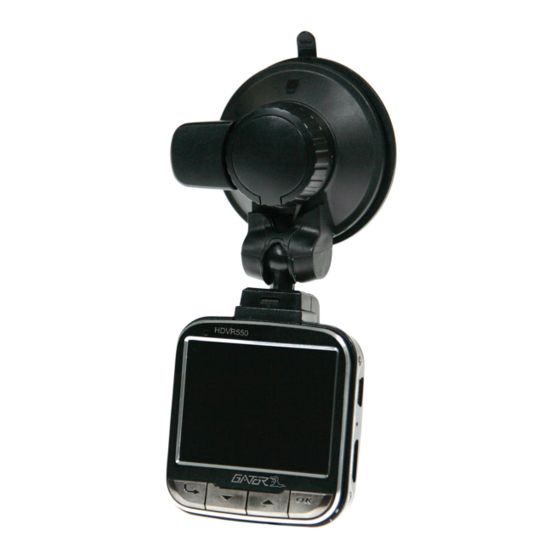

  • Page 2 Introduction Thank you for purchasing the Gator HD Digital Video Recorder 550. This product is designed to provide high definition recording of your trips for security and evidence in the case of an incident. Being portable, this convenient and durable multi-vehicle driving recorder can be used in a variety of situations for video recording.
  • Page 3 Package Components: Mounting HD DVR 550 Bracket with Charger USB to Mini USB Car Charger HD DVR 550 User Guide...
  • Page 4 Product Structure: 1) AV Out 9) Down Button 2) Reset Button 10) Up Button 3) Power Button 11) OK Button 4) Micro SD Slot 12) USB Port 5) Mode Button 13) MIC 6) Indicator LED 14) HDMI Out 7) LCD 15) HD Camera 8) Menu Button...
  • Page 5 Button Instructions Menu Button: Pressing this button once will open the menu. Pressing the menu button again while in the menu will change to the second settings tab. Pressing the menu button while recording will activate the file protection (A key will be present on the top of the screen if activated). Up Button: The up button is used while in the menu to move the highlighted area for selecting.
  • Page 6 Battery Charging Indication Light: After connecting with USB, the indication lamp will light up red for charging, and light off when the battery is at full power. MIC: Audio receiver for video recording. Extra Functions G-sensor Function: The G-sensor function activates in the case of a car accident by determining the gravitational acceleration (1g = 9.8 meters/second^2).
  • Page 7 Basic Instructions for video and photo operation Powering on and off the device: To turn on the DVR press the power key once, the red indication lamp will be light up if it is connected to a power source. To turn it off, hold down the power button and the device will turn off. WARNING: The device will automatically turn off once the battery hits critically low levels.
  • Page 8 Menu setting features explained Before we begin, firstly there are two things that must be done before using the DVR. Go into the first menu (Video menu) and scroll down using the up/down arrow buttons on the bottom of the DVR until you get to the ‘Motion Detection’ setting, now highlighted in blue. When setting is highlighted, press the OK button, on the bottom of your DVR, and select motion detection to ‘OFF’.
  • Page 9 Parking Sensitivity: You can adjust the sensitivity of the Monitor Parking function by setting it to Low, Medium or High. The default setting is at Medium. Press the menu button again until you see the following Spanner and screwdriver. (SETUP MENU) Date/Time: This feature will allow you to change the year, month, day, time and date format using the up/down arrow buttons and using the OK button to move from year, month then day etc.
  • Page 10 Product Specification Product Feature HD Camera, HD Recording Built-in(Used to save the file in case of an emergency, and cannot be G-sensor deleted if the collision of vehicles happen) LCD Size 2.0” TFT LCD Lens 170 Degree Ultra Wide Angle English/French/Spanish/Portuguese/German/Italian/Simplified Language Chinese/Traditional Chinese/Russian/Japanese...
  • Page 11 Frequently Asked Questions Under normal operating conditions, if there are problems with the device, please refer to the following methods to resolve. Cannot take pictures or record video? Please check whether there is enough space on the micro SD card or internal storage. Stopping automatically while recording Due to the high amount of HD video data being recorded, please use a high speed micro SD card.
  • Page 12: Technical Assistance

    Technical Assistance If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST Please retain this user guide for future reference.
